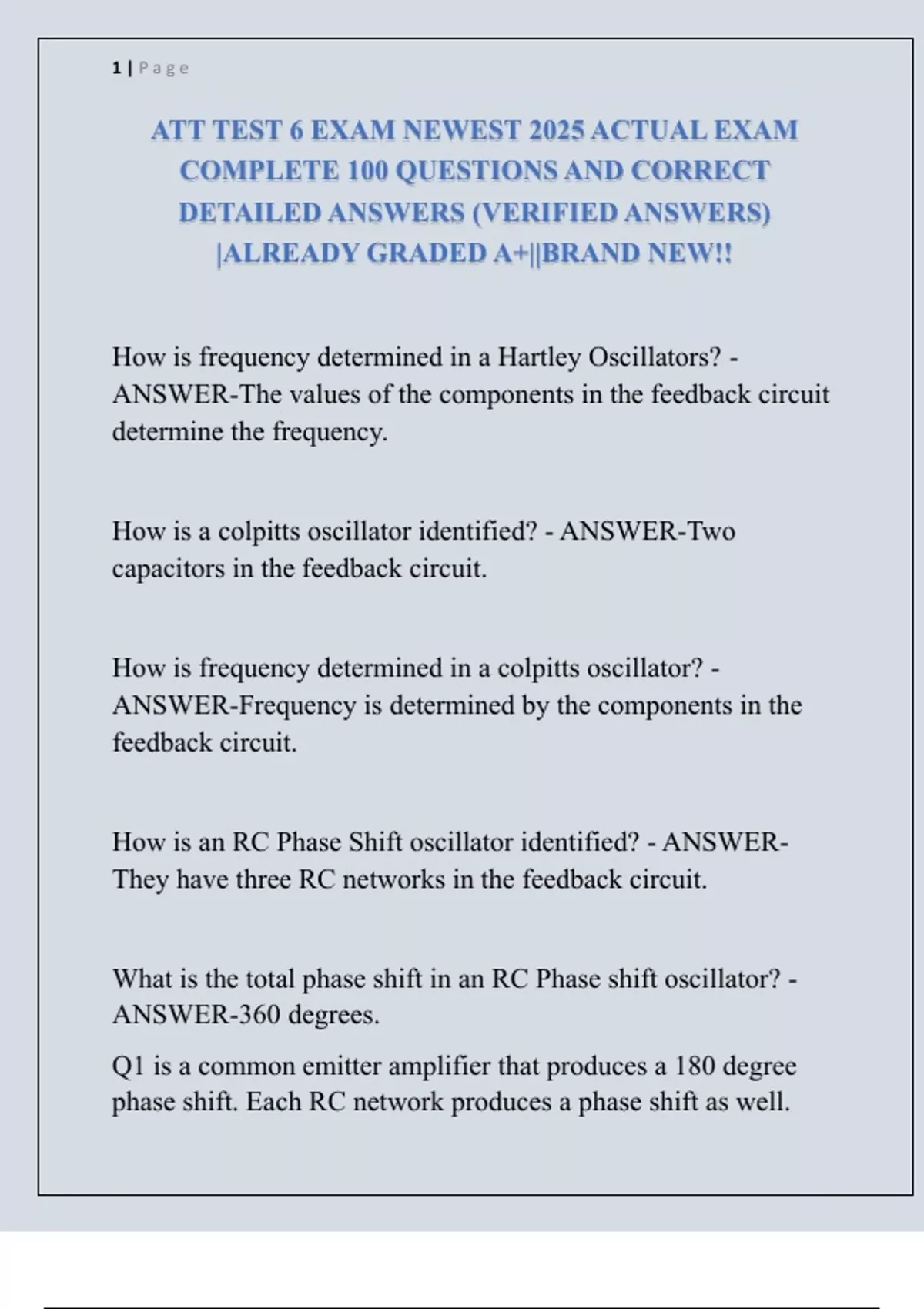

ATT TEST 6 EXAM NEWEST 2025 ACTUAL EXAM
COMPLETE 100 QUESTIONS AND CORRECT
DETAILED ANSWERS (VERIFIED ANSWERS)
|ALREADY GRADED A+||BRAND NEW!!


How is frequency determined in a Hartley Oscillators? -
ANSWER-The values of the components in the feedback circuit
determine the frequency.


How is a colpitts oscillator identified? - ANSWER-Two
capacitors in the feedback circuit.


How is frequency determined in a colpitts oscillator? -
ANSWER-Frequency is determined by the components in the
feedback circuit.


How is an RC Phase Shift oscillator identified? - ANSWER-
They have three RC networks in the feedback circuit.


What is the total phase shift in an RC Phase shift oscillator? -
ANSWER-360 degrees.
Q1 is a common emitter amplifier that produces a 180 degree
phase shift. Each RC network produces a phase shift as well.

, 2|Page




How is frequency determined with the sawtooth oscillator? -
ANSWER-The frequency of the output is determined by the
frequency of the input.


What is the purpose of a blocking oscillator? - ANSWER-They
change DC into short, rectangular pulses that can be used as
timing pulses to trigger other circuits.


Blocking Oscillator - ANSWER-Any oscillator that cuts off its
own oscillations at a predetermined time.


Transconductance (gm) - ANSWER-The amount of control that
the input voltage has over the output current.


Gm= Ioutput/Einput


Name the 3 multivibrators whose purpose is to convert DC
Energy to square wave energy. - ANSWER-1. Astable
Multivibrator
2. Monostable Multivibrator
3. Bistable Multivibrator
