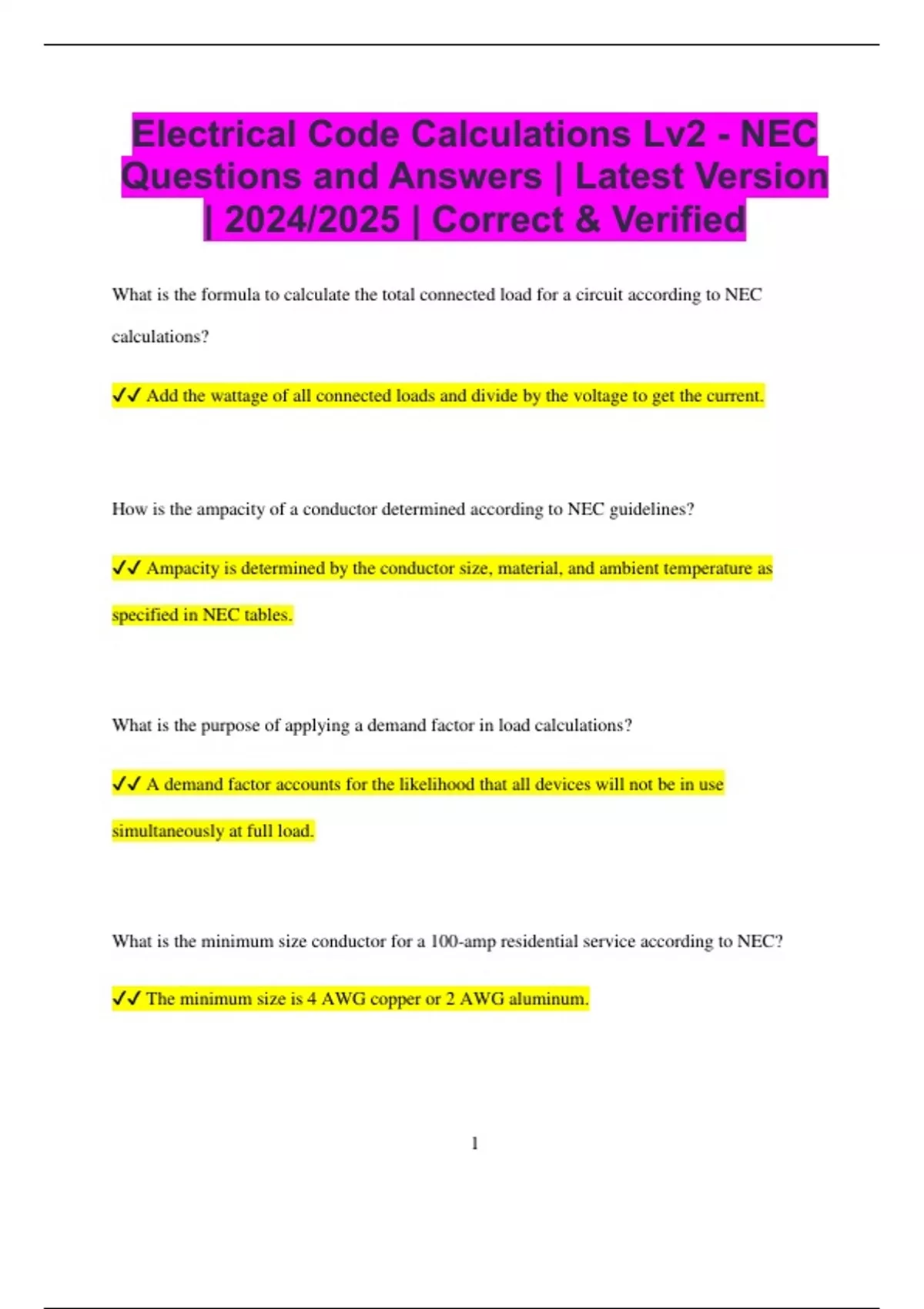

Electrical Code Calculations Lv2 - NEC Questions and Answers | Latest Version | 2024/2025 | Correct & Verified What is the formula to calculate the total connected load for a circuit according to NEC calculations? Add the wattage of all connected loads and divide by the voltage to get the current. How is the ampacity of a conductor determined according to NEC guidelines? Ampacity is determined by the conductor size, material, and ambient temperature as specified in NEC tables. What is the purpose of applying a demand factor in load calculations? A demand factor accounts for the likelihood that all devices will not be in use simultaneously at full load. What is the minimum size conductor for a 100-amp residential service according to NEC? The minimum size is 4 AWG copper or 2 AWG aluminum. 2 What is the formula for calculating voltage drop in a circuit? Voltage drop = Current x Resistance, where resistance depends on conductor size and length. What is the maximum number of outlets allowed on a 15-amp branch circuit according to NEC guidelines? The NEC does not specify a limit on the number of outlets, but the total load should not exceed the rating of the circuit. How do you calculate the size of a service-entrance conductor? The size is based on the ampacity of the service panel, considering the total demand load. What factors are considered when calculating load for a multi-family dwelling? The number of units, their individual load calculations, and any common areas or shared systems are considered. What is the maximum circuit breaker size for a 12 AWG copper conductor according to NEC? The maximum circuit breaker size for 12 AWG copper is 20 amps. 3 How is the total load for a feeder circuit calculated? Add the connected loads of all branch circuits served by the feeder, and apply any appropriate demand factors. What is the required distance for overcurrent protection from the load center? Overcurrent protection should be installed as close as possible to the load center to limit the amount of unprotected wiring. What is the method to calculate the ampacity of a conductor in a temperature above 30°C? Use the adjustment factors from NEC Table 310.15(B)(2)(a) to modify the ampacity based on the temperature. How do you determine the appropriate conductor size for a 240-volt circuit? The conductor size is determined by the amperage rating of the circuit, following NEC guidelines for voltage and wire material. What is the minimum grounding electrode conductor size for a 400-amp service? The minimum size is 2 AWG copper or 1 AWG aluminum. 4 How do you calculate the total wattage of a circuit with both resistive and inductive loads? Add the total wattage of resistive loads and calculate the volt-amperes (VA) for inductive loads, then combine the totals. What is the maximum permissible voltage drop for branch circuits according to NEC? The maximum allowable voltage drop is generally
