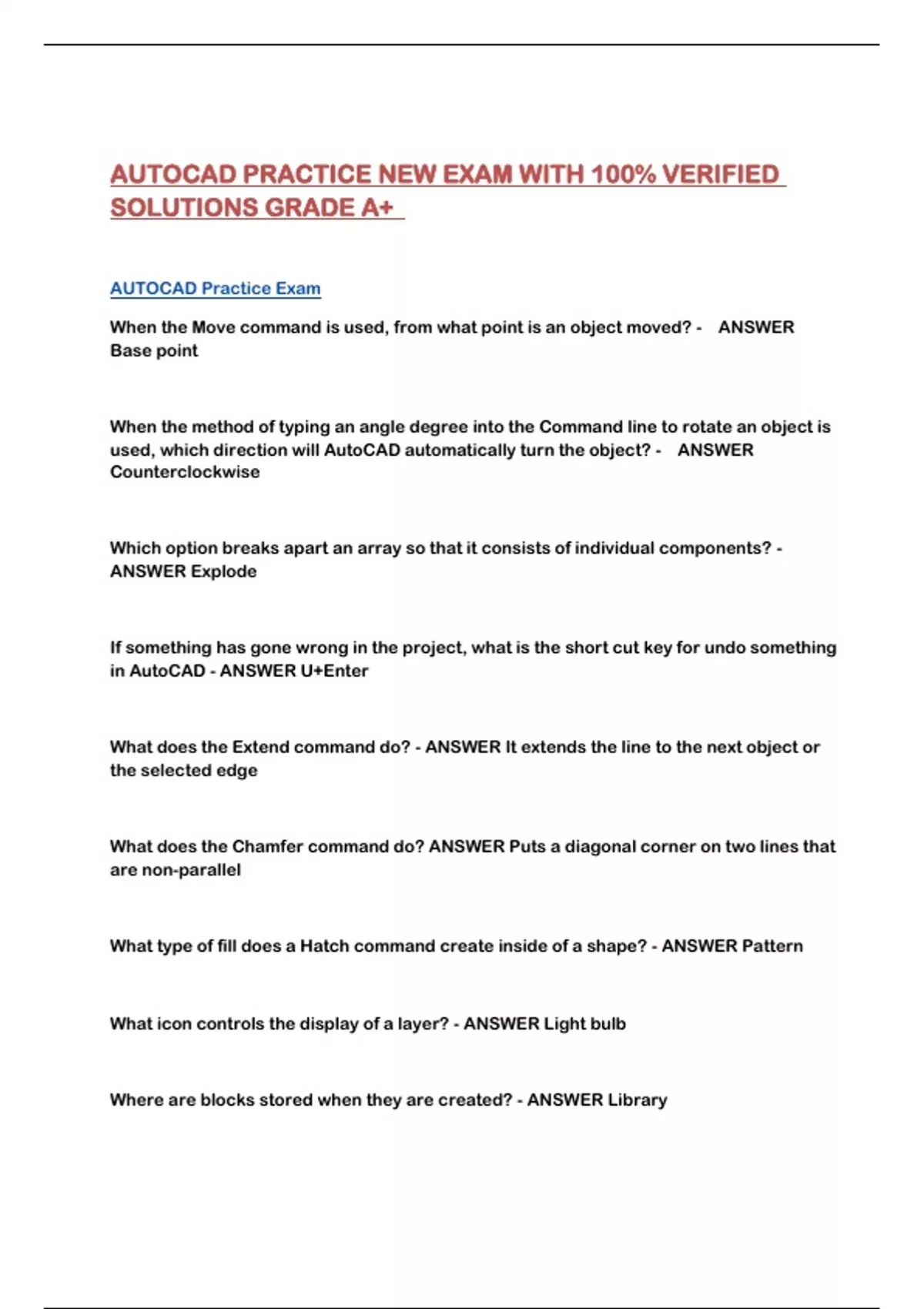

AUTOCAD PRACTICE NEW EXAM WITH 100% VERIFIED
SOLUTIONS GRADE A+
AUTOCAD Practice Exam
When the Move command is used, from what point is an object moved? - ANSWER
Base point
When the method of typing an angle degree into the Command line to rotate an object is
used, which direction will AutoCAD automatically turn the object? - ANSWER
Counterclockwise
Which option breaks apart an array so that it consists of individual components? -
ANSWER Explode
If something has gone wrong in the project, what is the short cut key for undo something
in AutoCAD - ANSWER U+Enter
What does the Extend command do? - ANSWER It extends the line to the next object or
the selected edge
What does the Chamfer command do? ANSWER Puts a diagonal corner on two lines that
are non-parallel
What type of fill does a Hatch command create inside of a shape? - ANSWER Pattern
What icon controls the display of a layer? - ANSWER Light bulb
Where are blocks stored when they are created? - ANSWER Library
, When using dimension styles, which tab in the New Dimension Style dialog box controls
how text interacts with a dimension? - ANSWER Fit
When printing a drawing in all black, what is the option to be used? - ANSWER
Monochrome
On which panel is the the multiline text option? - ANSWER Annotation
What puts a single line text box on the screen? - ANSWER Clicking to establish a
starting point
Which kind of dimensions are applied for horizontal dimensions? - ANSWER Linear
Once dimension styles are created, how might individual dimensions be modified? -
ANSWER Via the Properties box
The following properties are given for two rectangular polylines. The Match Properties
(MATCHPROP) command is invoked with Polyline 1 highlighted and then selects Polyline
2. For each of the following statements, select Yes if the statement is true or No if the
statement is not true after this action has been performed. - ANSWER Color of Polyline
2 is Blue Yes Layer of Polyline 2 is Layer 2 No.
The Elevation of Polyline 2 is 100.0000 (No).
The Lineweight of Polyline 2 is 0.30mm (Yes).
The Hyperlink for Polyline 2 is http://www.autodesk.com (No).
The Thickness for Polyline 2 is 25.0000 (Yes).
Which process can be used to convert a spline into a polyline? - ANSWER Select the
spline, then right click and choose Spline > Convert to Polyline
To move all selected object to the same layer without removing layers use the.
