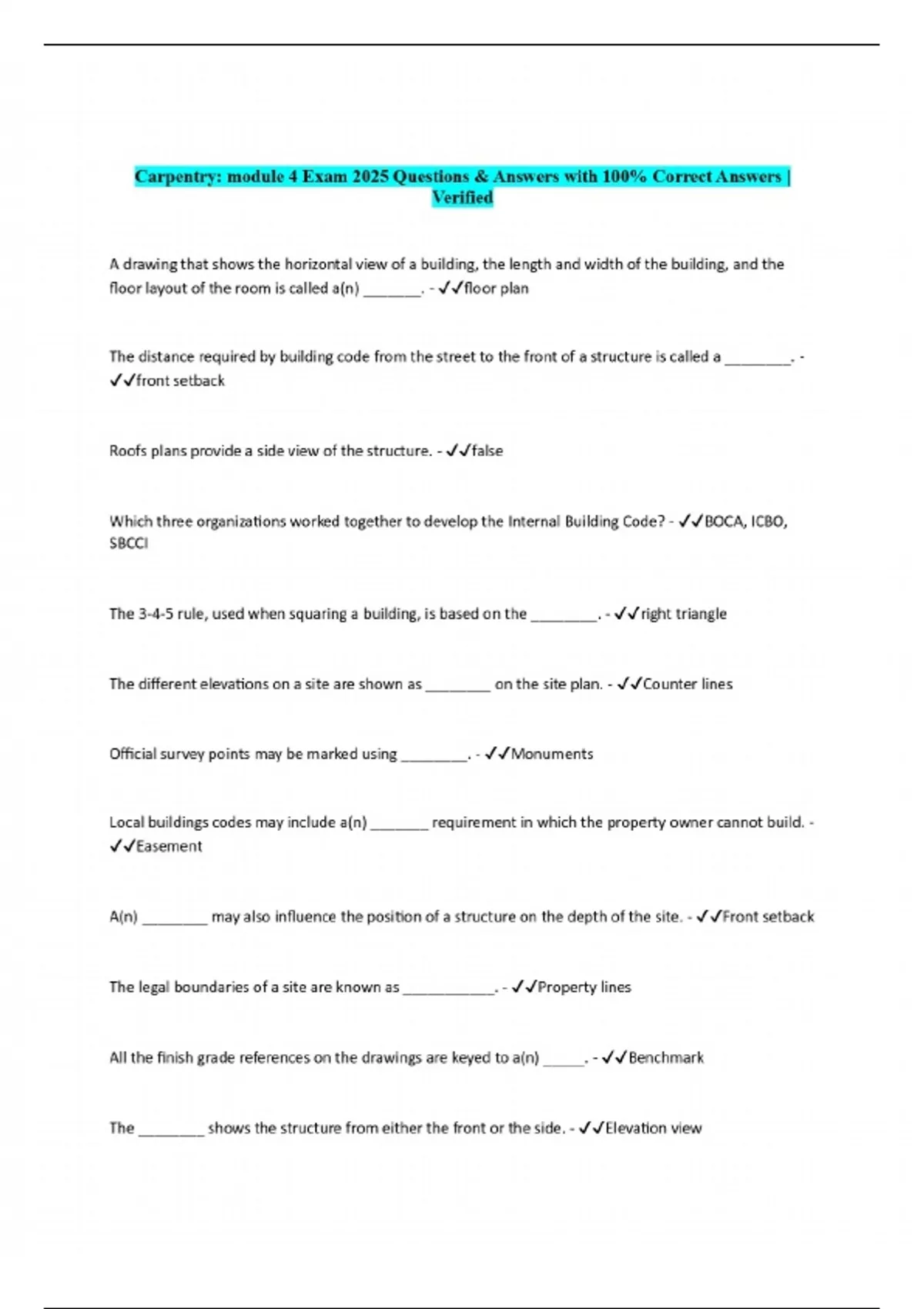

Carpentry: module 4 Exam 2025 Questions & Answers with 100% Correct Answers | Verified

A drawing that shows the horizontal view of a building, the length and width of the building, and the floor layout of the room is called a(n) _______. - floor plan The distance required by building code from the street to the front of a structure is called a ________. - front setback Roofs plans provide a side view of the structure. - false Which three organizations worked together to develop the Internal Building Code? - BOCA, ICBO, SBCCI The 3-4-5 rule, used when squaring a building, is based on the ________. - right triangle The different elevations on a site are shown as ________ on the site plan. - Counter lines Official survey points may be marked using ________. - Monuments Local buildings codes may include a(n) _______ requirement in which the property owner cannot build. - Easement A(n) ________ may also influence the position of a structure on the depth of the site. - Front setback The legal boundaries of a site are known as ___________. - Property lines All the finish grade references on the drawings are keyed to a(n) _____. - Benchmark The ________ shows the structure from either the front or the side. - Elevation view
