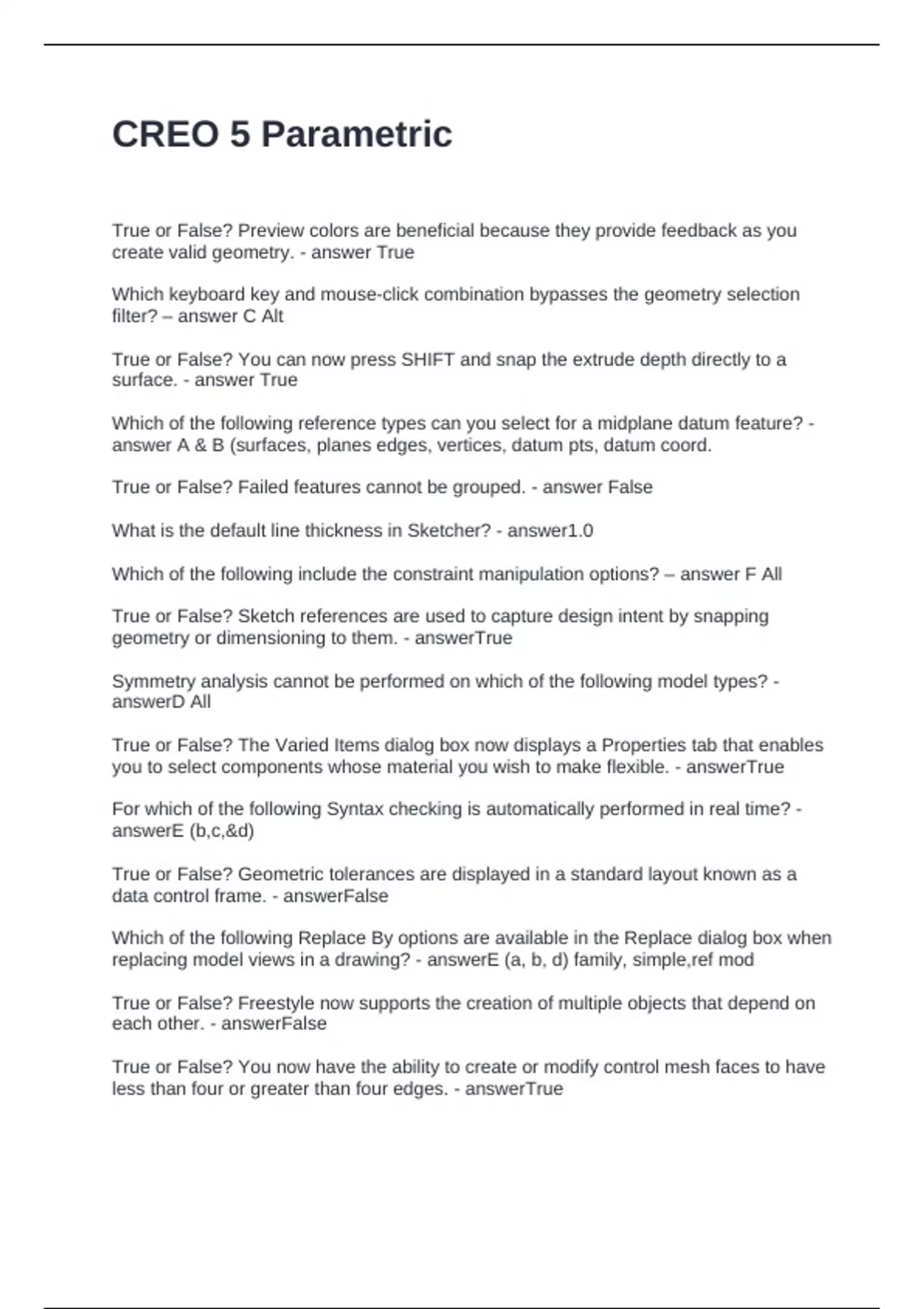

CREO 5 Parametric
True or False? Preview colors are beneficial because they provide feedback as you
create valid geometry. - answer True
Which keyboard key and mouse-click combination bypasses the geometry selection
filter? – answer C Alt
True or False? You can now press SHIFT and snap the extrude depth directly to a
surface. - answer True
Which of the following reference types can you select for a midplane datum feature? -
answer A & B (surfaces, planes edges, vertices, datum pts, datum coord.
True or False? Failed features cannot be grouped. - answer False
What is the default line thickness in Sketcher? - answer1.0
Which of the following include the constraint manipulation options? – answer F All
True or False? Sketch references are used to capture design intent by snapping
geometry or dimensioning to them. - answerTrue
Symmetry analysis cannot be performed on which of the following model types? -
answerD All
True or False? The Varied Items dialog box now displays a Properties tab that enables
you to select components whose material you wish to make flexible. - answerTrue
For which of the following Syntax checking is automatically performed in real time? -
answerE (b,c,&d)
True or False? Geometric tolerances are displayed in a standard layout known as a
data control frame. - answerFalse
Which of the following Replace By options are available in the Replace dialog box when
replacing model views in a drawing? - answerE (a, b, d) family, simple,ref mod
True or False? Freestyle now supports the creation of multiple objects that depend on
each other. - answerFalse
True or False? You now have the ability to create or modify control mesh faces to have
less than four or greater than four edges. - answerTrue
