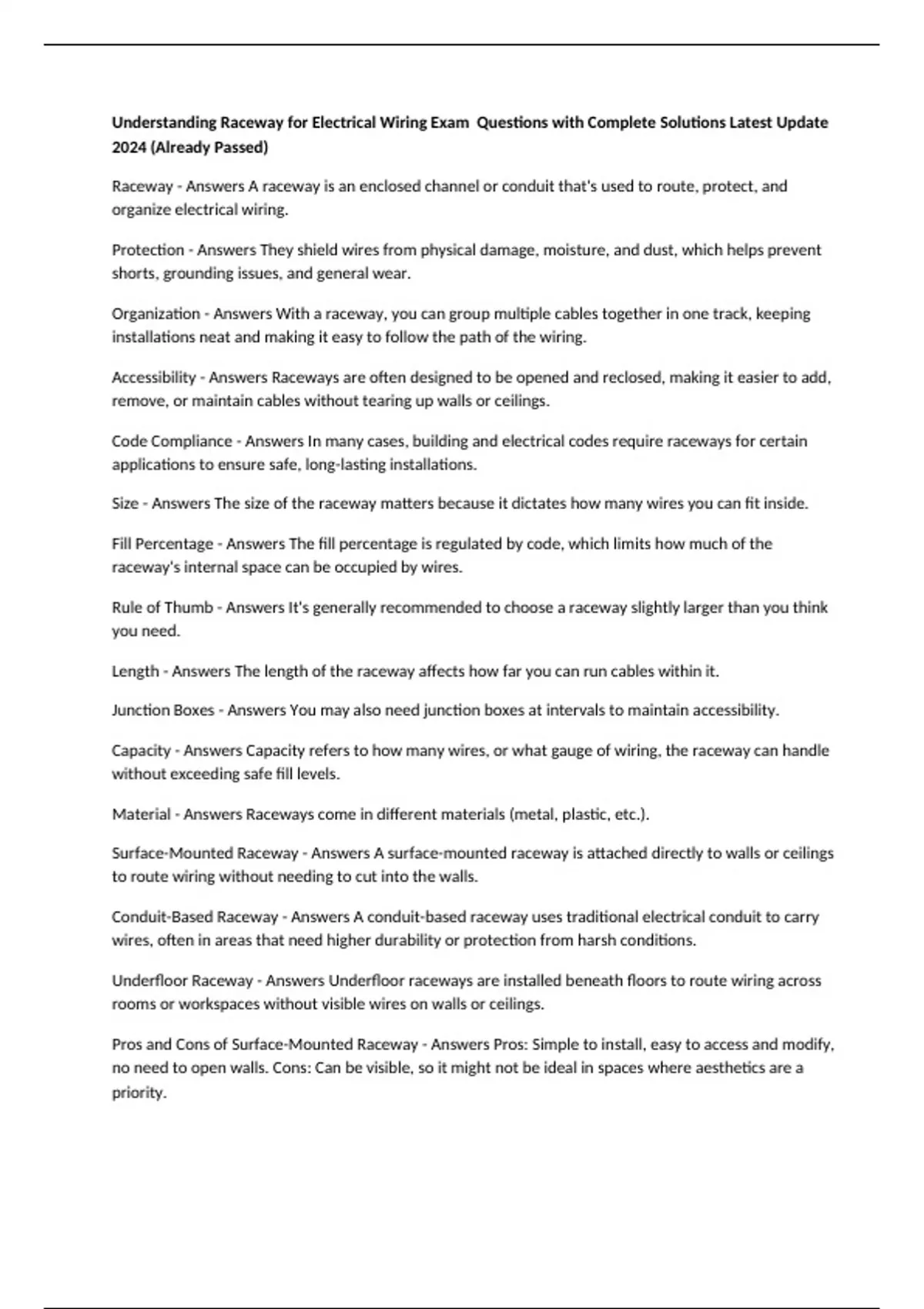

Understanding Raceway for Electrical Wiring Exam Questions with Complete Solutions Latest Update
2024 (Already Passed)
Raceway - Answers A raceway is an enclosed channel or conduit that's used to route, protect, and
organize electrical wiring.
Protection - Answers They shield wires from physical damage, moisture, and dust, which helps prevent
shorts, grounding issues, and general wear.
Organization - Answers With a raceway, you can group multiple cables together in one track, keeping
installations neat and making it easy to follow the path of the wiring.
Accessibility - Answers Raceways are often designed to be opened and reclosed, making it easier to add,
remove, or maintain cables without tearing up walls or ceilings.
Code Compliance - Answers In many cases, building and electrical codes require raceways for certain
applications to ensure safe, long-lasting installations.
Size - Answers The size of the raceway matters because it dictates how many wires you can fit inside.
Fill Percentage - Answers The fill percentage is regulated by code, which limits how much of the
raceway's internal space can be occupied by wires.
Rule of Thumb - Answers It's generally recommended to choose a raceway slightly larger than you think
you need.
Length - Answers The length of the raceway affects how far you can run cables within it.
Junction Boxes - Answers You may also need junction boxes at intervals to maintain accessibility.
Capacity - Answers Capacity refers to how many wires, or what gauge of wiring, the raceway can handle
without exceeding safe fill levels.
Material - Answers Raceways come in different materials (metal, plastic, etc.).
Surface-Mounted Raceway - Answers A surface-mounted raceway is attached directly to walls or ceilings
to route wiring without needing to cut into the walls.
Conduit-Based Raceway - Answers A conduit-based raceway uses traditional electrical conduit to carry
wires, often in areas that need higher durability or protection from harsh conditions.
Underfloor Raceway - Answers Underfloor raceways are installed beneath floors to route wiring across
rooms or workspaces without visible wires on walls or ceilings.
Pros and Cons of Surface-Mounted Raceway - Answers Pros: Simple to install, easy to access and modify,
no need to open walls. Cons: Can be visible, so it might not be ideal in spaces where aesthetics are a
priority.
