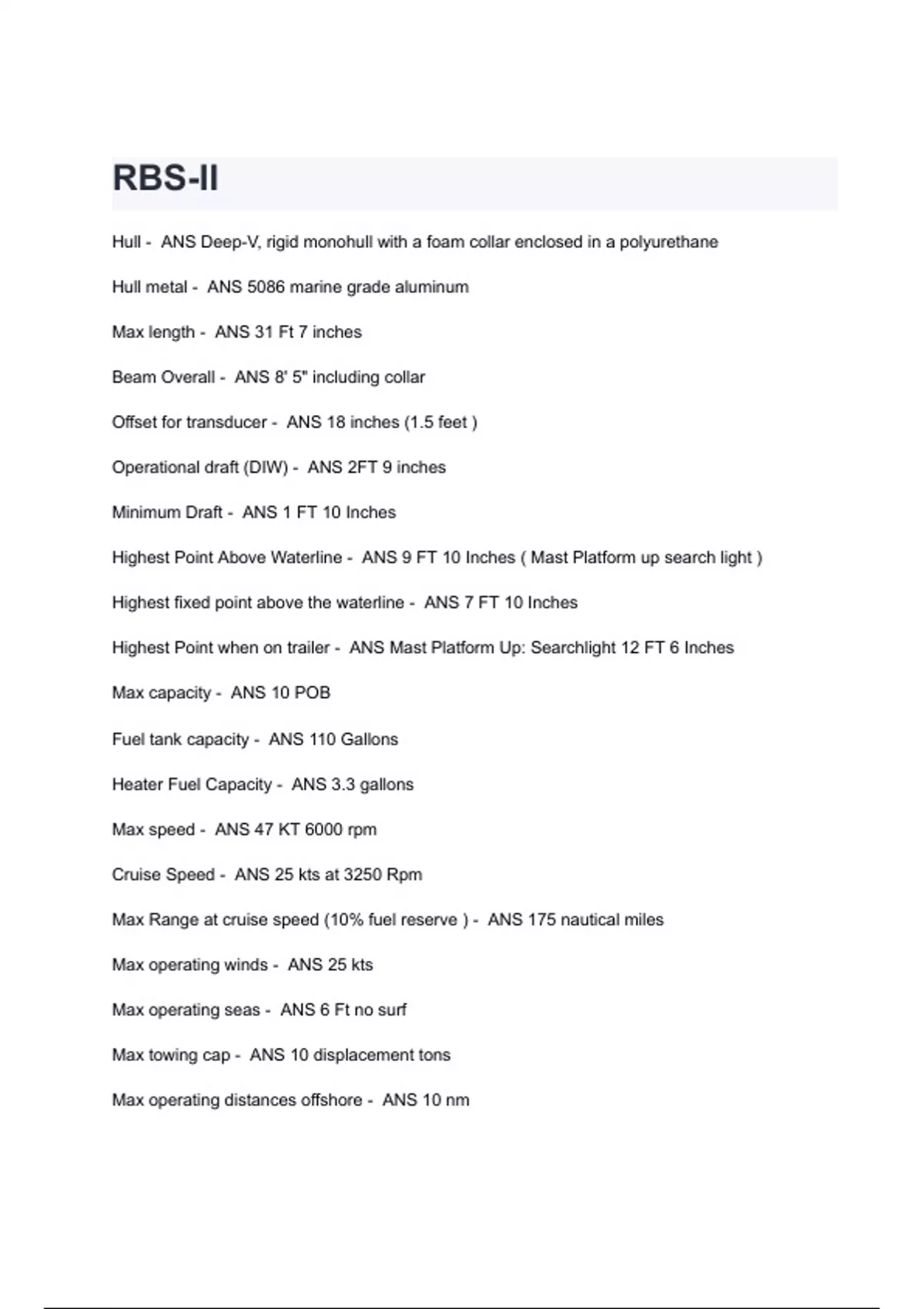

RBS-II
Hull - ANS Deep-V, rigid monohull with a foam collar enclosed in a polyurethane
Hull metal - ANS 5086 marine grade aluminum
Max length - ANS 31 Ft 7 inches
Beam Overall - ANS 8' 5" including collar
Offset for transducer - ANS 18 inches (1.5 feet )
Operational draft (DIW) - ANS 2FT 9 inches
Minimum Draft - ANS 1 FT 10 Inches
Highest Point Above Waterline - ANS 9 FT 10 Inches ( Mast Platform up search light )
Highest fixed point above the waterline - ANS 7 FT 10 Inches
Highest Point when on trailer - ANS Mast Platform Up: Searchlight 12 FT 6 Inches
Max capacity - ANS 10 POB
Fuel tank capacity - ANS 110 Gallons
Heater Fuel Capacity - ANS 3.3 gallons
Max speed - ANS 47 KT 6000 rpm
Cruise Speed - ANS 25 kts at 3250 Rpm
Max Range at cruise speed (10% fuel reserve ) - ANS 175 nautical miles
Max operating winds - ANS 25 kts
Max operating seas - ANS 6 Ft no surf
Max towing cap - ANS 10 displacement tons
Max operating distances offshore - ANS 10 nm
, Anchor locker - ANS Danforth type FX-11 anchor
Anchor line bag containing 150 ft 1 1/2 inch Double braided nylon, 9 Ft of 316 SS 3/8 inch
chain, 1 1/4 inch 316 SS shackle, 1/2 316 SS thimbles and 3/8 inch 316 SS jaw to jaw swivel,
fender and mooring lines
Main cabin - ANS Class B-1 fire extinguishers are mounted behind the aft port seat. Binoculars
are stored outboard of each of the forward seats. Six MK127A1 should be stowed in pelican
behind the aft starboard seat.
Cuddly cabin - ANS The port side has a class B-1 fire extinguisher, the boats removable tow
lights get mast, and a hanging storage bag containing an air horn, spare air canister, two
flashlights and spare kill switch lanyard. The starboard side has a latching door which provides
access to the boat's heater, the dorsal fuel tank and vent ducting with an in-line blower. The
door's exterior provides mounting for the boat's flag mast when not in use, a 10 unit first aid kit ,
the windshield washer fluid reservoir , and a hanging storage bag containing a handheld
spotlight.
Passageway - ANS The port side features the house direct current (DC) distribution panel with
circuit breakers and the house battery switch, and the starboard side has a carbon monoxide
alarm , bilge high level alarms , the boats identification plate, and a ballistic panel layout
diagram.
The house battery is located directly below the DC distribution panel on the inside of the port
console.
Fuel tank compartment - ANS Items mounted in the compartment aft of the fuel filter, the
steering power assist hydraulic power unit (HPU), trim tab HPU, two bilge pumps and the
window sump pump
Three batches provide access to equipment and storage lockers on the aft deck - ANS The
starboard locker contains both engine batteries, the engine battery distribution panel and battery
switch and battery switch, a battery isolator , and the boat's main negative/ bonding busbar.
The center locker contains spare parts and tool bag and stowage space is provided for extra
gear
The port side locker provide stowage space for mooring lines , a portal manual bilge pump , and
a bucket for use as a receptacle for oily mixture in accordance with 33 CFR 155.450
Bow eyes - ANS An aluminum pad eye is welded to stern , below the bow. The pad eye has
two holes ,providing securing points for the trailer winch strap and the bow tie down straps
Trailer tie downs - ANS Welded pockets fittings on the hull approximately amidships, Portland
starboard, and welded eyes located port and starboard on the engine well transom
