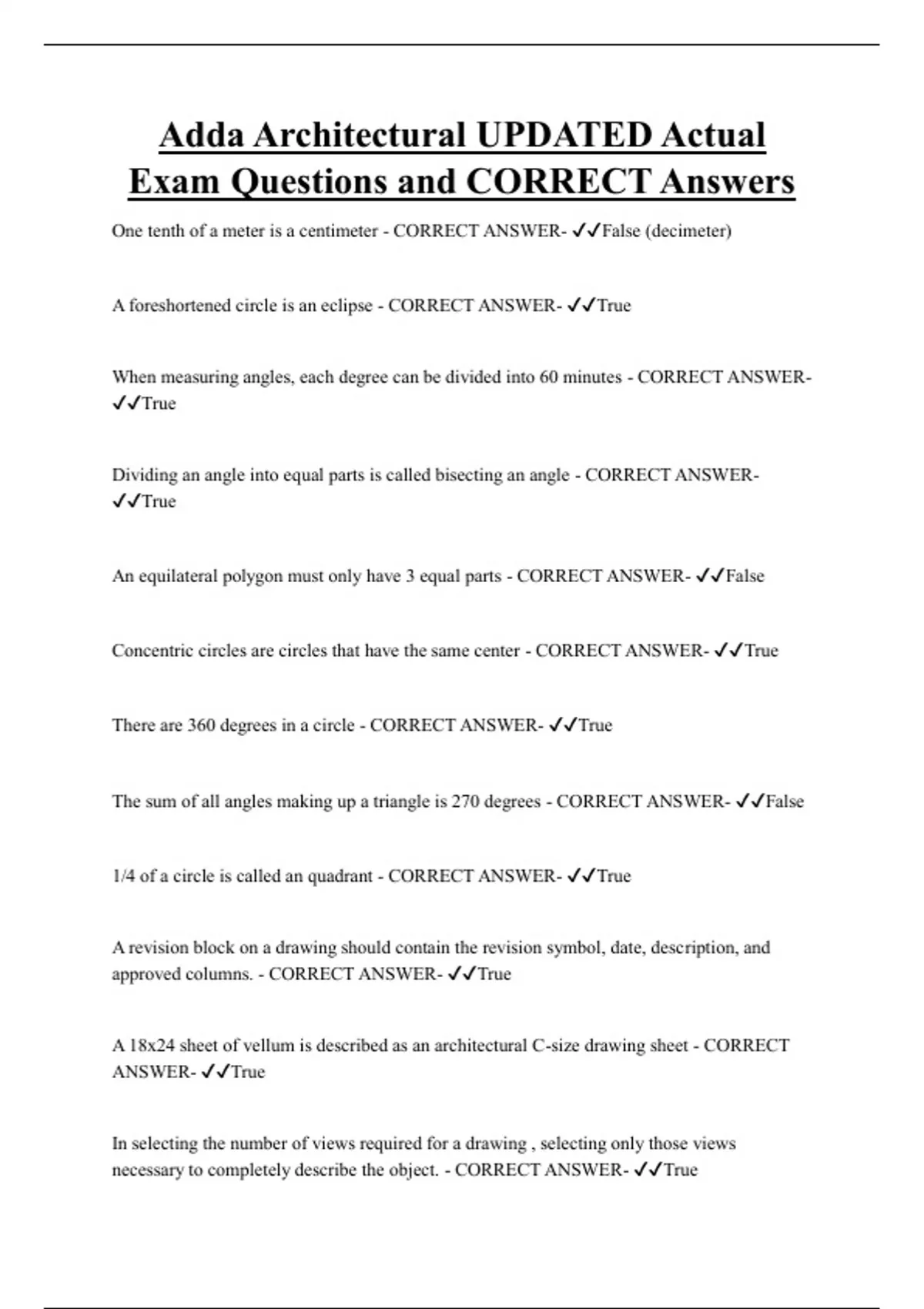

Adda Architectural UPDATED Actual
Exam Questions and CORRECT Answers
One tenth of a meter is a centimeter - CORRECT ANSWER- ✔✔False (decimeter)
A foreshortened circle is an eclipse - CORRECT ANSWER- ✔✔True
When measuring angles, each degree can be divided into 60 minutes - CORRECT ANSWER-
✔✔True
Dividing an angle into equal parts is called bisecting an angle - CORRECT ANSWER-
✔✔True
An equilateral polygon must only have 3 equal parts - CORRECT ANSWER- ✔✔False
Concentric circles are circles that have the same center - CORRECT ANSWER- ✔✔True
There are 360 degrees in a circle - CORRECT ANSWER- ✔✔True
The sum of all angles making up a triangle is 270 degrees - CORRECT ANSWER- ✔✔False
1/4 of a circle is called an quadrant - CORRECT ANSWER- ✔✔True
A revision block on a drawing should contain the revision symbol, date, description, and
approved columns. - CORRECT ANSWER- ✔✔True
A 18x24 sheet of vellum is described as an architectural C-size drawing sheet - CORRECT
ANSWER- ✔✔True
In selecting the number of views required for a drawing , selecting only those views
necessary to completely describe the object. - CORRECT ANSWER- ✔✔True
, Selecting the right side view best describes the contour shape of the object. - CORRECT
ANSWER- ✔✔True
The front elevation is drawn on the frontal plane of projection - CORRECT ANSWER-
✔✔True
Center lines are used to indicate an axis of symmetry - CORRECT ANSWER- ✔✔True
The first dimension string on architectural drawing should be placed .75" to 1.50" past the
outermost visible line of the view or plan. - CORRECT ANSWER- ✔✔False
On an orthographic drawing, only two of an object's basic dimensions may be found on a
single view. - CORRECT ANSWER- ✔✔True ?????
In third angle projection, the views are projected onto planes lying behind the object. -
CORRECT ANSWER- ✔✔False
On architectural drawings, the orthographic side views of a building are referred to as
elevations - CORRECT ANSWER- ✔✔True
When a visible, hidden and centerline all appear in the same location, the hidden lines has
precedence - CORRECT ANSWER- ✔✔False
Every object has three principle dimensions: height, width and depth. - CORRECT
ANSWER- ✔✔True
By selecting the proper front front view, you will eliminate unnecessary hidden lines in
adjacent views. - CORRECT ANSWER- ✔✔True
The top view of an object is drawn on the horizontal plane of projection - CORRECT
ANSWER- ✔✔True
