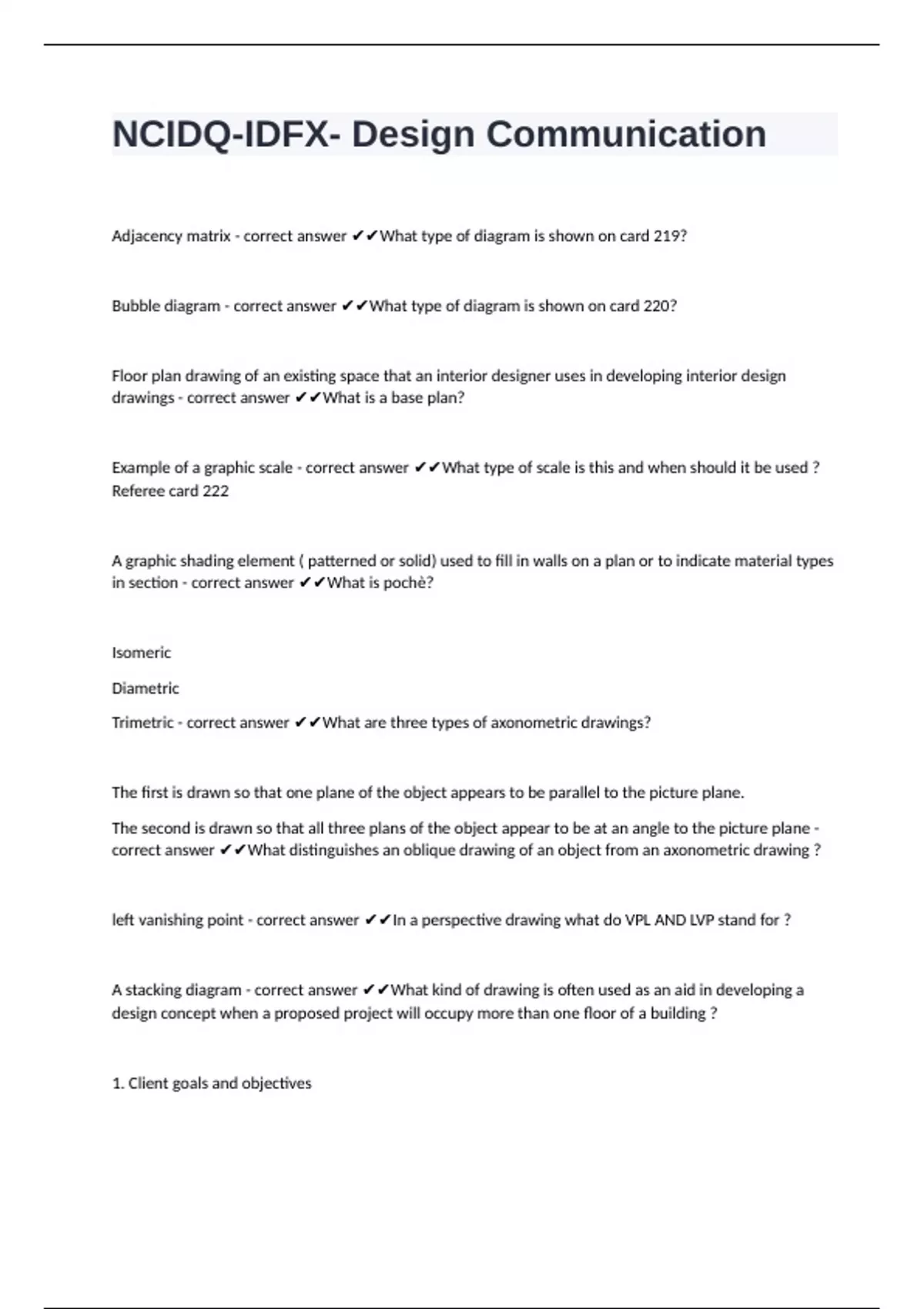

NCIDQ-IDFX- Design Communication
Adjacency matrix - correct answer ✔✔What type of diagram is shown on card 219?
Bubble diagram - correct answer ✔✔What type of diagram is shown on card 220?
Floor plan drawing of an existing space that an interior designer uses in developing interior design
drawings - correct answer ✔✔What is a base plan?
Example of a graphic scale - correct answer ✔✔What type of scale is this and when should it be used ?
Referee card 222
A graphic shading element ( patterned or solid) used to fill in walls on a plan or to indicate material types
in section - correct answer ✔✔What is pochè?
Isomeric
Diametric
Trimetric - correct answer ✔✔What are three types of axonometric drawings?
The first is drawn so that one plane of the object appears to be parallel to the picture plane.
The second is drawn so that all three plans of the object appear to be at an angle to the picture plane -
correct answer ✔✔What distinguishes an oblique drawing of an object from an axonometric drawing ?
left vanishing point - correct answer ✔✔In a perspective drawing what do VPL AND LVP stand for ?
A stacking diagram - correct answer ✔✔What kind of drawing is often used as an aid in developing a
design concept when a proposed project will occupy more than one floor of a building ?
