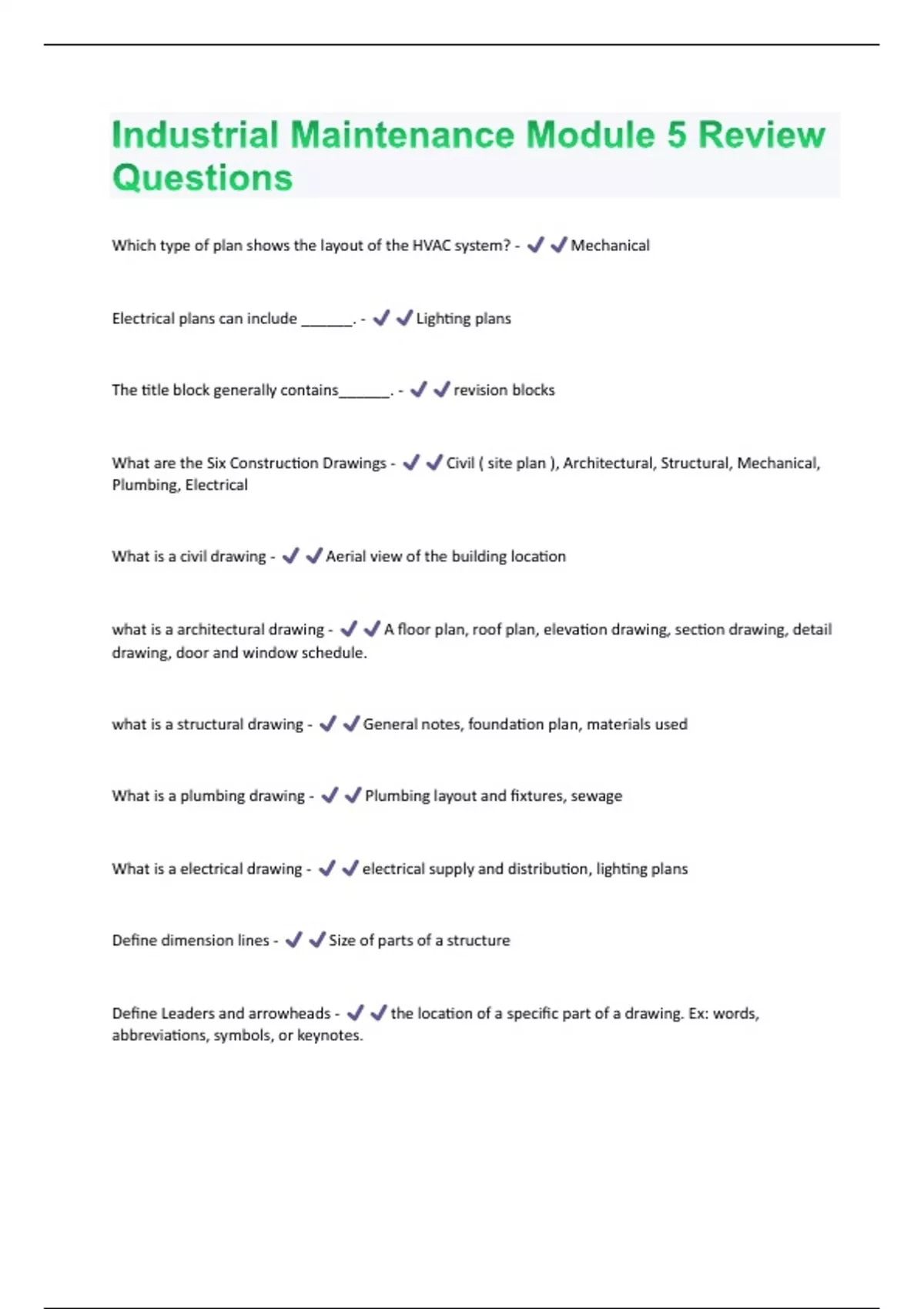

Industrial Maintenance Module 5 Review Questions and Answers 100% Solved correctly

Which type of plan shows the layout of the HVAC system? - Mechanical Electrical plans can include ______. - Lighting plans The title block generally contains______. - revision blocks What are the Six Construction Drawings - Civil ( site plan ), Architectural, Structural, Mechanical, Plumbing, Electrical What is a civil drawing - Aerial view of the building location what is a architectural drawing - A floor plan, roof plan, elevation drawing, section drawing, detail drawing, door and window schedule. what is a structural drawing - General notes, foundation plan, materials used What is a plumbing drawing - Plumbing layout and fixtures, sewage What is a electrical drawing - electrical supply and distribution, lighting plans Define dimension lines - Size of parts of a structure Define Leaders and arrowheads - the location of a specific part of a drawing. Ex: words, abbreviations, symbols, or keynotes.Define Cut lines - Lines around part of a drawing that is to be shown in a separate cross sectional view. Define Section cuts - show areas not included in the cutting line view Show where an object has been broken off to save space on a drawing. - Break lines which construction drawing using Motors, piping systems, HVAC - Mechanical drawings what is it when a part of a structure that is not visible on the drawing - Hidden lines The measured center of an object - Center lines The object of primary interest or the closest object. - Object lines what scale is used to develop site plans - Engineer's Scale what line indicate Land Boundaries - Property lines Floor plans are develop using what - architect's scale What needs to be in a title block - company logo, Sheet title, Date, Drawn by, Drawing number, Scale
