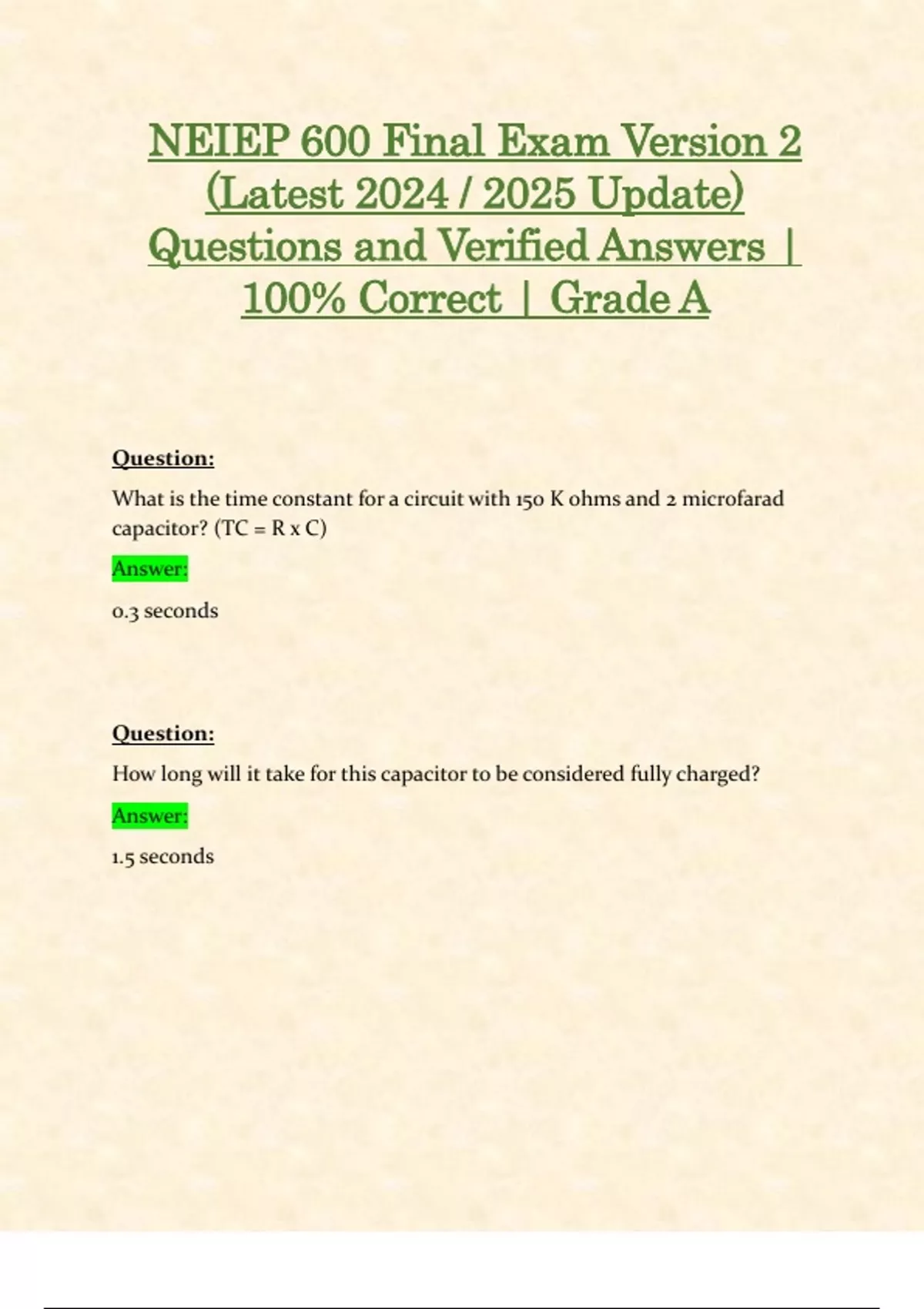

NEIEP 600 Final Exam Version 2 (Latest 2024 / 2025 Update) Questions and Verified Answers | 100% Correct | Grade A

NEIEP 600 Final Exam Version 2
(Latest Update)
Questions and Verified Answers |
100% Correct | Grade A


Question:
What is the time constant for a circuit with 150 K ohms and 2 microfarad
capacitor? (TC = R x C)
Answer:
0.3 seconds




Question:
How long will it take for this capacitor to be considered fully charged?
Answer:
1.5 seconds

,Question:
The voltage required to cause conduction across the junction in a germanium
diode is?
Answer:
0.3




Question:
A 1.5 volt 8 milliamp light emitting diode needs to be operated from a 24VDC
circuit. What series resistance is required?
Answer:
3k ohms




Question:
When removing, installing and handling solid state circuit boards what
precautions should be taken?
Answer:
Remove power and wear a grounded wrist strap




Question:
What is the peak value of an AC voltage whose RMS value is 120 volts?
Answer:
169.7 VAC

, Question:
Which of the following statements is correct as to why DC power supply series
regulators are better than shunt regulators?
Answer:
They operate more accurately over a greater current and voltage range




Question:
What is the binary equivalent of 131 10?
Answer:
1000 0011




Question:
What is the hexadecimal equivalent of 0101 1010 1101 2
Answer:
5AD




Question:
What is the correct average output voltage for a full-wave bridge rectified
using silicon diodes with a peak input supply voltage of 300 VAC
Answer:
190 VDC
