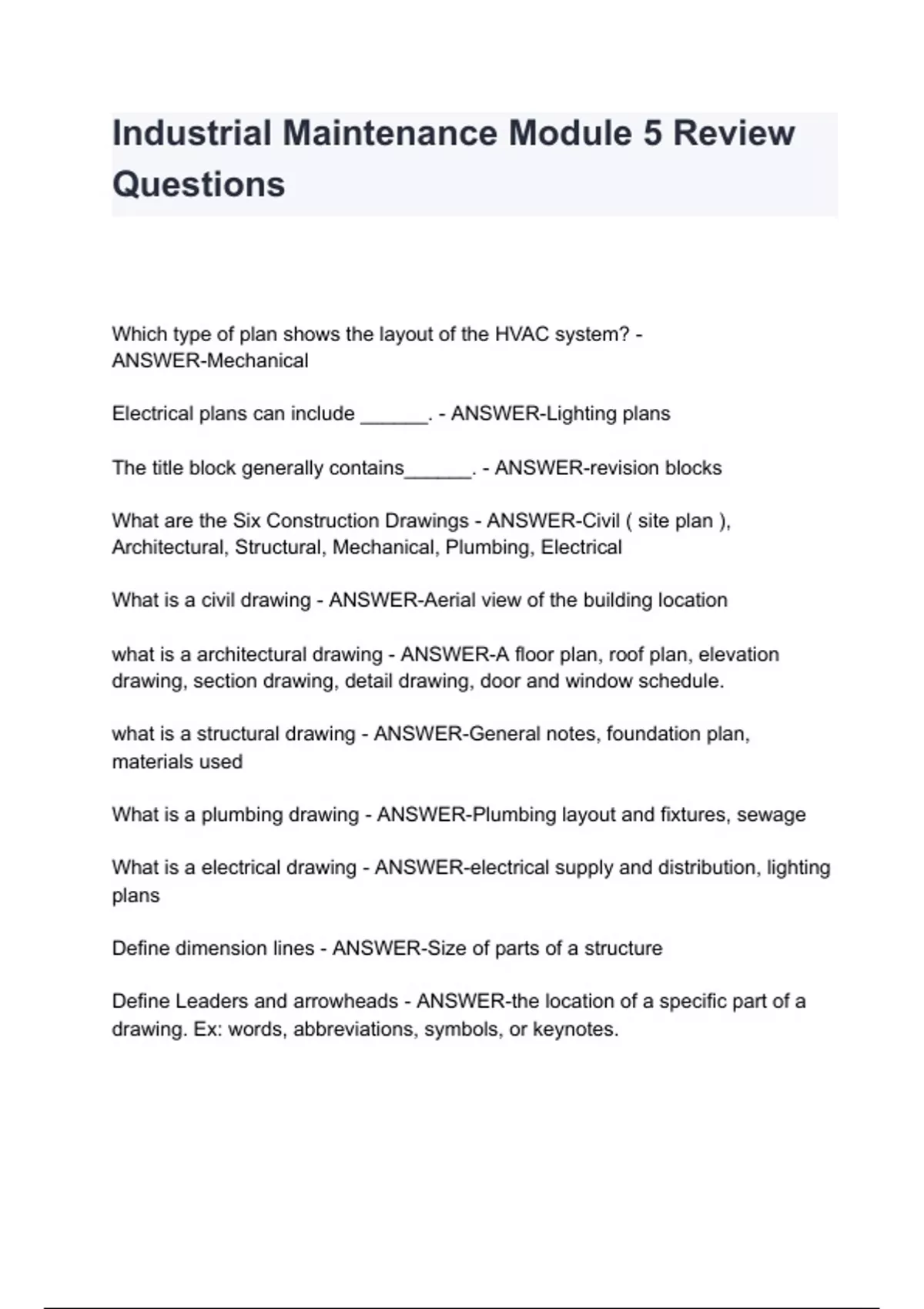

Industrial Maintenance Module 5 Review Questions and answers

Which type of plan shows the layout of the HVAC system? - ANSWER-Mechanical Electrical plans can include ______. - ANSWER-Lighting plans The title block generally contains______. - ANSWER-revision blocks What are the Six Construction Drawings - ANSWER-Civil ( site plan ), Architectural, Structural, Mechanical, Plumbing, Electrical What is a civil drawing - ANSWER-Aerial view of the building location what is a architectural drawing - ANSWER-A floor plan, roof plan, elevation drawing, section drawing, detail drawing, door and window schedule. what is a structural drawing - ANSWER-General notes, foundation plan, materials used What is a plumbing drawing - ANSWER-Plumbing layout and fixtures, sewage What is a electrical drawing - ANSWER-electrical supply and distribution, lighting plans Define dimension lines - ANSWER-Size of parts of a structure Define Leaders and arrowheads - ANSWER-the location of a specific part of a drawing.
