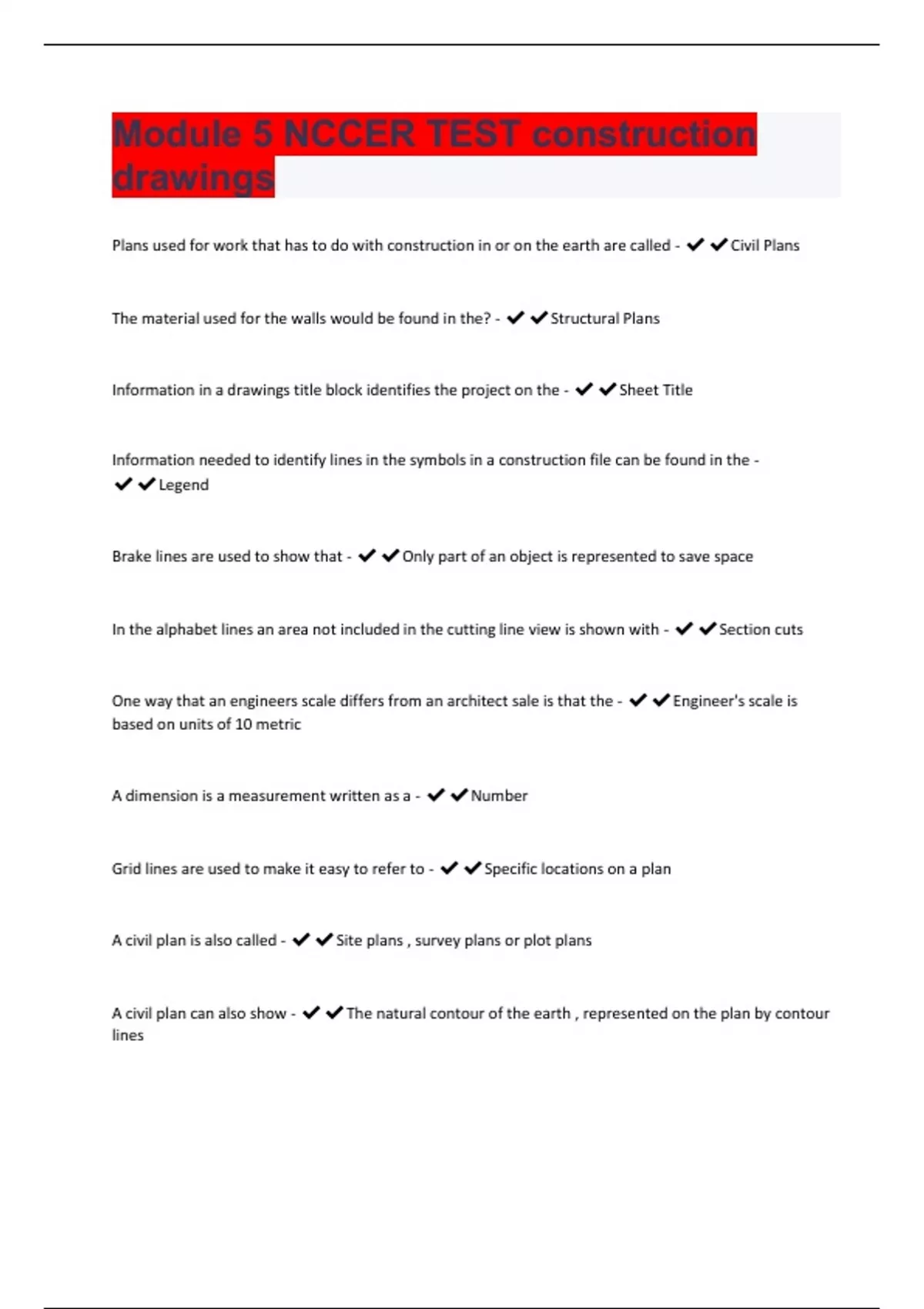

Module 5 NCCER TEST construction drawings questions and (VERIFIED) answers rated A

Plans used for work that has to do with construction in or on the earth are called - Civil Plans The material used for the walls would be found in the? - Structural Plans Information in a drawings title block identifies the project on the - Sheet Title Information needed to identify lines in the symbols in a construction file can be found in the - Legend Brake lines are used to show that - Only part of an object is represented to save space In the alphabet lines an area not included in the cutting line view is shown with - Section cuts One way that an engineers scale differs from an architect sale is that the - Engineer's scale is based on units of 10 metric A dimension is a measurement written as a - Number Grid lines are used to make it easy to refer to - Specific locations on a plan A civil plan is also called -Site plans , survey plans or plot plans A civil plan can also show - The natural contour of the earth , represented on the plan by contour linesstructural plans - Also include a foundation plan which shows the lowest level of the building including concrete footings, slabs and foundation walls Mechanical plans include - The layout of the HVAC system, showing specific requirements and elements for that system including a floor in reflected ceiling or roof
