Physics- X-ray Circuit part 1. Qs&As

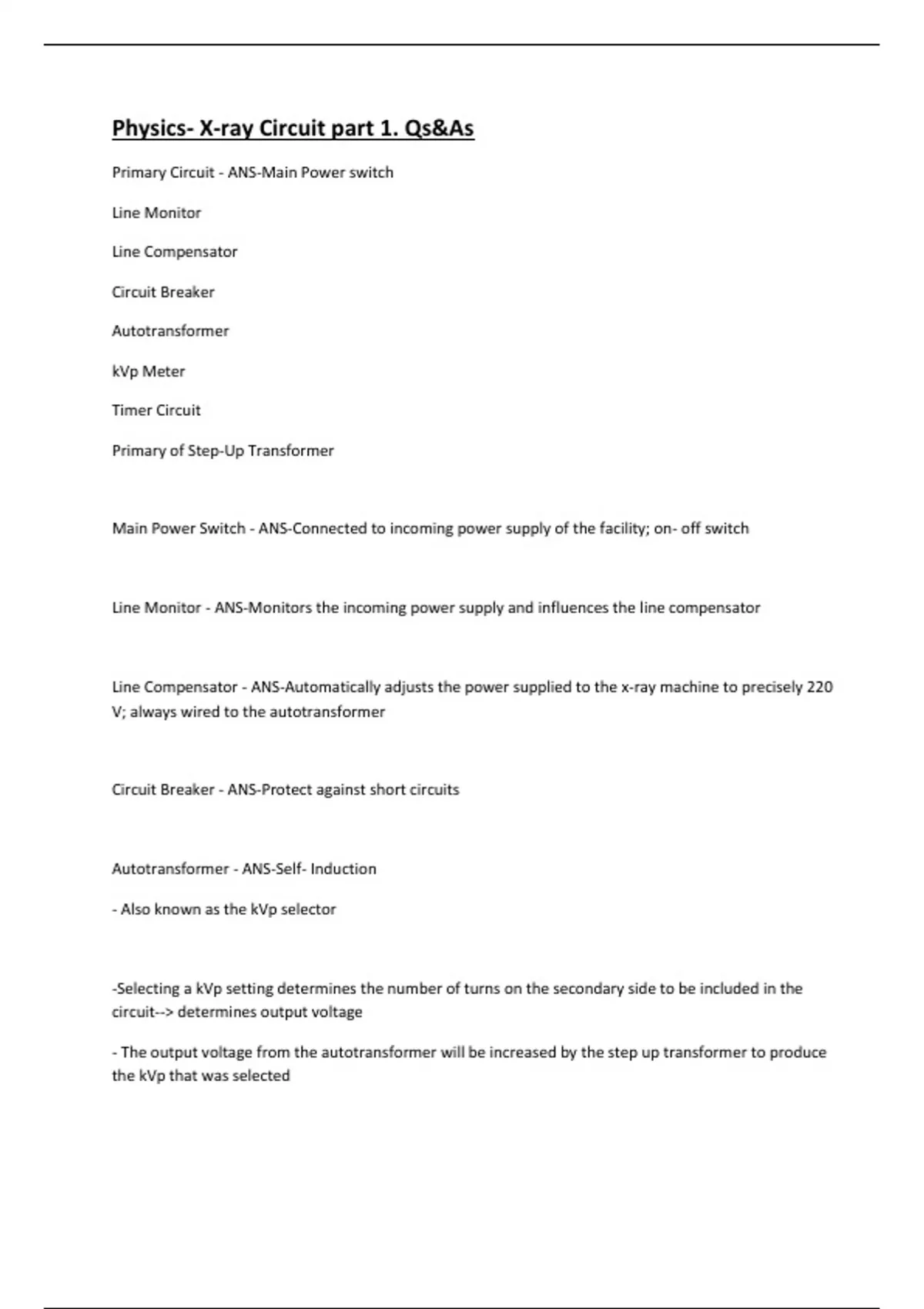

Physics- X-ray Circuit part 1. Qs&As Primary Circuit - ANS-Main Power switch Line Monitor Line Compensator Circuit Breaker Autotransformer kVp Meter Timer Circuit Primary of Step-Up Transformer Main Power Switch - ANS-Connected to incoming power supply of the facility; on- off switch Line Monitor - ANS-Monitors the incoming power supply and influences the line compensator Line Compensator - ANS-Automatically adjusts the power supplied to the x-ray machine to precisely 220 V; always wired to the autotransformer Circuit Breaker - ANS-Protect against short circuits Autotransformer - ANS-Self- Induction - Also known as the kVp selector -Selecting a kVp setting determines the number of turns on the secondary side to be included in the circuit--> determines output voltage - The output voltage from the autotransformer will be increased by the step up transformer to produce the kVp that was selected CONTINUES...
