cwb welding inspector questions with correct answers rated A+ 2023/2024

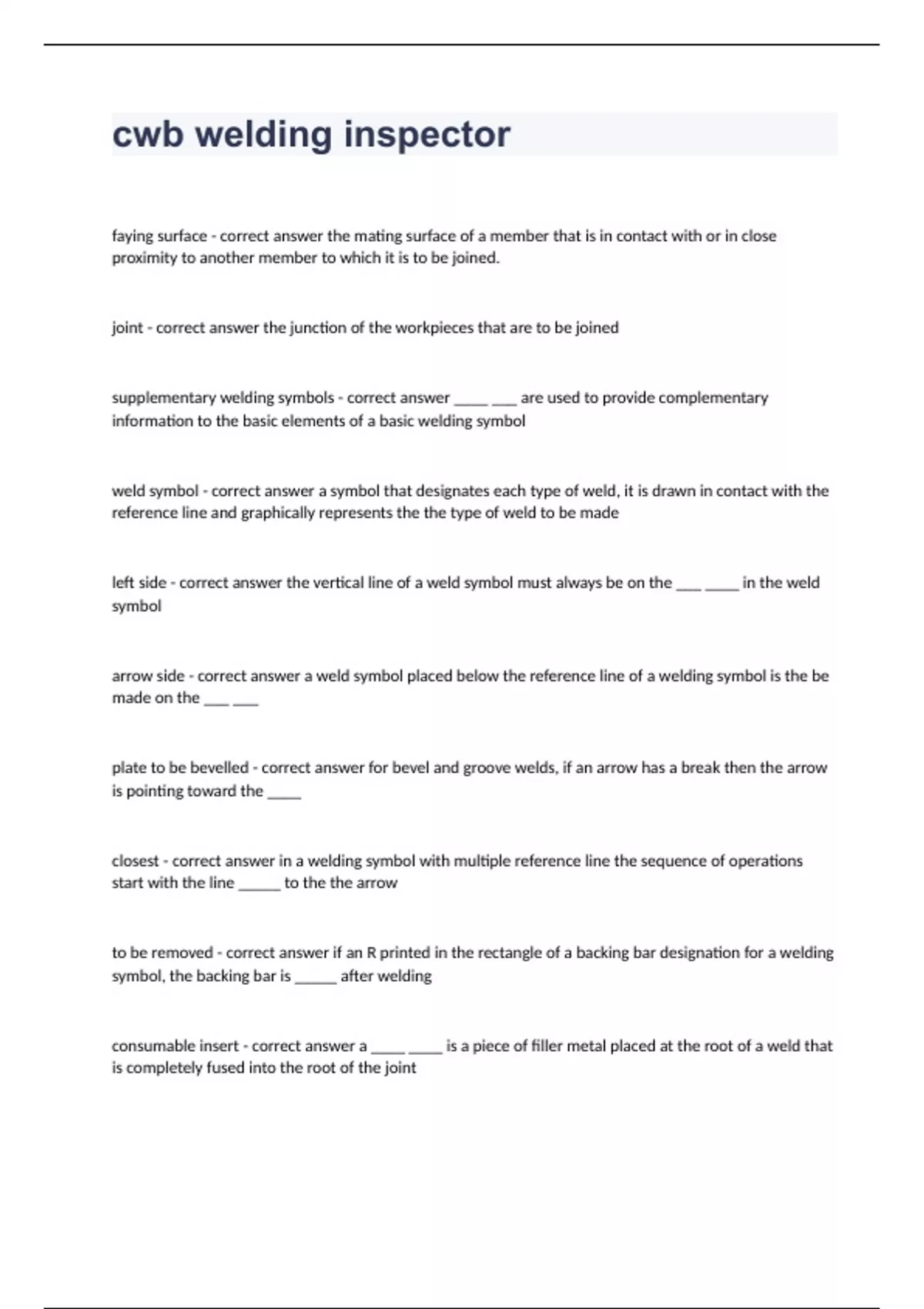

cwb welding inspectorfaying surface - correct answer the mating surface of a member that is in contact with or in close proximity to another member to which it is to be joined. joint - correct answer the junction of the workpieces that are to be joined supplementary welding symbols - correct answer ____ ___ are used to provide complementary information to the basic elements of a basic welding symbol weld symbol - correct answer a symbol that designates each type of weld, it is drawn in contact with the reference line and graphically represents the the type of weld to be made left side - correct answer the vertical line of a weld symbol must always be on the ___ ____ in the weld symbol arrow side - correct answer a weld symbol placed below the reference line of a welding symbol is the be made on the ___ ___ plate to be bevelled - correct answer for bevel and groove welds, if an arrow has a break then the arrow is pointing toward the ____ closest - correct answer in a welding symbol with multiple reference line the sequence of operations start with the line _____ to the the arrow to be removed - correct answer if an R printed in the rectangle of a backing bar designation for a welding symbol, the backing bar is _____ after welding consumable insert - correct answer a ____ ____ is a piece of filler metal placed at the root of a weld that is completely fused into the root of the joint square - correct answer the symbol for a consumable insert in a welding symbol is a ____ placed on the opposite side of the reference line from the weld Gouge to sound metal - correct answer GTSM in the tail of awelding symbol means ____ dotted lines - correct answer the designation of joint to be prepared after assembly of two members is showed using ___ ___ to draw the weld symbol seal weld - correct answer welds intended to provide a water tight seal are have ___ ___ printed in the tail of the welding symbol right - correct answer a fillet welds length is shown to the ___ of the weld symbol left - correct answer the size of a fillet weld is shown to the ___ of the weld symbol pitch - correct answer ____ is the space between sections of weld on centers of an intermittent weld Staggered Intermittent Weld - correct answer offset weld symbols on both sides of the reference line designates a ___ ___ ___ 1.5 to 6.0 mm - correct answer CSA and AWS standards allow GTAW filler metals in what diameters? - correct answer Electrode packaging must have what information GTAW - correct answer porosity, electrode contamination, solidification cracks down the centerline of the weld bead (especially in craters) and tungsten includes are common discontinuities of what welding process Manual metal arc welding - correct answer MMAW stands for constant current - correct answer what kind of power source has a drooping volt-ampere curve
