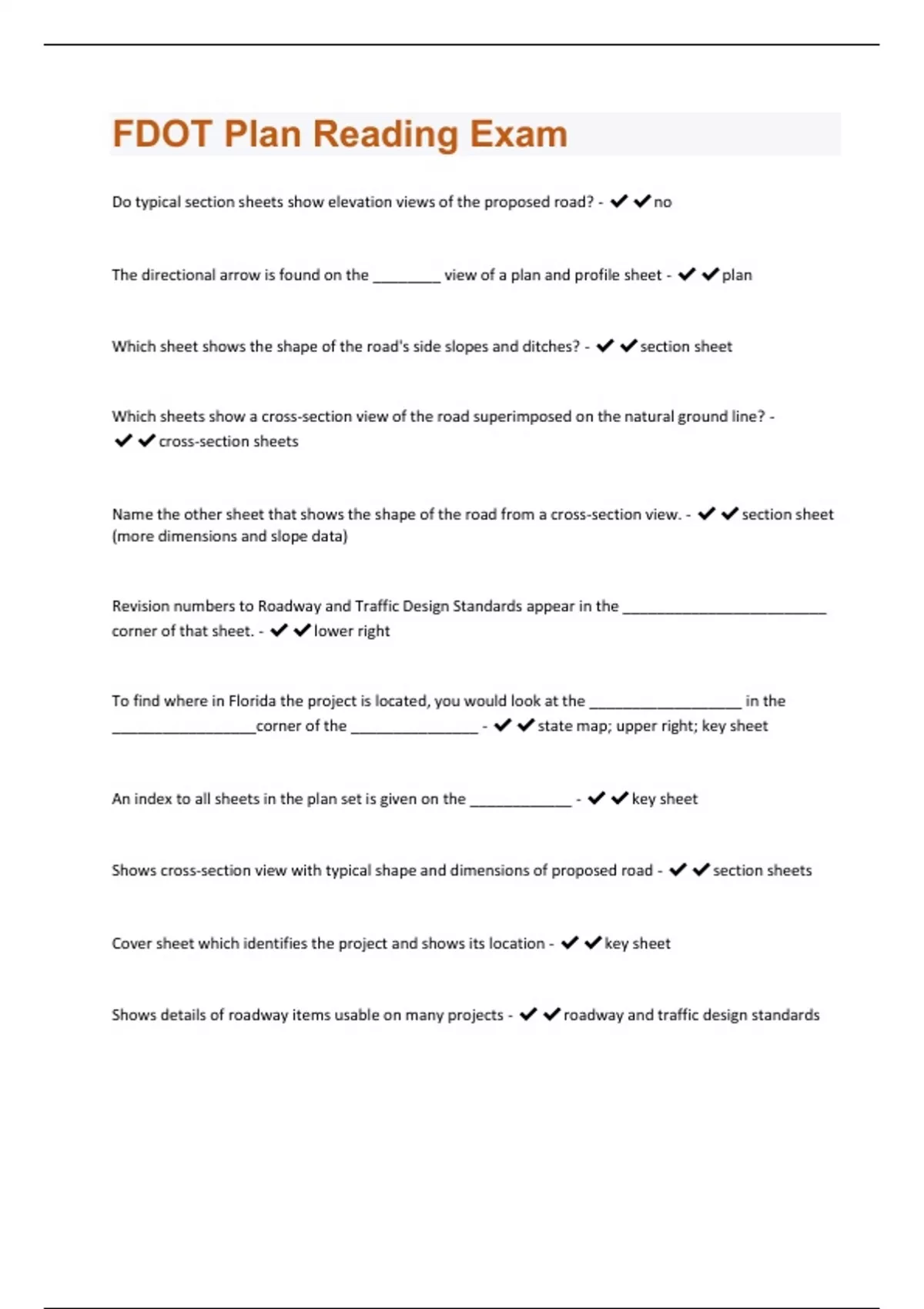

FDOT Plan Reading Exam Questions And Answers Already Graded A+

Do typical section sheets show elevation views of the proposed road? - no The directional arrow is found on the ________ view of a plan and profile sheet - plan Which sheet shows the shape of the road's side slopes and ditches? - section sheet Which sheets show a cross-section view of the road superimposed on the natural ground line? - cross-section sheets Name the other sheet that shows the shape of the road from a cross-section view. - section sheet (more dimensions and slope data) Revision numbers to Roadway and Traffic Design Standards appear in the ________________________ corner of that sheet. - lower right To find where in Florida the project is located, you would look at the __________________ in the _________________corner of the _______________ -state map; upper right; key sheet An index to all sheets in the plan set is given on the ____________ - key sheet Shows cross-section view with typical shape and dimensions of proposed road - section sheets Cover sheet which identifies the project and shows its location - key sheet Shows details of roadway items usable on many projects - roadway and traffic design standardsShows tabulated quantities of all materials and work required for construction - summary of quantities sheet Shows two views of the roadway - a plan view and an elevation view - plan and profile sheets
