NCIDQ Technical Drawing Conventions questions correctly answered 2023

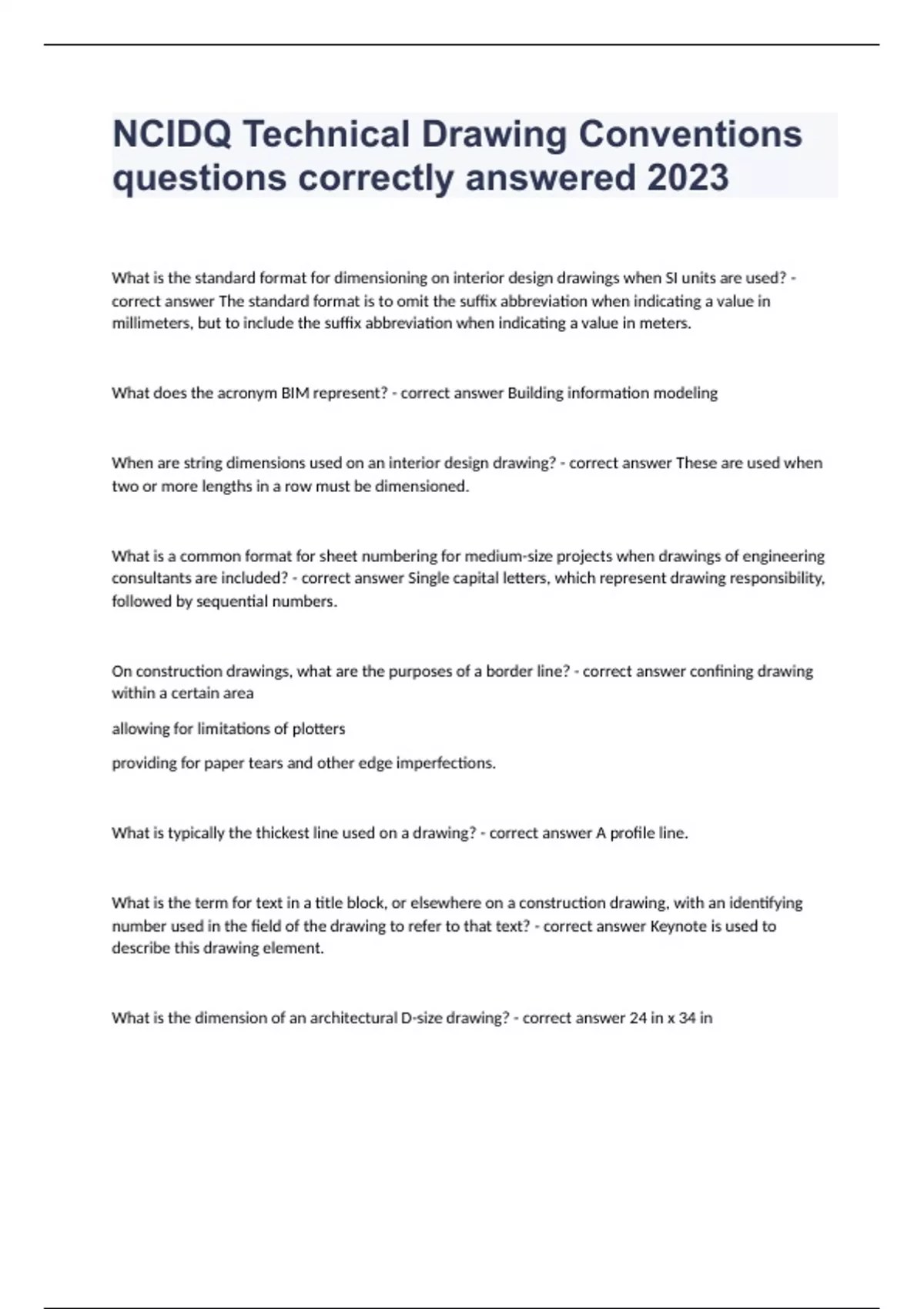

NCIDQ Technical Drawing Conventions questions correctly answered 2023What is the standard format for dimensioning on interior design drawings when SI units are used? - correct answer The standard format is to omit the suffix abbreviation when indicating a value in millimeters, but to include the suffix abbreviation when indicating a value in meters. What does the acronym BIM represent? - correct answer Building information modeling When are string dimensions used on an interior design drawing? - correct answer These are used when two or more lengths in a row must be dimensioned. What is a common format for sheet numbering for medium-size projects when drawings of engineering consultants are included? - correct answer Single capital letters, which represent drawing responsibility, followed by sequential numbers. On construction drawings, what are the purposes of a border line? - correct answer confining drawing within a certain area allowing for limitations of plotters providing for paper tears and other edge imperfections. What is typically the thickest line used on a drawing? - correct answer A profile line. What is the term for text in a title block, or elsewhere on a construction drawing, with an identifying number used in the field of the drawing to refer to that text? - correct answer Keynote is used to describe this drawing element. What is the dimension of an architectural D-size drawing? - correct answer 24 in x 34 in
