Structural Steel Erection and Connection Details Questions and Correct Answers/ Latest Update / Already Graded

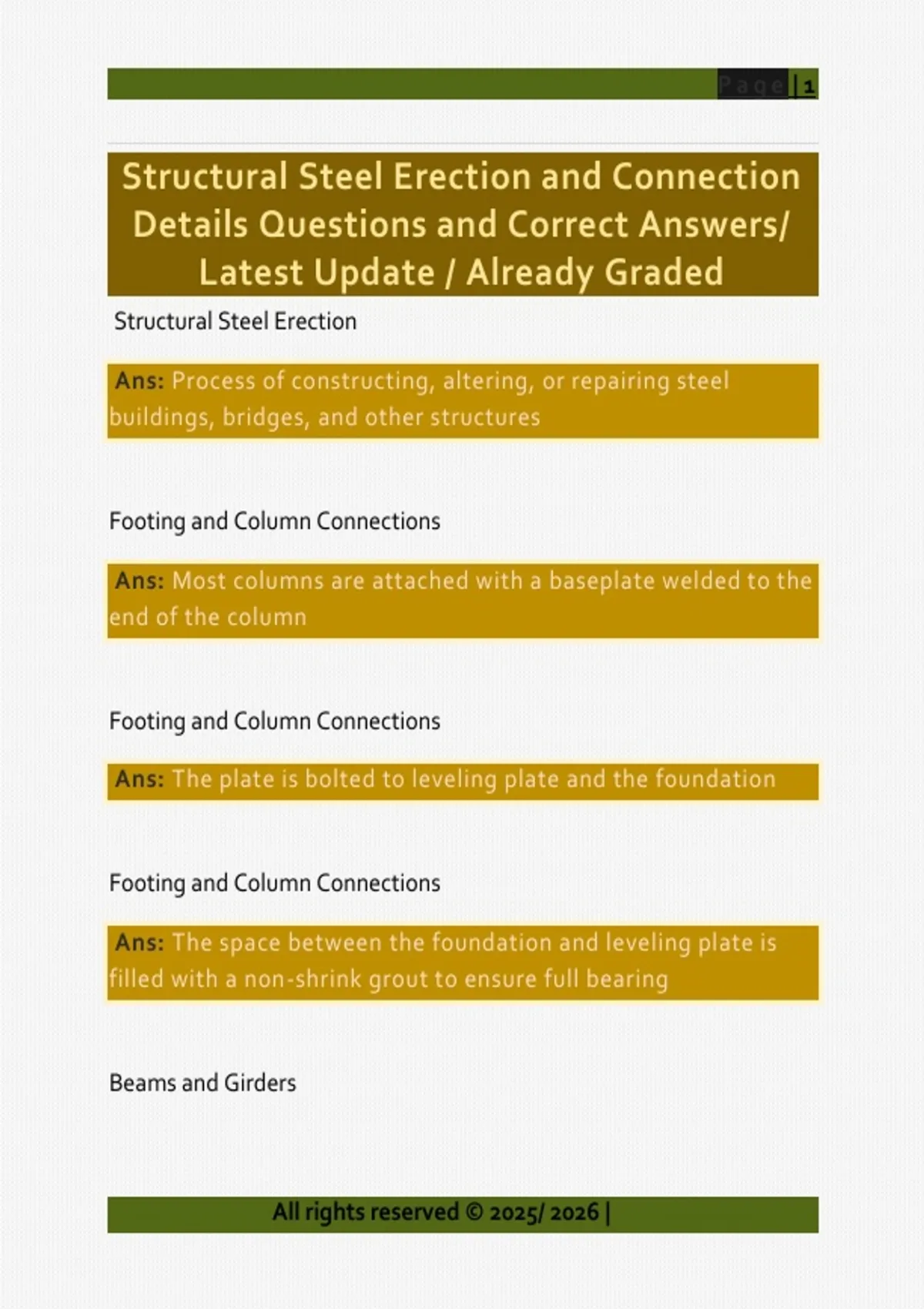

Page |1


Structural Steel Erection and Connection
Details Questions and Correct Answers/
Latest Update / Already Graded
Structural Steel Erection

Ans: Process of constructing, altering, or repairing steel
buildings, bridges, and other structures


Footing and Column Connections

Ans: Most columns are attached with a baseplate welded to the
end of the column


Footing and Column Connections

Ans: The plate is bolted to leveling plate and the foundation


Footing and Column Connections

Ans: The space between the foundation and leveling plate is
filled with a non-shrink grout to ensure full bearing


Beams and Girders



All rights reserved © 2025/ 2026 |

, Page |2


Ans: Beams and girders support floor and roof loads and
distribute the loads to the vertical columns


Beams and Girders

Ans: Connected using bolted or welded connections


Structural Steel Erection Types

Ans: Long distances are spanned with built-up structural steel
girders and trusses


Structural Steel Erection Types

Ans: Clear Span - No Supports


Structural Steel Erection Types

Ans: Modular - w/ Support Columns


Structural Steel Erection Types

Ans: Trapezoid Trusses


Structural Steel Erection Types

All rights reserved © 2025/ 2026 |
