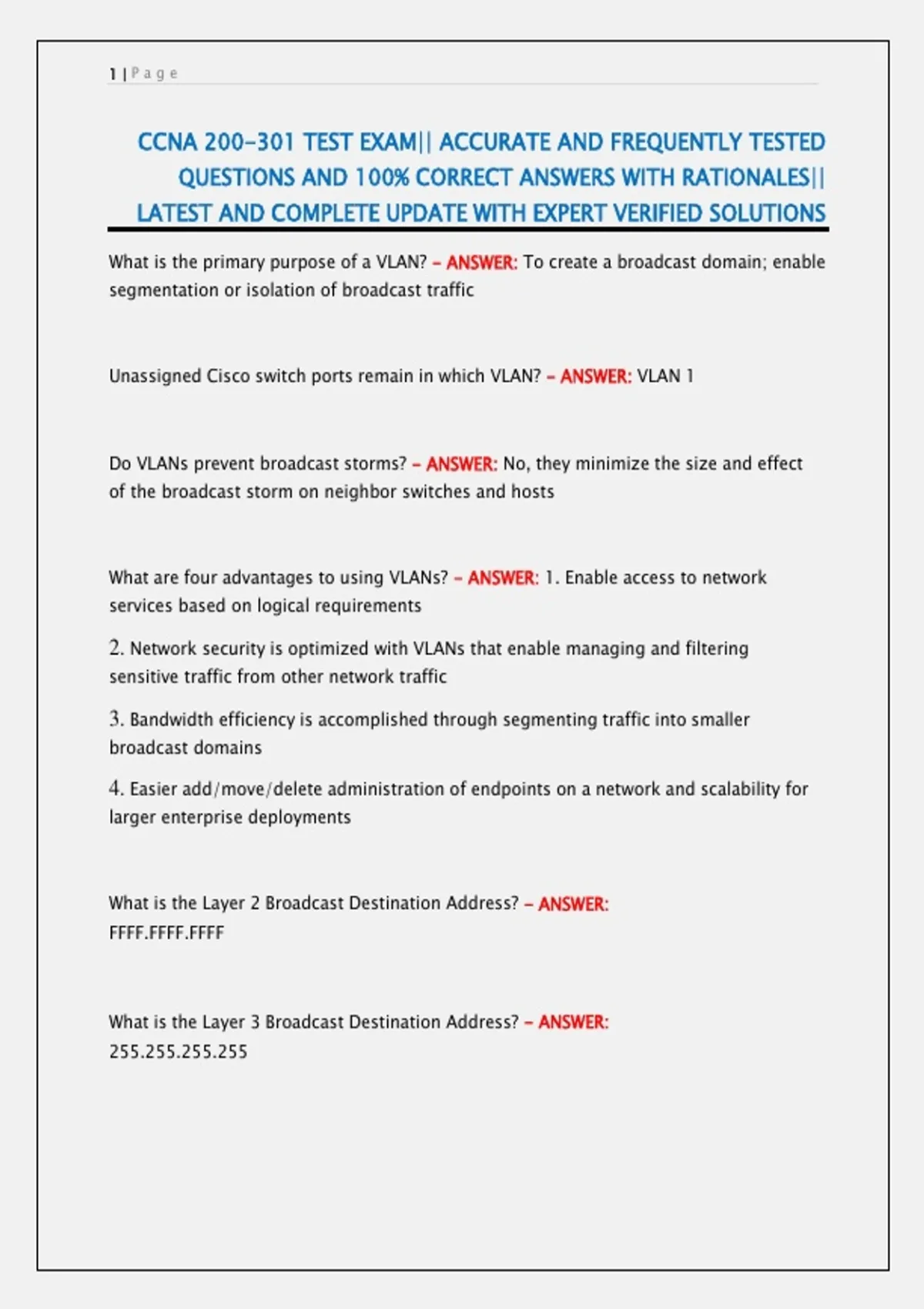

CCNA 200-301 TEST EXAM|| ACCURATE AND FREQUENTLY TESTED
QUESTIONS AND 100% CORRECT ANSWERS WITH RATIONALES||
LATEST AND COMPLETE UPDATE WITH EXPERT VERIFIED SOLUTIONS
What is the primary purpose of a VLAN? - ANSWER: To create a broadcast domain; enable
segmentation or isolation of broadcast traffic
Unassigned Cisco switch ports remain in which VLAN? - ANSWER: VLAN 1
Do VLANs prevent broadcast storms? - ANSWER: No, they minimize the size and effect
of the broadcast storm on neighbor switches and hosts
What are four advantages to using VLANs? - ANSWER: 1. Enable access to network
services based on logical requirements
2. Network security is optimized with VLANs that enable managing and filtering
sensitive traffic from other network traffic
3. Bandwidth efficiency is accomplished through segmenting traffic into smaller
broadcast domains
4. Easier add/move/delete administration of endpoints on a network and scalability for
larger enterprise deployments
What is the Layer 2 Broadcast Destination Address? - ANSWER:
FFFF.FFFF.FFFF
What is the Layer 3 Broadcast Destination Address? - ANSWER:
255.255.255.255
,2|Page
What is VLAN 1 used for and can it be deleted? - ANSWER: Management Traffic; it
cannot be deleted
What is the normal VLAN range? - ANSWER: VLAN 2 - 1001
What is the extended VLAN range? - ANSWER: VLAN 1006 - 4094
What VLANs are auto-created and cannot be deleted? - ANSWER: VLAN 1, 1002 -
1005
What VLANs cannot be pruned from a trunk? - ANSWER: VLAN 1006 - 4094
How many VLANs can be assigned to a switch access port? - ANSWER: Only one VLAN
unless you are connecting an IP phone
Authentication, authorization and accounting - ANSWER: AAA
Server providing authentication, authorization and accounting services - ANSWER:
AAA Server
One line in an access control list (ACL) - ANSWER: Access Control Entry (ACE)
A LAN network design term that refers to a switch interface connected to end-user
devices - ANSWER: access interface
In a Campus LAN design, the switches that connect directly to end-point devices -
ANSWER: access layer
,3|Page
A physical link between a service provider and its customer - ANSWER: access link
(WAN)
The speed at which bits are sent over an access link - ANSWER: access rate
In security, the recording of access attempts - ANSWER: accounting
Application Centric Infrastructure - ANSWER: ACI
Access Control List - ANSWER: ACL
A popular set of identity and directory services from Microsoft, used in part to
authenticate users - ANSWER: Active Directory
In Cisco routers, a means for one router to choose between multiple routes to reach the
same subnet when those routes are learned by different routing protocols. - ANSWER:
administrative distance
Generally, an additional software process or component running in a computing device
for some specific purpose - ANSWER: agent
An architecture that uses a software agent inside the device being managed - ANSWER:
agent-based architecture
An architecture that does not need a software agent - ANSWER: agentless architecture
, 4|Page
A reflection attack that leverages a service on the reflector to generate and reflect huge
volumes of reply traffic to the victim - ANSWER: amplification attack
A popular configuration management application - ANSWER: Ansible
Device host names along with information about each device - ANSWER: Ansible
inventory
Files with actions and logic about what Ansible should do - ANSWER: Ansible playbook
Preventing a man in the middle from copying and later replaying the packets sent by a
legitimate user, for the purpose of appearing to be a legitimate user - ANSWER: anti-
replay
Software that monitors files transferred by any means, to look for content that can be
used to place a virus into the computer - ANSWER: antivirus
Application Policy Infrastructure Controller - ANSWER: APIC
Application Policy Infrastructure Controller -Enterprise Module - ANSWER:
APIC-EM
Cisco's data center SDN solution - ANSWER: Application Centric Infrastructure (ACI)
The software that plays the role of controller in an enterprise network of Cisco
devices - ANSWER: Application Policy Infrastructure Controller - Enterprise
Module (APIC-EM)
