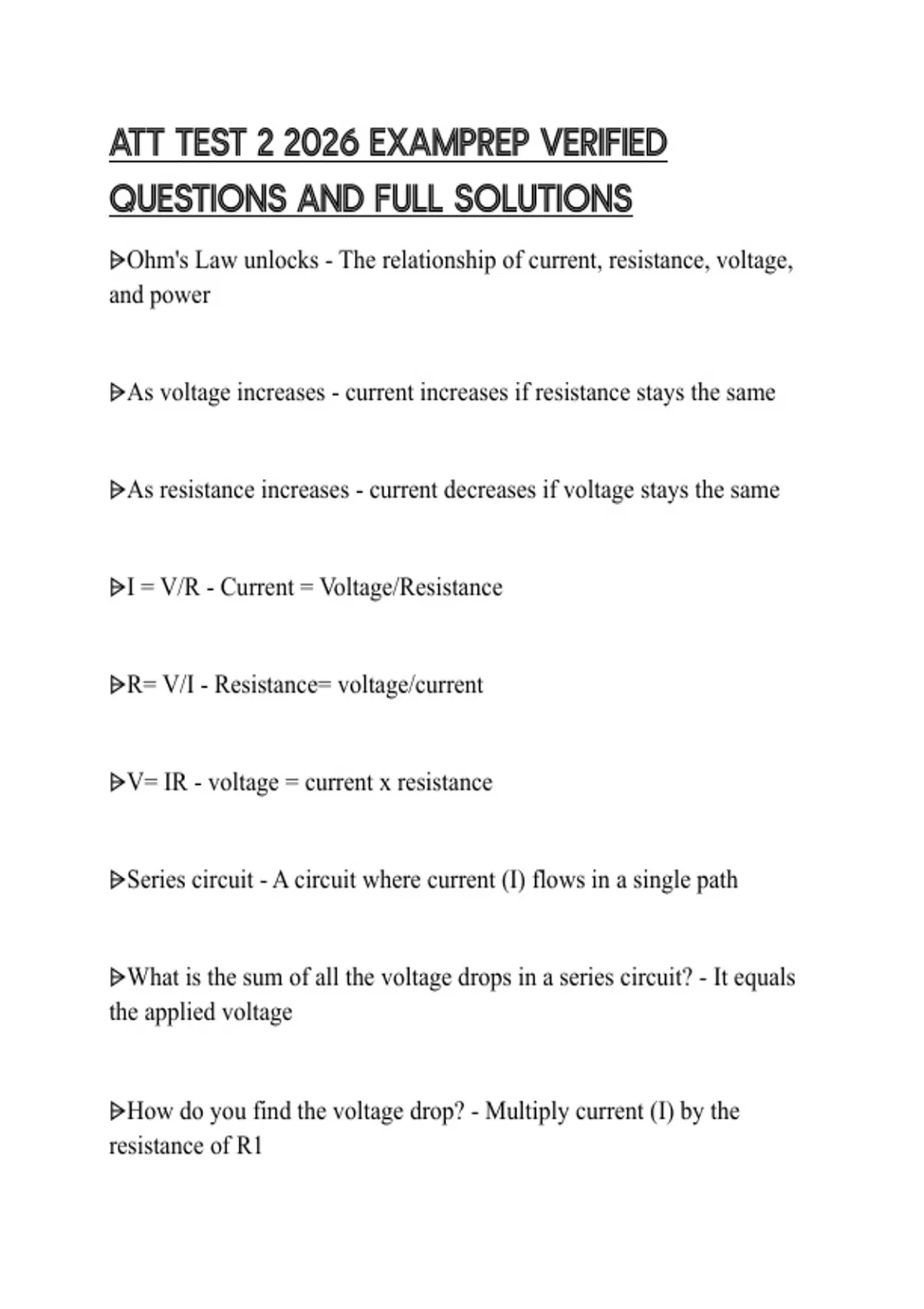

ATT TEST 2 2026 EXAMPREP VERIFIED
QUESTIONS AND FULL SOLUTIONS
⩥Ohm's Law unlocks - The relationship of current, resistance, voltage,
and power


⩥As voltage increases - current increases if resistance stays the same


⩥As resistance increases - current decreases if voltage stays the same


⩥I = V/R - Current = Voltage/Resistance


⩥R= V/I - Resistance= voltage/current


⩥V= IR - voltage = current x resistance


⩥Series circuit - A circuit where current (I) flows in a single path


⩥What is the sum of all the voltage drops in a series circuit? - It equals
the applied voltage


⩥How do you find the voltage drop? - Multiply current (I) by the
resistance of R1

, ⩥Opens have: - -maximum resistance
-no path for current flow
- Applied voltage


⩥Shorts have: - -no resistance
-0 voltage
-increases circuit resistance


⩥Changed value: - -resistance/current increases or decreases


⩥2 methods to troubleshoot a circuit: - -Trial and error
-logical procedure


⩥Steps when troubleshooting any circuit: - 1. Analyze the circuit
2. Check the setup
3. Calculate and measure values
4. Check the results


⩥3 faults common in a series circuit - -open
-shirt
-changed value
