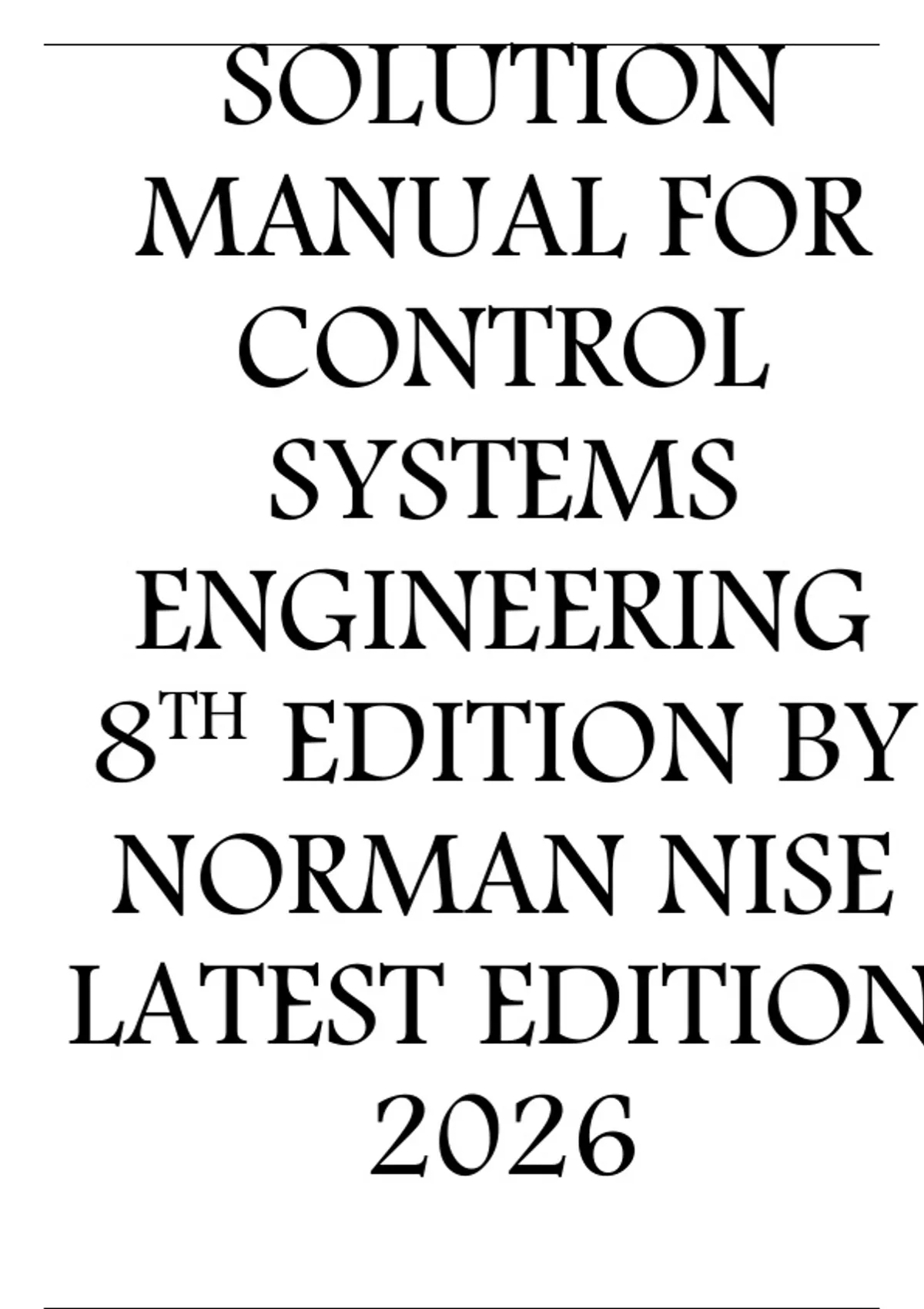

SOLUTION
MANUAL FOR
CONTROL
SYSTEMS
ENGINEERING
TH
8 EDITION BY
NORMAN NISE
LATEST EDITION
2026
, O N E
Introduction
ANSWERS TO REVIEW QUESTIONS
1. Guided Missiles, Automatic Gain Control In Radio Receivers, Satellite Tracking Antenna
2. Yes - Power Gain, Remote Control, Parameter Conversion; No - Expense, Complexity
3. Motor, Low Pass Filter, Inertia Supported Between Two Bearings
4. Closed-Loop Systems Compensate For Disturbances By Measuring The Response,
Comparing It To The Input Response (The Desired Output), And Then Correcting The Output
Response.
5. Under The Condition That The Feedback Element Is Other Than Unity
6. Actuating Signal
7. Multiple Subsystems Can Time Share The Controller. Any Adjustments To The Controller
Can Be Implemented With Simply Software Changes.
8. Stability, Transient Response, And Steady-State Error
9. Steady-State, Transient
10. It Follows A Growing Transient Response Until The Steady-State Response Is No Longer
Visible. The System Will Either Destroy Itself, Reach An Equilibrium State Because Of
Saturation In Driving Amplifiers, Or Hit Limit Stops.
11. Natural Response
12. Determine The Transient Response Performance Of The System.
13. Determine System Parameters To Meet The Transient Response Specifications For The System.
14. True
15. Transfer Function, State-Space, Differential Equations
16. Transfer Function - The Laplace Transform Of The Differential Equation
State-Space - Representation Of An Nth Order Differential Equation As N Simultaneous First-
Order Differential Equations
Differential Equation - Modeling A System With Its Differential Equation
SOLUTIONS TO PROBLEMS
50 Volts
1. Five Turns Yields 50 V. Therefore K = = 1.59
5 X 2
Rad
Copyright © 2011 by John Wiley & Sons, Inc.
,
, 1-2 Chapter 1: Introduction
2.
Desired Temperature Voltage Actual
Fuel
Temperatur Difference Difference Temperature
Flow
e
+ Amplifier and
Thermostat Heater
valves
-
3.
Desired Input Error Aileron Roll Roll
Roll Voltag Voltag Positio Rat Angle
Angle e e n e
+
controls
-
4.
Input
Speed
Desired Voltag Actual
Error Motor
Speed e Speed
Voltag and
transducer Amplifier
+ e drive
system
- Dancer
Dancer
position
sensor dynamics
Voltage
Proportional
To Actual Speed
