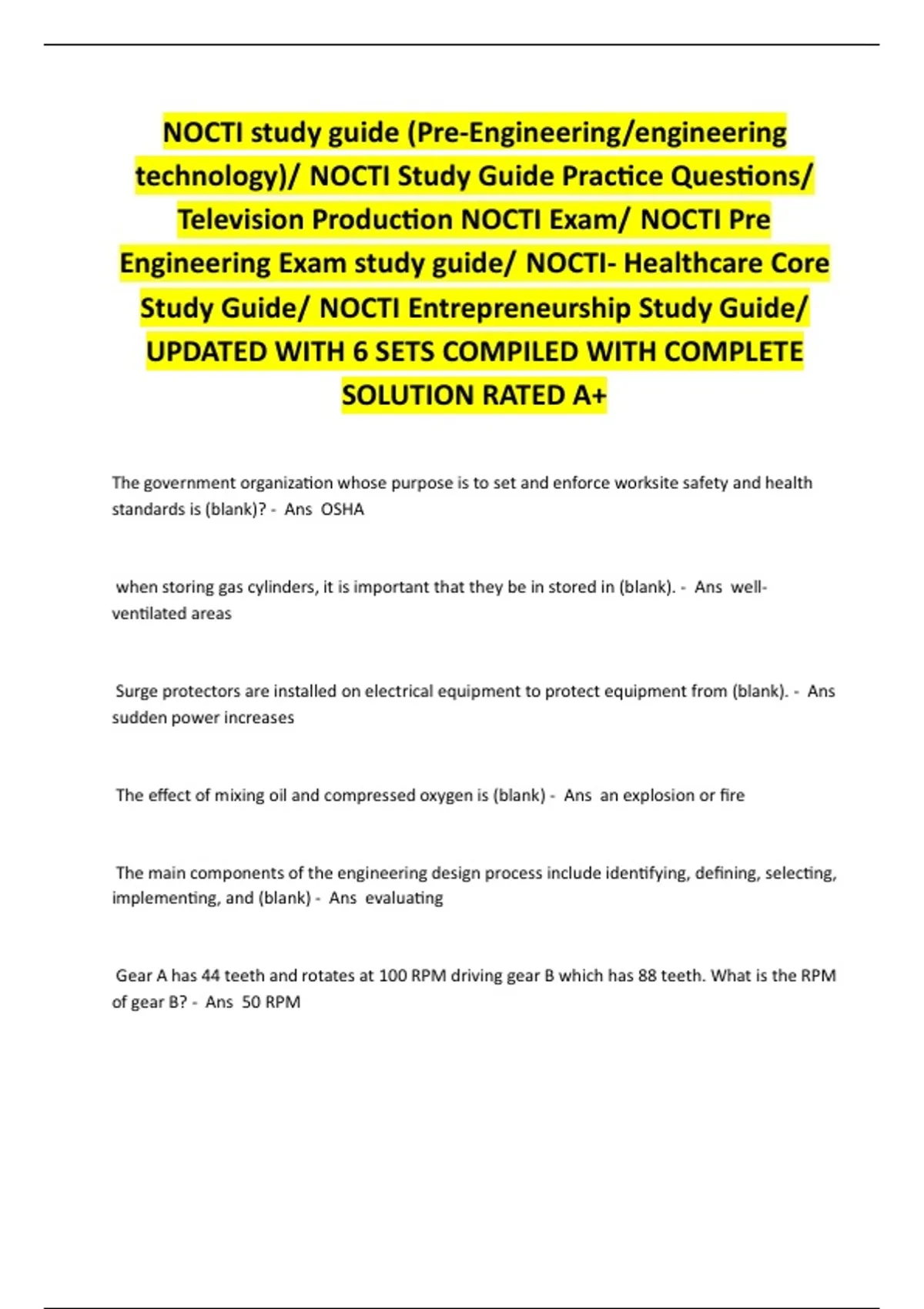

NOCTI study guide (Pre-Engineering/engineering
technology)/ NOCTI Study Guide Prac ce Ques ons/
Television Produc on NOCTI Exam/ NOCTI Pre
Engineering Exam study guide/ NOCTI- Healthcare Core
Study Guide/ NOCTI Entrepreneurship Study Guide/
UPDATED WITH 6 SETS COMPILED WITH COMPLETE
SOLUTION RATED A+
The government organiza on whose purpose is to set and enforce worksite safety and health
standards is (blank)? - Ans OSHA
when storing gas cylinders, it is important that they be in stored in (blank). - Ans well-
ven lated areas
Surge protectors are installed on electrical equipment to protect equipment from (blank). - Ans
sudden power increases
The effect of mixing oil and compressed oxygen is (blank) - Ans an explosion or fire
The main components of the engineering design process include iden fying, defining, selec ng,
implemen ng, and (blank) - Ans evalua ng
Gear A has 44 teeth and rotates at 100 RPM driving gear B which has 88 teeth. What is the RPM
of gear B? - Ans 50 RPM
, A civil engineer is ordering guardrail to create a triangular barrier around a hazard at a trucking
terminal. The two shortest sides of the triangle meet at a right angle, and are 20 feet, and 10
feet long. To the nearest foot, how long is the third side? - Ans 22 feet
A failed compressor at an ice cream factory will cost $7,500 at replace and will shut down
produc on for 3 hours at $5,000 per hour. what is the total cost of this shutdown? - Ans
$22,500
To validate a new design idea before proceeding with addi onal expenses in development,
(blank) should be performed First - Ans an evalua on
Calculate the resul ng down me cost if there are $3,000 in lost produc on, $500 in spare
parts, $250 in re-startup costs, $500 in lost energy costs, and $1,000 in deprecia on costs. - Ans
$5,250
When specifying and iden fying threads, what does the underlined number in 1/2-13UNC-2A
represent? - Ans class of fit
when a micrometer reads 2.468 inches for a hole that is to be bored to 2.473 inches, the hole is
considered - Ans 0.005 inch undersize
The reading on the micrometer shown below is closest to - Ans 0.308 inch
what can a protractor measure? - Ans Angles
What organiza on defines standards related to joining metals using the TLG (Tungsten inert
Gas) Process? - Ans AWS
A company opera ng on an interna onal scale is called - Ans globaliza on
,The ability of a metal to withstand shock lading is known as its - Ans toughness
which of these is a ferrous metal? - Ans mild steel
The rela onship of force, pressure, and piston area in an air cylinder is represented by - Ans
force= pressure x area
Calculate the flow out of a pipe per hour if there are 180 gallons per minute. - Ans 10,800
gallons/hour
what is the equa on for the basic unit of electrical power (the waB)? - Ans P=I^2 R
Using ohm's law, how much current is going through the following circuit?
15.5 volts
5 Ohms resistance - Ans 3.1 amps
In the DC circuit below, If R^5 burns open, the total current - Ans Decreases
What is the Fahrenheit equivalent of 35 degrees Celsius? - Ans 95 Degrees Fahrenheit
A kniHng needle is an example of which type of simple machine? - Ans wedge
Gauge pressure at sea level is - Ans 0 psi
The binary number 100101 equals - Ans 37
, A farad is a unit of - Ans Capacitance
A test instrument that displays a waveform is a/an - Ans Oscilloscope
A shipping crate requires 90 pounds of force to slide across a concrete floor. if the coefficient of
fric on between the crate and the floor is 0.60, how heavy is the crate? - Ans 150 lbs.
The symbol used in electrical schema cs to represent a baBer is - Ans II
A specialized schema c used to document industrial control logic system is a - Ans ladder
diagram
Which of the lines below represents a center line? - Ans C
Based on 242 workdays per year that are 8 hours long, how much me could be saved each
year if an increase in produc vity saved 15 minutes each day? - Ans 60.50 hours
By using a spreadsheet for repor ng data, an engineer can produce - Ans Tables, graphs ,
charts, and visual formats
NOCTI Study Guide Prac ce Ques ons
If a business conducts SWOT analysis to decide whether or not to expand, which of the
following would be categorized as an ''O''?
A. money is available for the expansion
B. there is the poten al for increased profits
C. new compe on could enter the market
D. company expenses have increased - Ans B. there is the poten al for increased profits
