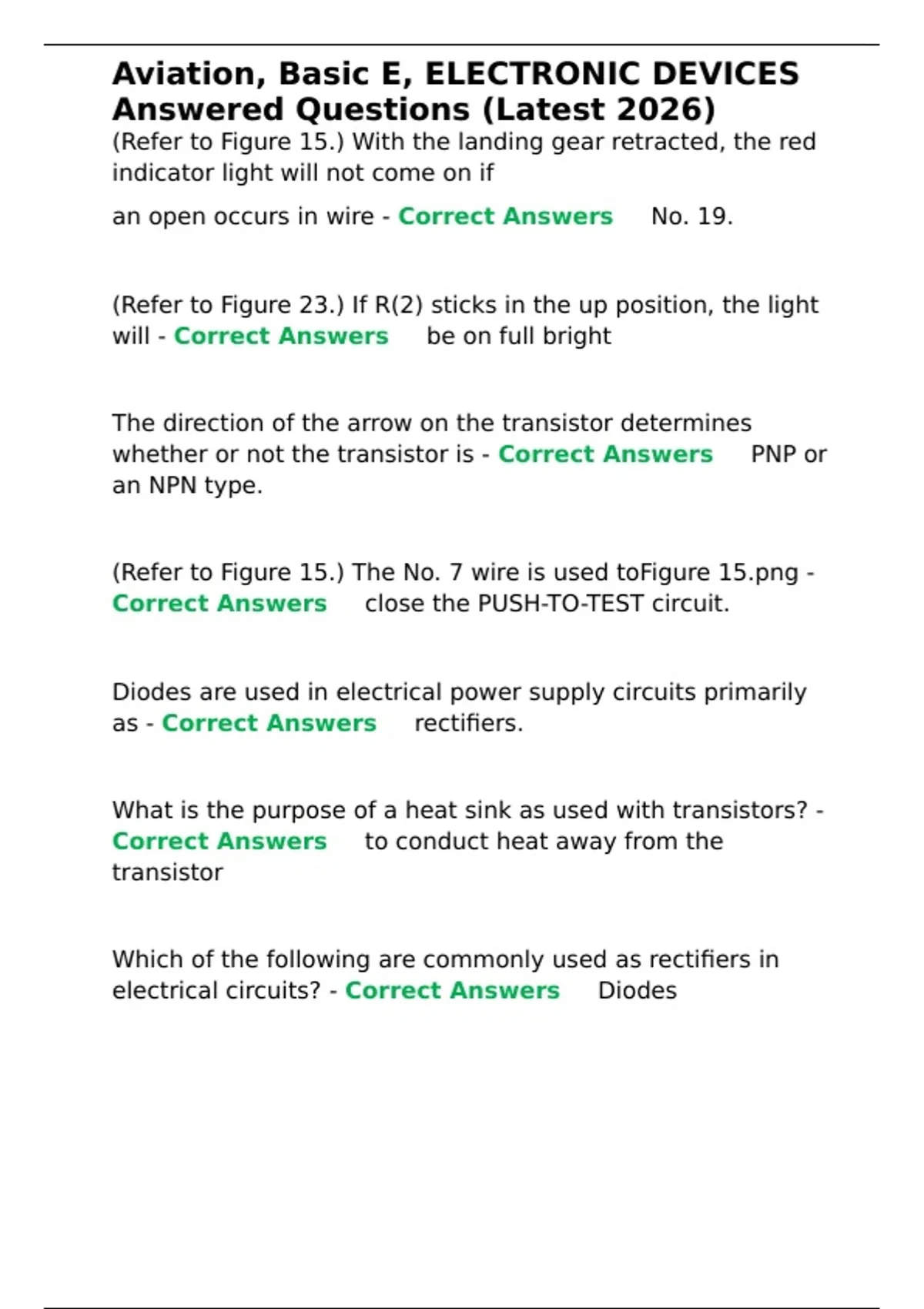

Aviation, Basic E, ELECTRONIC DEVICES
Answered Questions (Latest 2026)
(Refer to Figure 15.) With the landing gear retracted, the red
indicator light will not come on if
an open occurs in wire - Correct Answers ✅No. 19.
(Refer to Figure 23.) If R(2) sticks in the up position, the light
will - Correct Answers ✅be on full bright
The direction of the arrow on the transistor determines
whether or not the transistor is - Correct Answers ✅PNP or
an NPN type.
(Refer to Figure 15.) The No. 7 wire is used toFigure 15.png -
Correct Answers ✅close the PUSH-TO-TEST circuit.
Diodes are used in electrical power supply circuits primarily
as - Correct Answers ✅rectifiers.
What is the purpose of a heat sink as used with transistors? -
Correct Answers ✅to conduct heat away from the
transistor
Which of the following are commonly used as rectifiers in
electrical circuits? - Correct Answers ✅Diodes
, Aviation, Basic E, ELECTRONIC DEVICES
Answered Questions (Latest 2026)
(Refer to Figure 16.) What will be the effect if the PCO relay
fails to operate when the left-hand
tank is selected? - Correct Answers ✅The fuel pressure
crossfeed valve open light will not illuminate.
To connect a solid-state diode in forward bias means to
connect the - Correct Answers ✅P-type to positive, N-type
to negative.
Forward biasing of a solid state device will cause the device
to - Correct Answers ✅conduct
(Refer to Figure 10) Under which condition Will a ground be
provided for the warning horn
through both gear switches when the throttles are closed? -
Correct Answers ✅Left gear up and right gear down.
(Refer to Figure 25.) In a functional and operating circuit, the
depicted logic gate's output will
be 0 - Correct Answers ✅When one or more inputs are 0
Electron current moves in one direction, while hole current -
Correct Answers ✅travels in the opposite direction.
