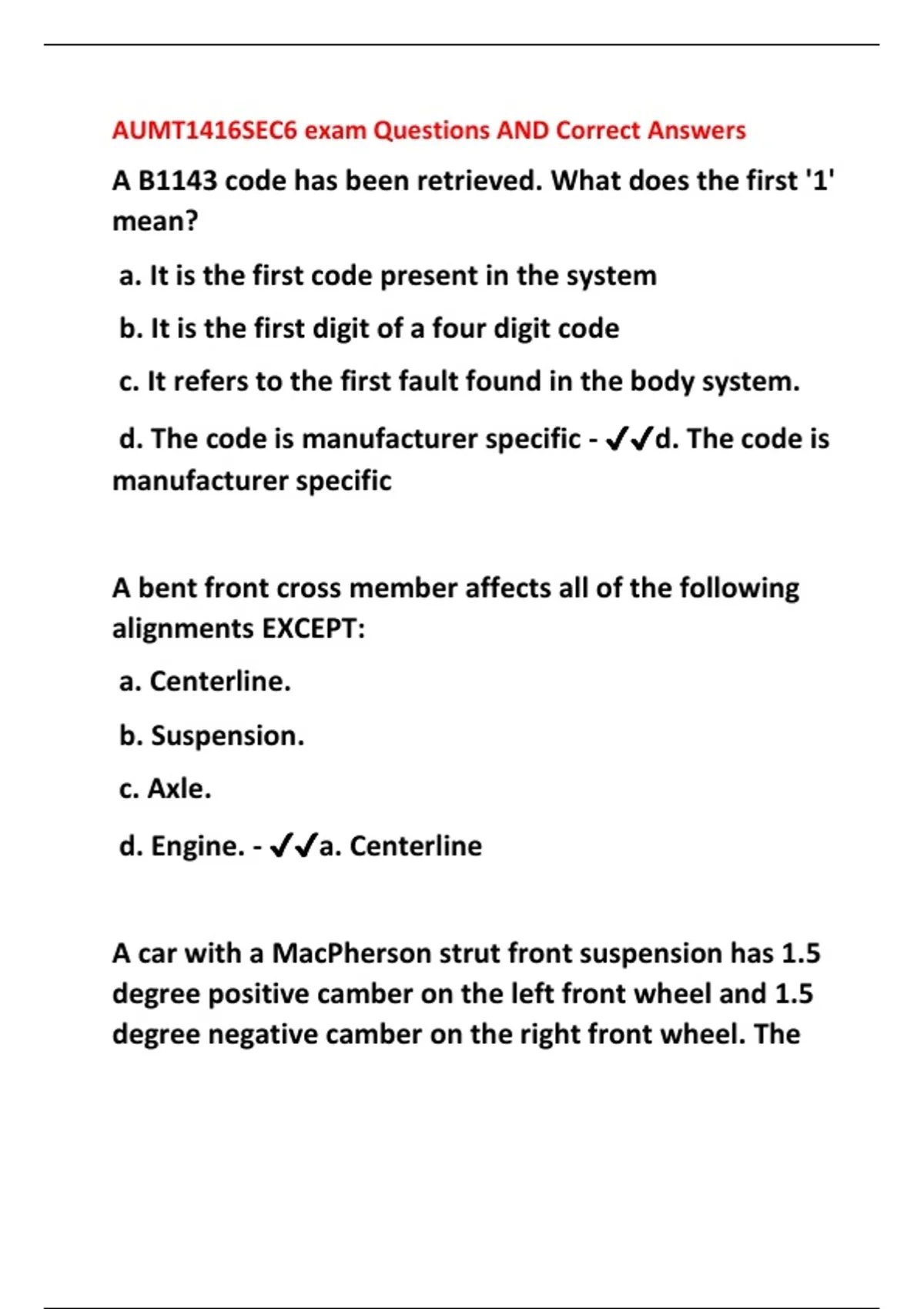

AUMT1416SEC6 exam Questions AND Correct Answers
A B1143 code has been retrieved. What does the first '1'
mean?
a. It is the first code present in the system
b. It is the first digit of a four digit code
c. It refers to the first fault found in the body system.
d. The code is manufacturer specific - ✔✔d. The code is
manufacturer specific
A bent front cross member affects all of the following
alignments EXCEPT:
a. Centerline.
b. Suspension.
c. Axle.
d. Engine. - ✔✔a. Centerline
A car with a MacPherson strut front suspension has 1.5
degree positive camber on the left front wheel and 1.5
degree negative camber on the right front wheel. The
,most likely cause of this problem is: - ✔✔Engine
Cradle/subframe shifted right
A driver complains of harsh riding and the suspension
height is normal. The most likely cause of this problem
is: - ✔✔Excessive positive caster on both front wheels.
A front-wheel-drive car has an improper toe-out on
turns setting, and a visual check indicates all the
steering linkage and suspension components are
satisfactory. The most likely cause of this problem is: -
✔✔A front strut tower that is out of position.
A front-wheel-drive vehicle with an independent rear
suspension pulls to the right when driving straight
ahead. All the front suspension alignment angles are
within specifications. The most likely cause of this
problem is: - ✔✔Excessive toe-out on the right rear
wheel.
,A light-duty truck with a one-piece rear axle housing
and a leaf-spring rear suspension has excessive toe-out
on the left rear wheel and too much toe-in on the right
rear wheel. The most likely cause of this problem is: -
✔✔A broken center bolt in the left rear spring.
A magnetheological shock absorber will probably most
likely be found on a: - ✔✔Mercedes sedan
A magnetheological shock absorber will provide:
a. easier driving effort
b. All of the above
c. a better ride for the passengers.
d. a greater reduction of the shock. - ✔✔b. All of the
above
A P0441 DTC is retrieved. What does the '0' mean? -
✔✔indicates the code is an on-board-diagnostic code
, A pickup truck with a MacPherson strut front
suspension pulls to the left. Preliminary inspection
shows that the SAI is correct, but the camber of the
right front wheel is -1 1/4 degrees.
Technician A says a bent spindle could be the cause.
Technician B says the problem may be a worn-out strut.
Who is correct? - ✔✔A only
A tire has excessive wear at each edge of the thread.
This could be caused by: - ✔✔underinflation
A tire shows extreme wear on the outer thread. The
wear is not present on the third thread and none on the
center thread. Technician A says this is probably caused
by too much positive camber. Technician B says this
wear is a sign of incorrect toe. Who is correct? - ✔✔A
only
A vehicle has a drift to one side, camber is negative on
one side and positive on the other but the cross camber
is within specification and caster is within
