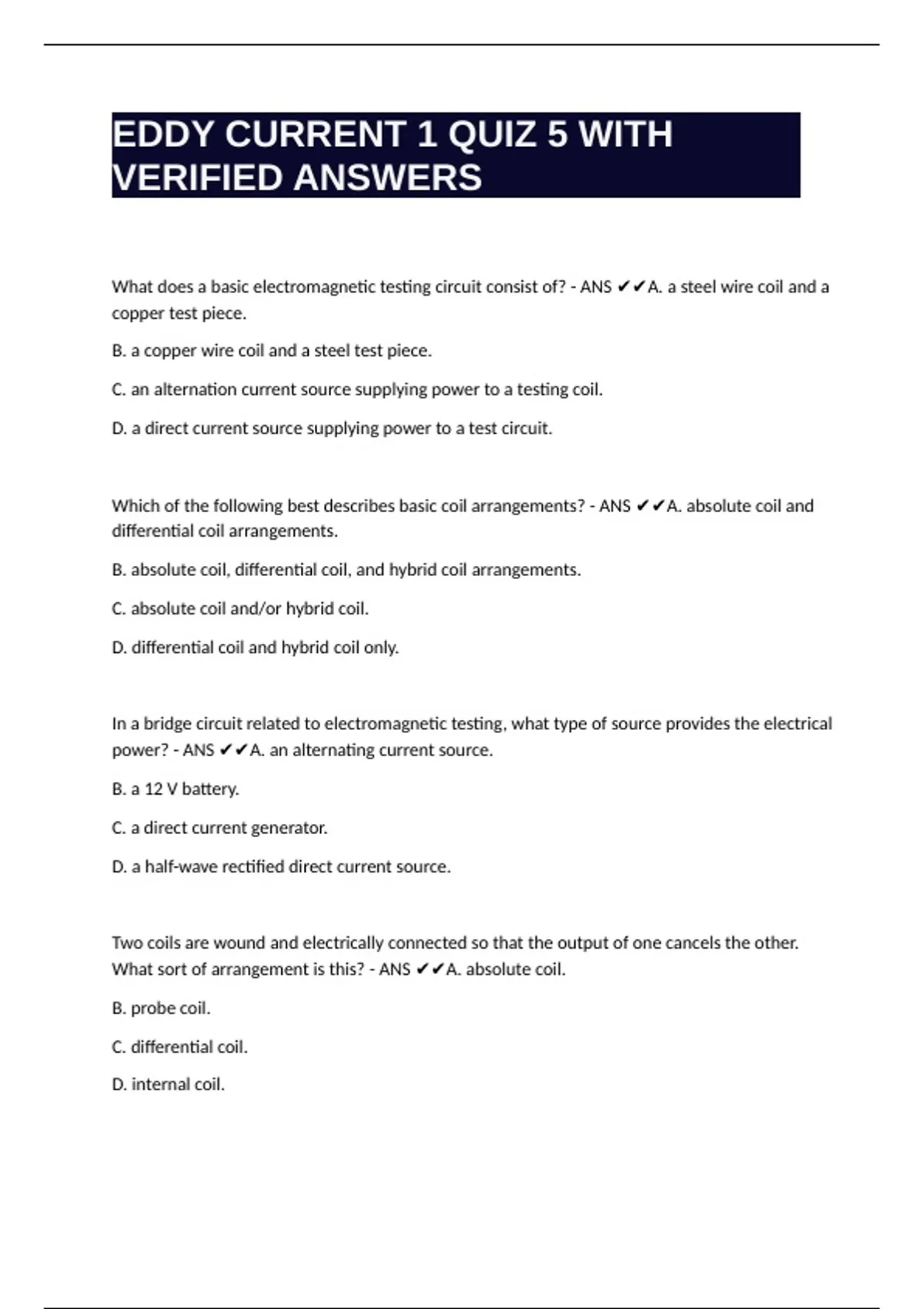

EDDY CURRENT 1 QUIZ 5 WITH VERIFIED ANSWERS

EDDY CURRENT 1 QUIZ 5 WITH
VERIFIED ANSWERS

What does a basic electromagnetic testing circuit consist of? - ANS ✔✔A. a steel wire coil and a
copper test piece.

B. a copper wire coil and a steel test piece.

C. an alternation current source supplying power to a testing coil.

D. a direct current source supplying power to a test circuit.



Which of the following best describes basic coil arrangements? - ANS ✔✔A. absolute coil and
differential coil arrangements.

B. absolute coil, differential coil, and hybrid coil arrangements.

C. absolute coil and/or hybrid coil.

D. differential coil and hybrid coil only.



In a bridge circuit related to electromagnetic testing, what type of source provides the electrical
power? - ANS ✔✔A. an alternating current source.

B. a 12 V battery.

C. a direct current generator.

D. a half-wave rectified direct current source.



Two coils are wound and electrically connected so that the output of one cancels the other.
What sort of arrangement is this? - ANS ✔✔A. absolute coil.

B. probe coil.

C. differential coil.

D. internal coil.
