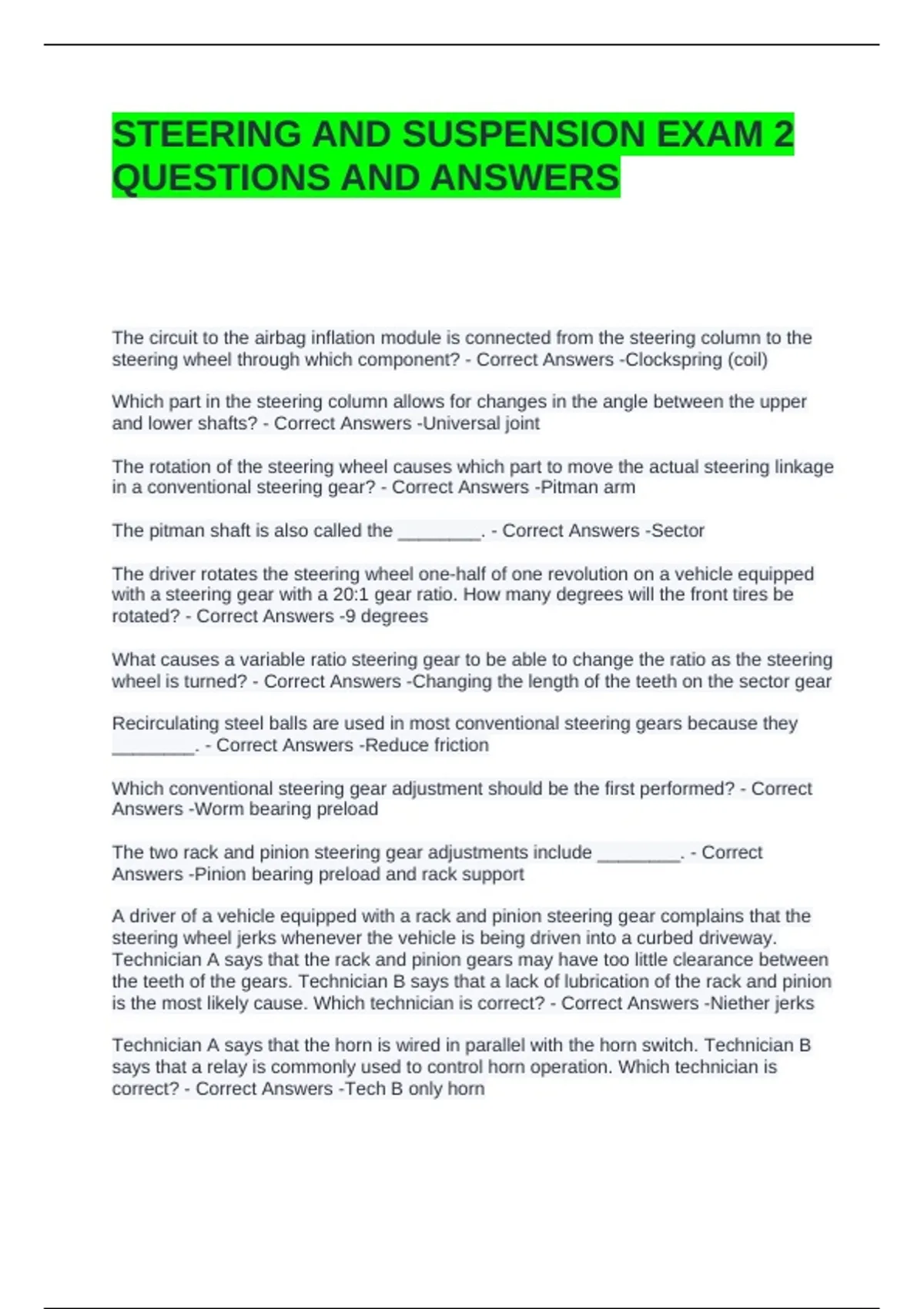

STEERING AND SUSPENSION EXAM 2
QUESTIONS AND ANSWERS
The circuit to the airbag inflation module is connected from the steering column to the
steering wheel through which component? - Correct Answers -Clockspring (coil)
Which part in the steering column allows for changes in the angle between the upper
and lower shafts? - Correct Answers -Universal joint
The rotation of the steering wheel causes which part to move the actual steering linkage
in a conventional steering gear? - Correct Answers -Pitman arm
The pitman shaft is also called the ________. - Correct Answers -Sector
The driver rotates the steering wheel one-half of one revolution on a vehicle equipped
with a steering gear with a 20:1 gear ratio. How many degrees will the front tires be
rotated? - Correct Answers -9 degrees
What causes a variable ratio steering gear to be able to change the ratio as the steering
wheel is turned? - Correct Answers -Changing the length of the teeth on the sector gear
Recirculating steel balls are used in most conventional steering gears because they
________. - Correct Answers -Reduce friction
Which conventional steering gear adjustment should be the first performed? - Correct
Answers -Worm bearing preload
The two rack and pinion steering gear adjustments include ________. - Correct
Answers -Pinion bearing preload and rack support
A driver of a vehicle equipped with a rack and pinion steering gear complains that the
steering wheel jerks whenever the vehicle is being driven into a curbed driveway.
Technician A says that the rack and pinion gears may have too little clearance between
the teeth of the gears. Technician B says that a lack of lubrication of the rack and pinion
is the most likely cause. Which technician is correct? - Correct Answers -Niether jerks
Technician A says that the horn is wired in parallel with the horn switch. Technician B
says that a relay is commonly used to control horn operation. Which technician is
correct? - Correct Answers -Tech B only horn
, Which gas is used to fill the airbag during airbag deployment? - Correct Answers -
Nirtogen
Technician A says that a flexible coupling may be used to connect the steering shaft to
the gear input shaft. Technician B says that if the coupling breaks the steering will have
a loose feel. Which technician is correct? - Correct Answers -Both techs coupling
Technician A says that federal law requires all new vehicles to be equipped with
collapsible steering columns. Technician B says that a hammer should be used to install
a steering wheel onto the steering shaft. Which technician is correct? - Correct Answers
-A only collapsible
Which component is NOT a safety requirement for steering column systems? - Correct
Answers -Sector shaft
Technician A says that the multifunction switch operates the turn signals, windshield
wiper and washer switch, and the headlight dimmer switch. Technician B says that the
ignition switch is built into the lock cylinder. Which technician is correct? - Correct
Answers -Tech A only switch
What component locks the steering wheel in place when the driver removes the key? -
Correct Answers -Lock plate
Technician A says that the front wheels are able to rotate through 60-80 degrees of
rotation. Technician B says that turning the steering wheel all the way left then all the
way right is turning the wheel "lock to lock." Which technician is correct? - Correct
Answers -Both techs rotate
Which component of a rack and pinion steering gear is connected to the steering shaft?
- Correct Answers -The pinion
The spring rate of a spring is measured in units of ________. - Correct Answers -lb. per
inch
Two technicians are discussing torsion bars. Technician A says that many torsion bars
are adjustable to allow for ride height adjustment. Technician B says that torsion bars
are usually marked left and right and should not be switched side to side. Which
technician is correct? - Correct Answers -Both torsion
What component(s) is(are) considered to be unsprung weight? - Correct Answers -
Wheels and tired
Two technicians are discussing MacPherson struts. Technician A says that in most
applications the entire strut assembly rotates when the front wheels are turned.
Technician B says that a typical MacPherson strut suspension system uses only one
