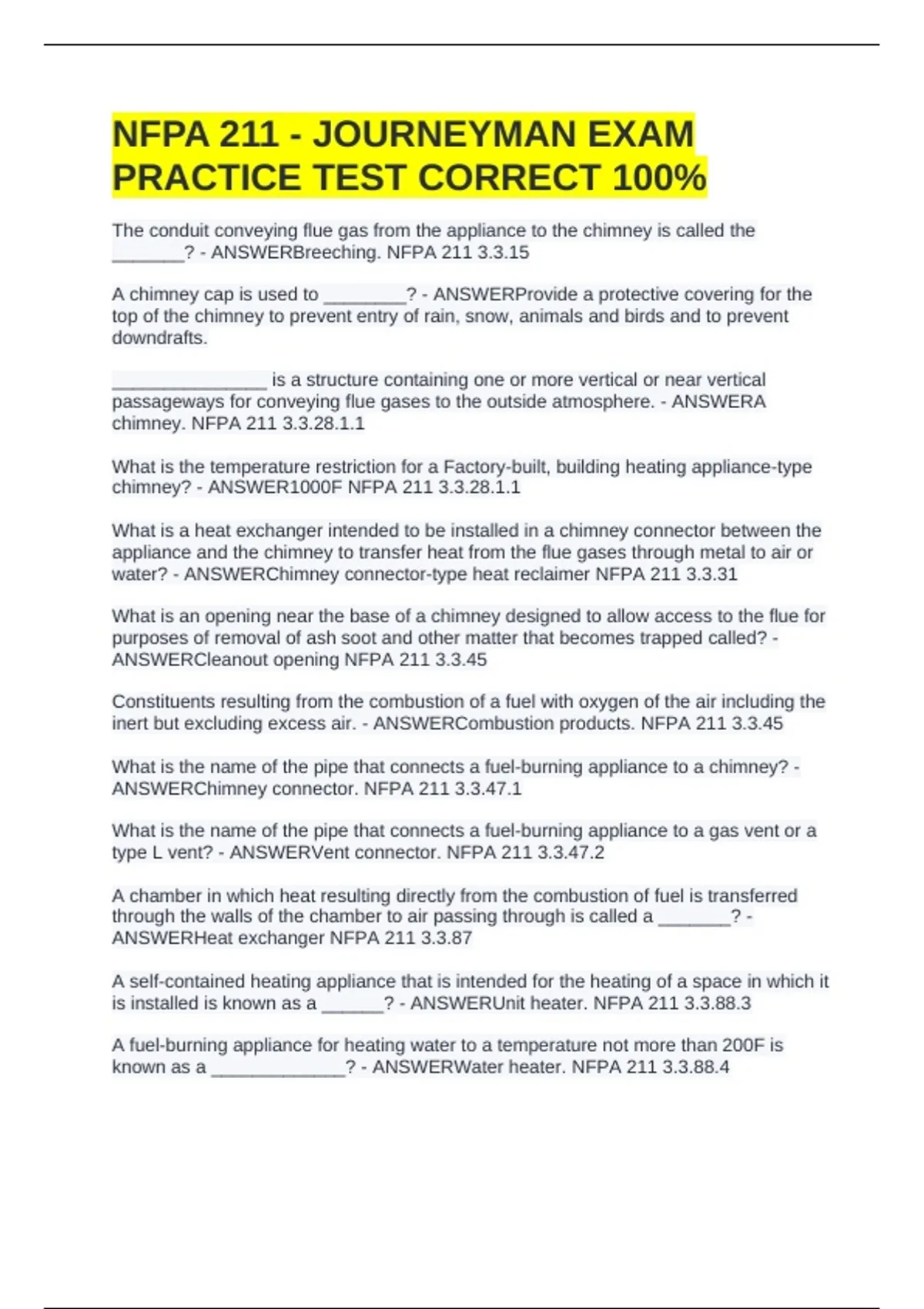

NFPA 211 - JOURNEYMAN EXAM
PRACTICE TEST CORRECT 100%
The conduit conveying flue gas from the appliance to the chimney is called the
_______? - ANSWERBreeching. NFPA 211 3.3.15
A chimney cap is used to ________? - ANSWERProvide a protective covering for the
top of the chimney to prevent entry of rain, snow, animals and birds and to prevent
downdrafts.
_______________ is a structure containing one or more vertical or near vertical
passageways for conveying flue gases to the outside atmosphere. - ANSWERA
chimney. NFPA 211 3.3.28.1.1
What is the temperature restriction for a Factory-built, building heating appliance-type
chimney? - ANSWER1000F NFPA 211 3.3.28.1.1
What is a heat exchanger intended to be installed in a chimney connector between the
appliance and the chimney to transfer heat from the flue gases through metal to air or
water? - ANSWERChimney connector-type heat reclaimer NFPA 211 3.3.31
What is an opening near the base of a chimney designed to allow access to the flue for
purposes of removal of ash soot and other matter that becomes trapped called? -
ANSWERCleanout opening NFPA 211 3.3.45
Constituents resulting from the combustion of a fuel with oxygen of the air including the
inert but excluding excess air. - ANSWERCombustion products. NFPA 211 3.3.45
What is the name of the pipe that connects a fuel-burning appliance to a chimney? -
ANSWERChimney connector. NFPA 211 3.3.47.1
What is the name of the pipe that connects a fuel-burning appliance to a gas vent or a
type L vent? - ANSWERVent connector. NFPA 211 3.3.47.2
A chamber in which heat resulting directly from the combustion of fuel is transferred
through the walls of the chamber to air passing through is called a _______? -
ANSWERHeat exchanger NFPA 211 3.3.87
A self-contained heating appliance that is intended for the heating of a space in which it
is installed is known as a ______? - ANSWERUnit heater. NFPA 211 3.3.88.3
A fuel-burning appliance for heating water to a temperature not more than 200F is
known as a _____________? - ANSWERWater heater. NFPA 211 3.3.88.4
