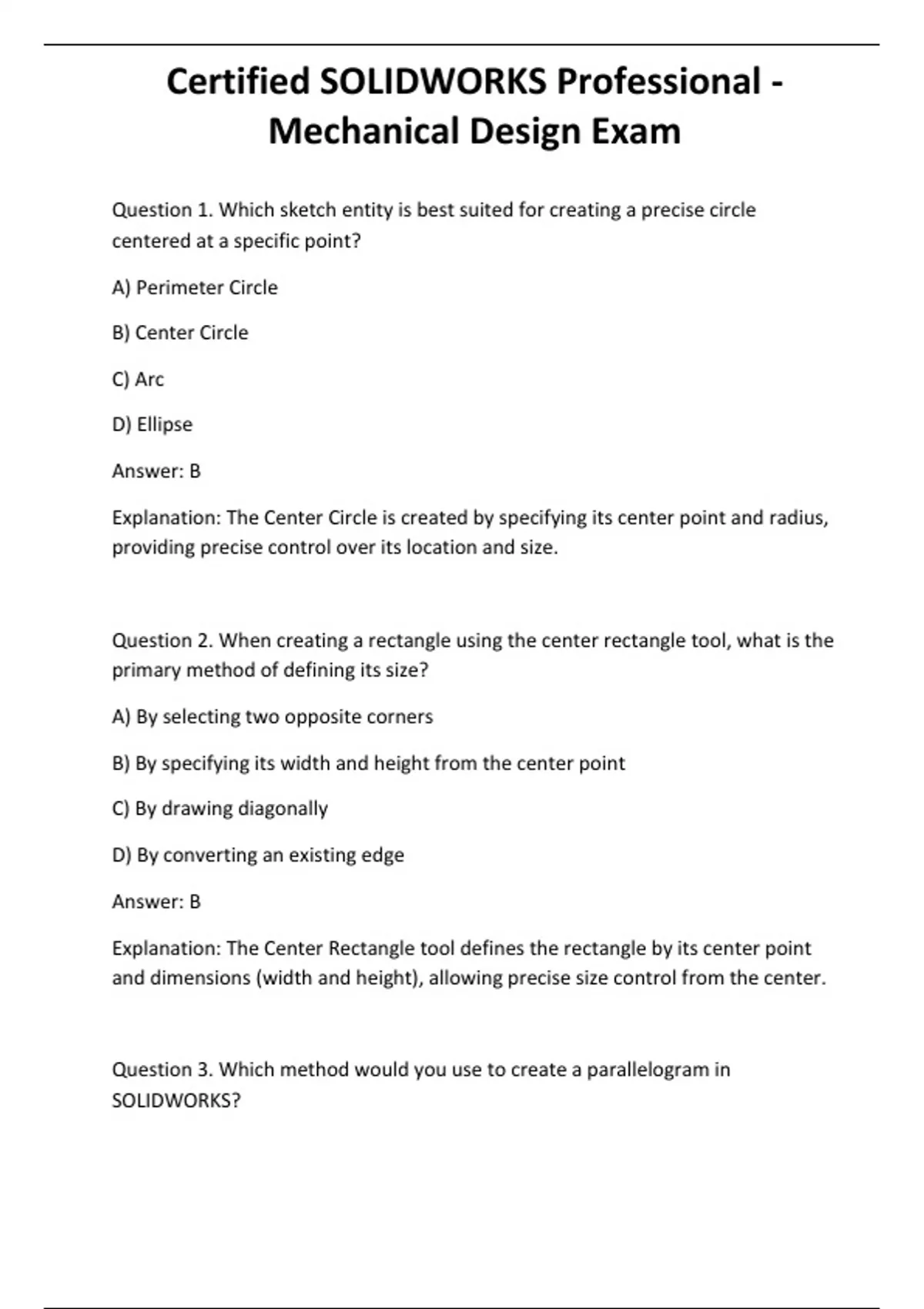

Certified SOLIDWORKS Professional -
Mechanical Design Exam
Question 1. Which sketch entity is best suited for creating a precise circle
centered at a specific point?
A) Perimeter Circle
B) Center Circle
C) Arc
D) Ellipse
Answer: B
Explanation: The Center Circle is created by specifying its center point and radius,
providing precise control over its location and size.
Question 2. When creating a rectangle using the center rectangle tool, what is the
primary method of defining its size?
A) By selecting two opposite corners
B) By specifying its width and height from the center point
C) By drawing diagonally
D) By converting an existing edge
Answer: B
Explanation: The Center Rectangle tool defines the rectangle by its center point
and dimensions (width and height), allowing precise size control from the center.
Question 3. Which method would you use to create a parallelogram in
SOLIDWORKS?
, Certified SOLIDWORKS Professional -
Mechanical Design Exam
A) Use the Polygon tool
B) Draw two parallel lines and connect their ends
C) Use a center rectangle and apply the Parallelogram relation
D) Draw a rectangle and then skew it
Answer: C
Explanation: Drawing a rectangle and applying the Parallelogram relation
between sides constrains the shape as a parallelogram.
Question 4. To create a 3-point arc, which three points are necessary?
A) Start point, end point, and radius
B) Center point, start point, end point
C) Start point, end point, and a point on the arc
D) Two points and an angle
Answer: C
Explanation: A 3-point arc is defined by the start point, end point, and a third
point on the arc to determine its curvature.
Question 5. Which sketch tool is most appropriate for creating an ellipse?
A) Spline
B) Parabola tool
C) Ellipse tool
, Certified SOLIDWORKS Professional -
Mechanical Design Exam
D) Circle tool
Answer: C
Explanation: The Ellipse tool allows creating an ellipse by specifying its major and
minor axes.
Question 6. How does a style spline differ from a regular spline?
A) It is fixed and cannot be edited
B) It is based on mathematical equations defining its shape
C) It is used only for decorative sketches
D) It automatically converts into a curve
Answer: B
Explanation: Style splines are driven by mathematical equations, providing precise
control over their shape, unlike regular splines which are freeform.
Question 7. Which slot type is best used for creating a straight slot with a defined
length?
A) Arc Slot
B) Centerpoint Arc Slot
C) Straight Slot
D) Polygon Slot
Answer: C
, Certified SOLIDWORKS Professional -
Mechanical Design Exam
Explanation: The Straight Slot creates a slot with a specified length and width,
suitable for precise linear slots.
Question 8. When creating an inscribed polygon, what is the key defining
characteristic?
A) All vertices lie on a circle
B) All sides are equal
C) It is inscribed within an existing circle
D) It has a fixed number of sides
Answer: A
Explanation: An inscribed polygon is one where all vertices lie on a common circle,
defining its size and shape.
Question 9. Which method is used to create a reference point in a sketch?
A) Use the Point tool and place it freely
B) Convert an existing edge
C) Draw a circle and convert to point
D) Use the centerline tool
Answer: A
Explanation: The Point tool allows placing reference points at specific locations for
use as references in sketches.
