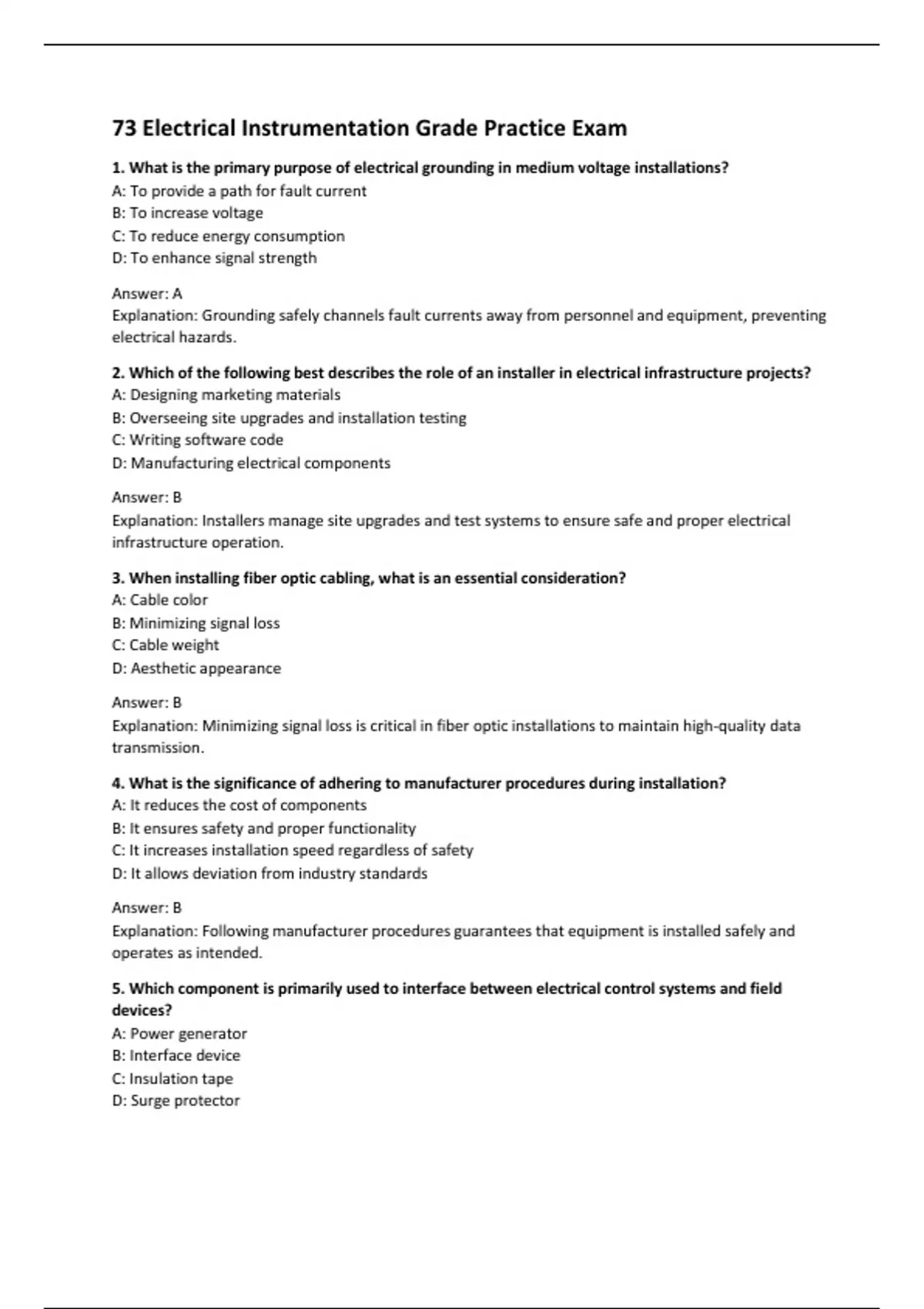

73 Electrical Instrumentation Grade Practice Exam
1. What is the primary purpose of electrical grounding in medium voltage installations?
A: To provide a path for fault current
B: To increase voltage
C: To reduce energy consumption
D: To enhance signal strength
Answer: A
Explanation: Grounding safely channels fault currents away from personnel and equipment, preventing
electrical hazards.
2. Which of the following best describes the role of an installer in electrical infrastructure projects?
A: Designing marketing materials
B: Overseeing site upgrades and installation testing
C: Writing software code
D: Manufacturing electrical components
Answer: B
Explanation: Installers manage site upgrades and test systems to ensure safe and proper electrical
infrastructure operation.
3. When installing fiber optic cabling, what is an essential consideration?
A: Cable color
B: Minimizing signal loss
C: Cable weight
D: Aesthetic appearance
Answer: B
Explanation: Minimizing signal loss is critical in fiber optic installations to maintain high-quality data
transmission.
4. What is the significance of adhering to manufacturer procedures during installation?
A: It reduces the cost of components
B: It ensures safety and proper functionality
C: It increases installation speed regardless of safety
D: It allows deviation from industry standards
Answer: B
Explanation: Following manufacturer procedures guarantees that equipment is installed safely and
operates as intended.
5. Which component is primarily used to interface between electrical control systems and field
devices?
A: Power generator
B: Interface device
C: Insulation tape
D: Surge protector
,Answer: B
Explanation: Interface devices link control systems and field devices, ensuring effective communication
and operation.
6. In the context of electrical installations, what does the term "system-wide testing" imply?
A: Testing only the control room equipment
B: Testing the entire electrical infrastructure
C: Testing cables individually
D: Testing software programs only
Answer: B
Explanation: System-wide testing verifies that every component within the electrical network is
functioning correctly.
7. What is a critical factor when planning new construction projects involving electrical installations?
A: Number of windows
B: Electrical load requirements
C: Building facade design
D: Landscaping features
Answer: B
Explanation: Understanding electrical load requirements is essential for designing safe and efficient
electrical systems.
8. Which safety measure is vital when working with medium voltage equipment?
A: Using plastic tools
B: Wearing appropriate personal protective equipment
C: Operating without supervision
D: Ignoring manufacturer guidelines
Answer: B
Explanation: Personal protective equipment (PPE) is necessary to protect technicians from the risks
associated with medium voltage work.
9. What role do vendors and hardware specialists play during electrical installations?
A: They manage administrative tasks
B: They provide technical expertise and product support
C: They design company logos
D: They perform landscaping
Answer: B
Explanation: Vendors and specialists offer the technical knowledge and support essential for correct
installation and troubleshooting.
10. Why is it important to review construction plans before bidding on a project?
A: To ensure project profitability
B: To identify potential design flaws and ensure compliance
,C: To select the best colors for cables
D: To delay the project start
Answer: B
Explanation: Reviewing plans helps identify design issues and ensures that the installation meets
required safety and performance standards.
11. Which of the following is a responsibility during the inspection phase of electrical installations?
A: Designing new control systems
B: Performing tests on circuits to detect issues
C: Installing decorative lighting
D: Scheduling employee vacations
Answer: B
Explanation: Inspections involve testing electrical circuits to ensure they are safe and functioning
properly.
12. What is a key aspect of quality control during capital improvement project inspections?
A: Color coordination of cables
B: Verifying that all components meet safety and performance standards
C: Increasing project budget
D: Reducing documentation requirements
Answer: B
Explanation: Quality control ensures that every installed component complies with safety and
performance specifications.
13. How does design contribute to electrical instrumentation projects?
A: By creating electrical equipment manuals
B: By developing logic instructions and control programs
C: By arranging team building events
D: By selecting employee uniforms
Answer: B
Explanation: Design involves creating the control programs and logic instructions essential for the
proper operation of electrical systems.
14. Which programming standard is used for designing logic instructions in control systems?
A: HTML5
B: IEC 61131-3
C: ISO 9001
D: IEEE 802.11
Answer: B
Explanation: IEC 61131-3 is the international standard for programming industrial control systems in
electrical instrumentation.
15. What does "process analyzer installations" refer to in design tasks?
A: Installing weather monitoring systems
, B: Setting up devices to analyze process data
C: Installing computer networks
D: Designing office layouts
Answer: B
Explanation: Process analyzer installations involve setting up equipment that measures and analyzes
process parameters.
16. Which design aspect is involved in creating motor control circuits?
A: Arranging employee seating
B: Developing circuitry to control motor functions
C: Designing marketing campaigns
D: Building physical infrastructure only
Answer: B
Explanation: Motor control circuits are designed to regulate and control motor operations effectively.
17. In installation projects, why is proper grounding essential?
A: It enhances signal strength
B: It provides a safety mechanism by dissipating fault currents
C: It increases installation speed
D: It reduces installation costs
Answer: B
Explanation: Proper grounding safely dissipates fault currents, reducing the risk of electrical shock and
damage.
18. What is the main focus during the planning stage of site upgrades in electrical installations?
A: Choosing decorative elements
B: Evaluating existing infrastructure and future needs
C: Hiring new staff
D: Organizing social events
Answer: B
Explanation: Planning involves evaluating current systems and anticipating future electrical
requirements for safe upgrades.
19. How can electrical installers contribute to renewable energy solutions in installations?
A: By installing solar and wind generation systems
B: By designing office interiors
C: By scheduling maintenance breaks
D: By choosing new employee uniforms
Answer: A
Explanation: Installers often integrate renewable energy systems such as solar and wind to create
sustainable electrical infrastructures.
20. What is an essential characteristic of medium voltage switchgear?
A: Lightweight design
1. What is the primary purpose of electrical grounding in medium voltage installations?
A: To provide a path for fault current
B: To increase voltage
C: To reduce energy consumption
D: To enhance signal strength
Answer: A
Explanation: Grounding safely channels fault currents away from personnel and equipment, preventing
electrical hazards.
2. Which of the following best describes the role of an installer in electrical infrastructure projects?
A: Designing marketing materials
B: Overseeing site upgrades and installation testing
C: Writing software code
D: Manufacturing electrical components
Answer: B
Explanation: Installers manage site upgrades and test systems to ensure safe and proper electrical
infrastructure operation.
3. When installing fiber optic cabling, what is an essential consideration?
A: Cable color
B: Minimizing signal loss
C: Cable weight
D: Aesthetic appearance
Answer: B
Explanation: Minimizing signal loss is critical in fiber optic installations to maintain high-quality data
transmission.
4. What is the significance of adhering to manufacturer procedures during installation?
A: It reduces the cost of components
B: It ensures safety and proper functionality
C: It increases installation speed regardless of safety
D: It allows deviation from industry standards
Answer: B
Explanation: Following manufacturer procedures guarantees that equipment is installed safely and
operates as intended.
5. Which component is primarily used to interface between electrical control systems and field
devices?
A: Power generator
B: Interface device
C: Insulation tape
D: Surge protector
,Answer: B
Explanation: Interface devices link control systems and field devices, ensuring effective communication
and operation.
6. In the context of electrical installations, what does the term "system-wide testing" imply?
A: Testing only the control room equipment
B: Testing the entire electrical infrastructure
C: Testing cables individually
D: Testing software programs only
Answer: B
Explanation: System-wide testing verifies that every component within the electrical network is
functioning correctly.
7. What is a critical factor when planning new construction projects involving electrical installations?
A: Number of windows
B: Electrical load requirements
C: Building facade design
D: Landscaping features
Answer: B
Explanation: Understanding electrical load requirements is essential for designing safe and efficient
electrical systems.
8. Which safety measure is vital when working with medium voltage equipment?
A: Using plastic tools
B: Wearing appropriate personal protective equipment
C: Operating without supervision
D: Ignoring manufacturer guidelines
Answer: B
Explanation: Personal protective equipment (PPE) is necessary to protect technicians from the risks
associated with medium voltage work.
9. What role do vendors and hardware specialists play during electrical installations?
A: They manage administrative tasks
B: They provide technical expertise and product support
C: They design company logos
D: They perform landscaping
Answer: B
Explanation: Vendors and specialists offer the technical knowledge and support essential for correct
installation and troubleshooting.
10. Why is it important to review construction plans before bidding on a project?
A: To ensure project profitability
B: To identify potential design flaws and ensure compliance
,C: To select the best colors for cables
D: To delay the project start
Answer: B
Explanation: Reviewing plans helps identify design issues and ensures that the installation meets
required safety and performance standards.
11. Which of the following is a responsibility during the inspection phase of electrical installations?
A: Designing new control systems
B: Performing tests on circuits to detect issues
C: Installing decorative lighting
D: Scheduling employee vacations
Answer: B
Explanation: Inspections involve testing electrical circuits to ensure they are safe and functioning
properly.
12. What is a key aspect of quality control during capital improvement project inspections?
A: Color coordination of cables
B: Verifying that all components meet safety and performance standards
C: Increasing project budget
D: Reducing documentation requirements
Answer: B
Explanation: Quality control ensures that every installed component complies with safety and
performance specifications.
13. How does design contribute to electrical instrumentation projects?
A: By creating electrical equipment manuals
B: By developing logic instructions and control programs
C: By arranging team building events
D: By selecting employee uniforms
Answer: B
Explanation: Design involves creating the control programs and logic instructions essential for the
proper operation of electrical systems.
14. Which programming standard is used for designing logic instructions in control systems?
A: HTML5
B: IEC 61131-3
C: ISO 9001
D: IEEE 802.11
Answer: B
Explanation: IEC 61131-3 is the international standard for programming industrial control systems in
electrical instrumentation.
15. What does "process analyzer installations" refer to in design tasks?
A: Installing weather monitoring systems
, B: Setting up devices to analyze process data
C: Installing computer networks
D: Designing office layouts
Answer: B
Explanation: Process analyzer installations involve setting up equipment that measures and analyzes
process parameters.
16. Which design aspect is involved in creating motor control circuits?
A: Arranging employee seating
B: Developing circuitry to control motor functions
C: Designing marketing campaigns
D: Building physical infrastructure only
Answer: B
Explanation: Motor control circuits are designed to regulate and control motor operations effectively.
17. In installation projects, why is proper grounding essential?
A: It enhances signal strength
B: It provides a safety mechanism by dissipating fault currents
C: It increases installation speed
D: It reduces installation costs
Answer: B
Explanation: Proper grounding safely dissipates fault currents, reducing the risk of electrical shock and
damage.
18. What is the main focus during the planning stage of site upgrades in electrical installations?
A: Choosing decorative elements
B: Evaluating existing infrastructure and future needs
C: Hiring new staff
D: Organizing social events
Answer: B
Explanation: Planning involves evaluating current systems and anticipating future electrical
requirements for safe upgrades.
19. How can electrical installers contribute to renewable energy solutions in installations?
A: By installing solar and wind generation systems
B: By designing office interiors
C: By scheduling maintenance breaks
D: By choosing new employee uniforms
Answer: A
Explanation: Installers often integrate renewable energy systems such as solar and wind to create
sustainable electrical infrastructures.
20. What is an essential characteristic of medium voltage switchgear?
A: Lightweight design
