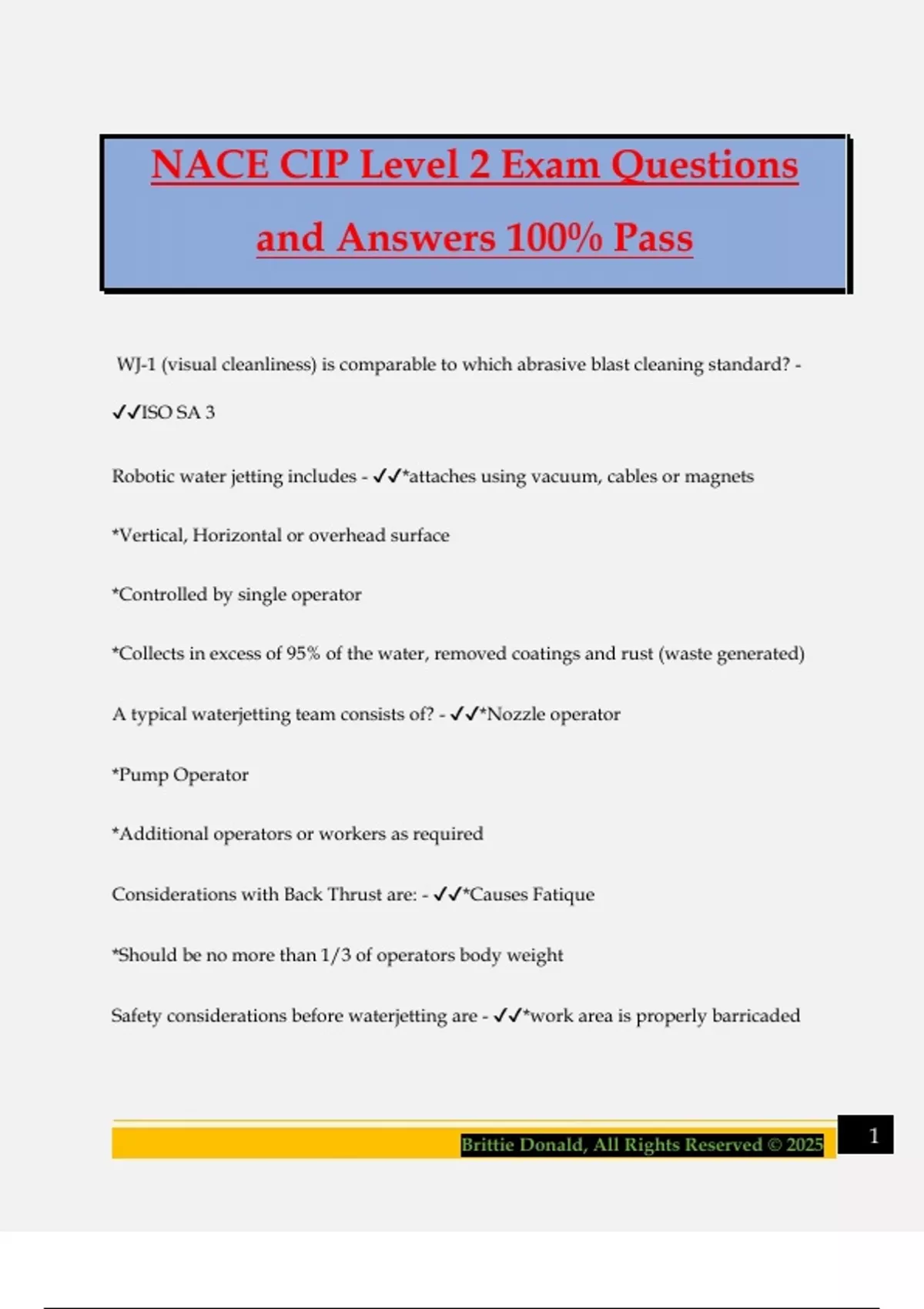

NACE CIP Level 2 Exam Questions
and Answers 100% Pass
WJ-1 (visual cleanliness) is comparable to which abrasive blast cleaning standard? -
✔✔ISO SA 3
Robotic water jetting includes - ✔✔*attaches using vacuum, cables or magnets
*Vertical, Horizontal or overhead surface
*Controlled by single operator
*Collects in excess of 95% of the water, removed coatings and rust (waste generated)
A typical waterjetting team consists of? - ✔✔*Nozzle operator
*Pump Operator
*Additional operators or workers as required
Considerations with Back Thrust are: - ✔✔*Causes Fatique
*Should be no more than 1/3 of operators body weight
Safety considerations before waterjetting are - ✔✔*work area is properly barricaded
Brittie Donald, All Rights Reserved © 2025 1
,*Electrical equipment protected from water
*Electrical connections are not allowed to sit in water
*All fittings and hoses are in good condition / proper pressure rating
*Nozzles are free of obstructions
*System is flushed clean and air removed
*The dump system and all control systems are
operational
*Proper LockOut/ TagOut provisions in place
*Confined entry requirements addressed
Waterjetting advantages include? - ✔✔*Worker Safety
*Worker air quality
*Less stringent respiratory requirements
*No dust or contamination or clean up
*Environmentally friendly
*Requires less cleanup
Waterjetting disadvantages include: - ✔✔*Waterjetting does not leave a surface profile
*Equipment is very expensive
Brittie Donald, All Rights Reserved © 2025 2
,*Danger of Ultra High Pressure hose breaking
*Danger of injection into the skin or serious cuts
*Collecting and disposing of the contaminated
Water
*Proficient operators needed
Cause of Blistering on coatings? - ✔✔Oil, moisture and / or grease
Saturation point drops as? - ✔✔Air is compressed, making air wetter
Check compressor for water contamination at? - ✔✔Moisture traps, inter cooler and
aftercooler
Common Hot Dipped (HD) inspection defects - ✔✔Cracking, peeling, bare spots,
lumps, Blisters, flux inclusions, ash inclusions and dross inclusions
Describe what a Tooke Gage is and some models - ✔✔*Destructive test instrument
*Used on non-magnetic or nonferrous
Substrate
*has illuminated 50x microscope
*good from 0-100 mils
*Groove cut through coating
Brittie Donald, All Rights Reserved © 2025 3
, *Models are Mark II and Mark III
Centrifugal blast machine showing low amperage could indicate? - ✔✔*Abrasive
starved wheel or
*Flooded or choked wheel
How to rectify water contamination: - ✔✔*ensure cooling water is turned on
*Ensure drains are not plugged
*last resort is to consider installing larger or
Additional moisture traps
Air oxidization enters the coating when? - ✔✔After solvent evaporates
What is the curing method for alkyds and epoxy ester? - ✔✔Air drying
What is the NACE / SSPC standard for Surface Prep by Chemical or thermal means for
concrete? - ✔✔NACE 6 / SSPC-SP13
What are impressed current power sources - ✔✔*Rectified Commercial Power
*Solar Cells
*Generators
*Fuel cells
*Wind Powered Cells
Brittie Donald, All Rights Reserved © 2025 4
