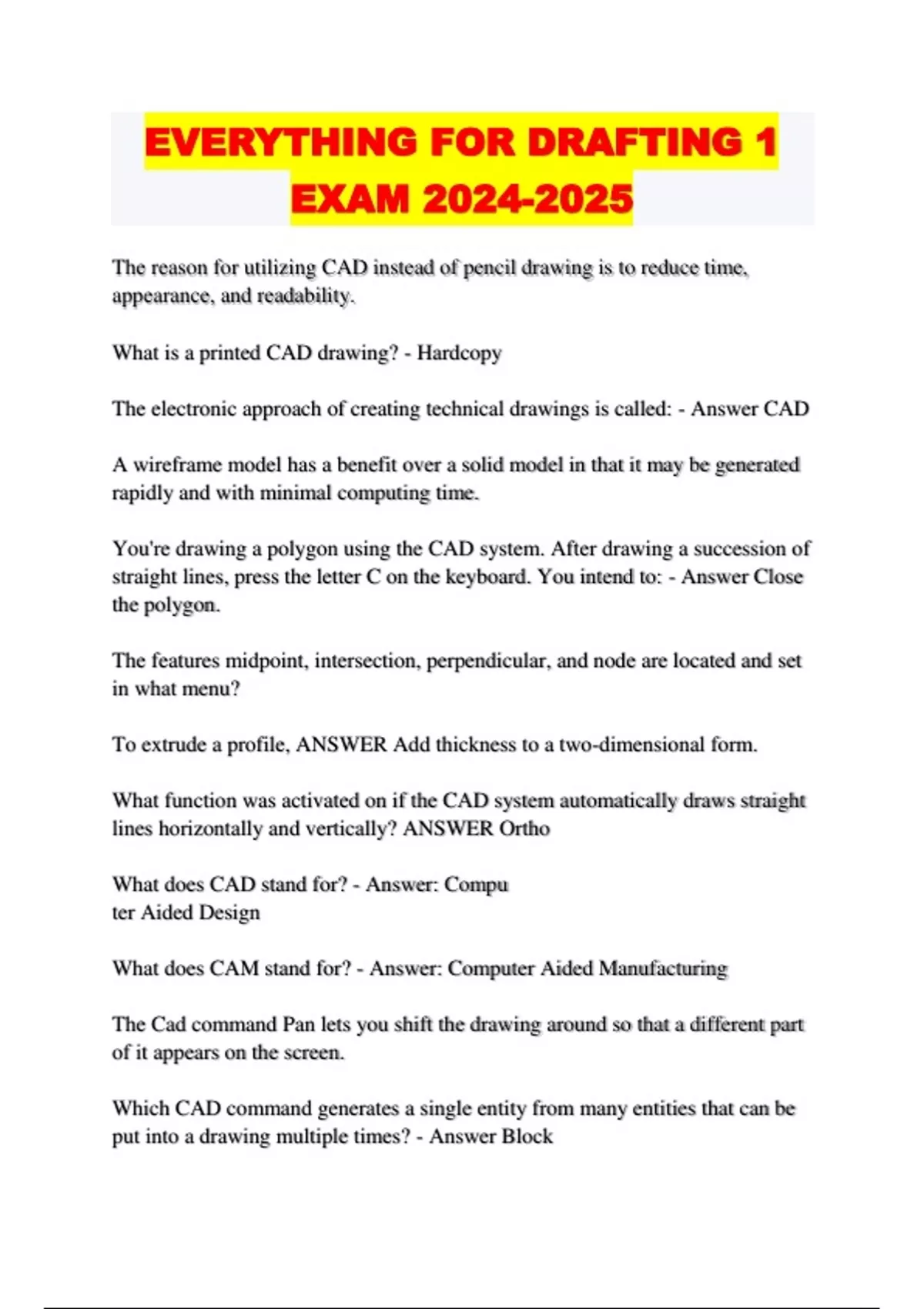

EVERYTHING FOR DRAFTING 1
EXAM 2024-2025
The reason for utilizing CAD instead of pencil drawing is to reduce time,
appearance, and readability.
What is a printed CAD drawing? - Hardcopy
The electronic approach of creating technical drawings is called: - Answer CAD
A wireframe model has a benefit over a solid model in that it may be generated
rapidly and with minimal computing time.
You're drawing a polygon using the CAD system. After drawing a succession of
straight lines, press the letter C on the keyboard. You intend to: - Answer Close
the polygon.
The features midpoint, intersection, perpendicular, and node are located and set
in what menu?
To extrude a profile, ANSWER Add thickness to a two-dimensional form.
What function was activated on if the CAD system automatically draws straight
lines horizontally and vertically? ANSWER Ortho
What does CAD stand for? - Answer: Compu
ter Aided Design
What does CAM stand for? - Answer: Computer Aided Manufacturing
The Cad command Pan lets you shift the drawing around so that a different part
of it appears on the screen.
Which CAD command generates a single entity from many entities that can be
put into a drawing multiple times? - Answer Block
, What command enlarges or reduces selected items proportionally in the X, Y,
and Z directions? - Scale
What command distributes evenly spaced point objects or blocks along the
length or perimeter of an object? Answer: divide.
What command allows you to draw a series of lines and arcs as a single entity
while specifying width? - ANSWER Polyline
Line, circle, and arc, as well as other fundamental CAD shapes, are instances of
ANSWER Draw commands.
The process of producing computer-generated drawings is known as ANSWER
CAD.
The command that permits lines to be prolonged to a specified line or item on a
CAD drawing is: ANSWER Extend
Within CAD, you can draw a circle by entering its centre point and the value of
its radius or diameter.
A hard copy is created by an ANSWER plotter.
What command enables you to edit Dimension properties such as lines and
arrows, text, fit, and primary units? - ANSWER Dimension Style
In CAD, drawing precision is made easier by using the ANSWER Snap
The CAD element that defines the size of your working space is the ANSWER
Limit.
What zoom command remembers the last five zoomed views? ANSWER
Zoom, prior.
