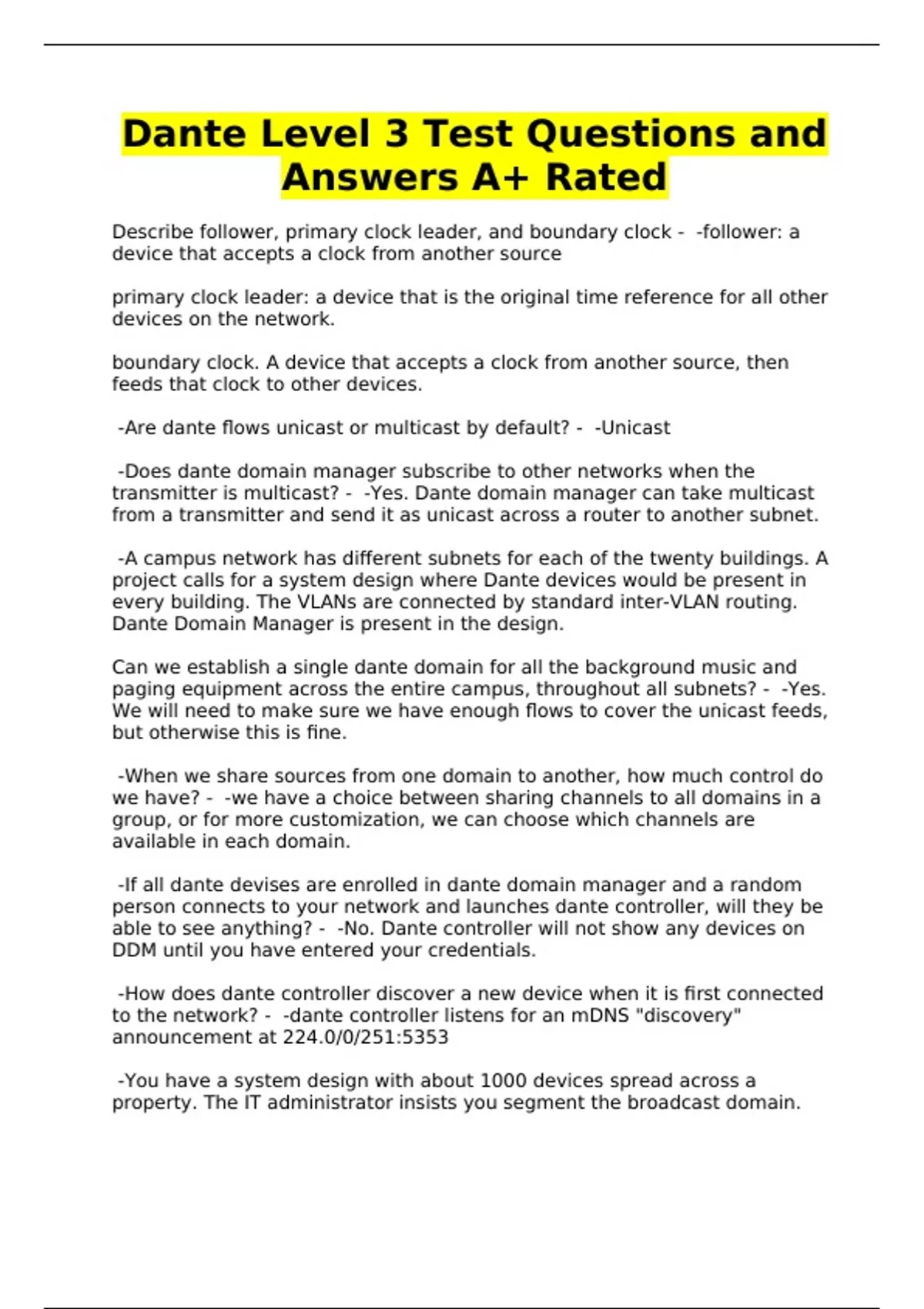

Dante Level 3 Test Questions and
Answers A+ Rated
Describe follower, primary clock leader, and boundary clock - -follower: a
device that accepts a clock from another source
primary clock leader: a device that is the original time reference for all other
devices on the network.
boundary clock. A device that accepts a clock from another source, then
feeds that clock to other devices.
-Are dante flows unicast or multicast by default? - -Unicast
-Does dante domain manager subscribe to other networks when the
transmitter is multicast? - -Yes. Dante domain manager can take multicast
from a transmitter and send it as unicast across a router to another subnet.
-A campus network has different subnets for each of the twenty buildings. A
project calls for a system design where Dante devices would be present in
every building. The VLANs are connected by standard inter-VLAN routing.
Dante Domain Manager is present in the design.
Can we establish a single dante domain for all the background music and
paging equipment across the entire campus, throughout all subnets? - -Yes.
We will need to make sure we have enough flows to cover the unicast feeds,
but otherwise this is fine.
-When we share sources from one domain to another, how much control do
we have? - -we have a choice between sharing channels to all domains in a
group, or for more customization, we can choose which channels are
available in each domain.
-If all dante devises are enrolled in dante domain manager and a random
person connects to your network and launches dante controller, will they be
able to see anything? - -No. Dante controller will not show any devices on
DDM until you have entered your credentials.
-How does dante controller discover a new device when it is first connected
to the network? - -dante controller listens for an mDNS "discovery"
announcement at 224.0/0/251:5353
-You have a system design with about 1000 devices spread across a
property. The IT administrator insists you segment the broadcast domain.
, You know audio/video signals need to flow between major systems
throughout the property. What steps do you need to do? - -Break the
network into VLANs, use unique subnets for each VLAN and connect them
with inter-VLAN routing.
Add Dante Domain Manager to manage and coordinate devices across the
layer 3 network.
-When Troubleshooting a system, what order (in terms of concepts) do we
start at and work off from? - -Connectivity---> clocking--->Subscriptions---
>Latency
-True or false: Dante devices have an unlimited number of receive flows. - -
False
-When dante devices are in red on dante controller, what might this mean? -
-Dante devices are in a different subnet than the computer running Dante
Controller.
Dante controller might be expecting to see devices on the primary network,
but it is connected to the secondary (or vice versa).
-What can you use to automatically discover a large number of devices
across multiple subnets? - -DNS-SD
-color meanings - -green: in a managed system, these channels are shared
from a device in another domain.
red: a dante device is discovered in the network, but it is in the wrong subnet
or you have primary/secondary reversed.
black: a normal dante device properly recognized on the network.
-In a dante domain manager system, what happens if we enable unicast
clocking for a second device in the subnet? - -Va clock leader will be elected
for the subnet. The other device will be follower and will be ready to take
over in case the leader is no longer present in the network.
-Dante devices remember their settings through power cycles, so they
restore functionality when they come back up. Of course, a subscription is
made between a transmitter and a receiver-so which device remembers the
connections that need to be made? - -The receiver
-Scenario: You are the AV manager for a facility that has an auditorium,
meeting spaces, and background music/paging system all on a flat, Layer 2
network. There are only about 40 devices and this is on a dedicated network,
