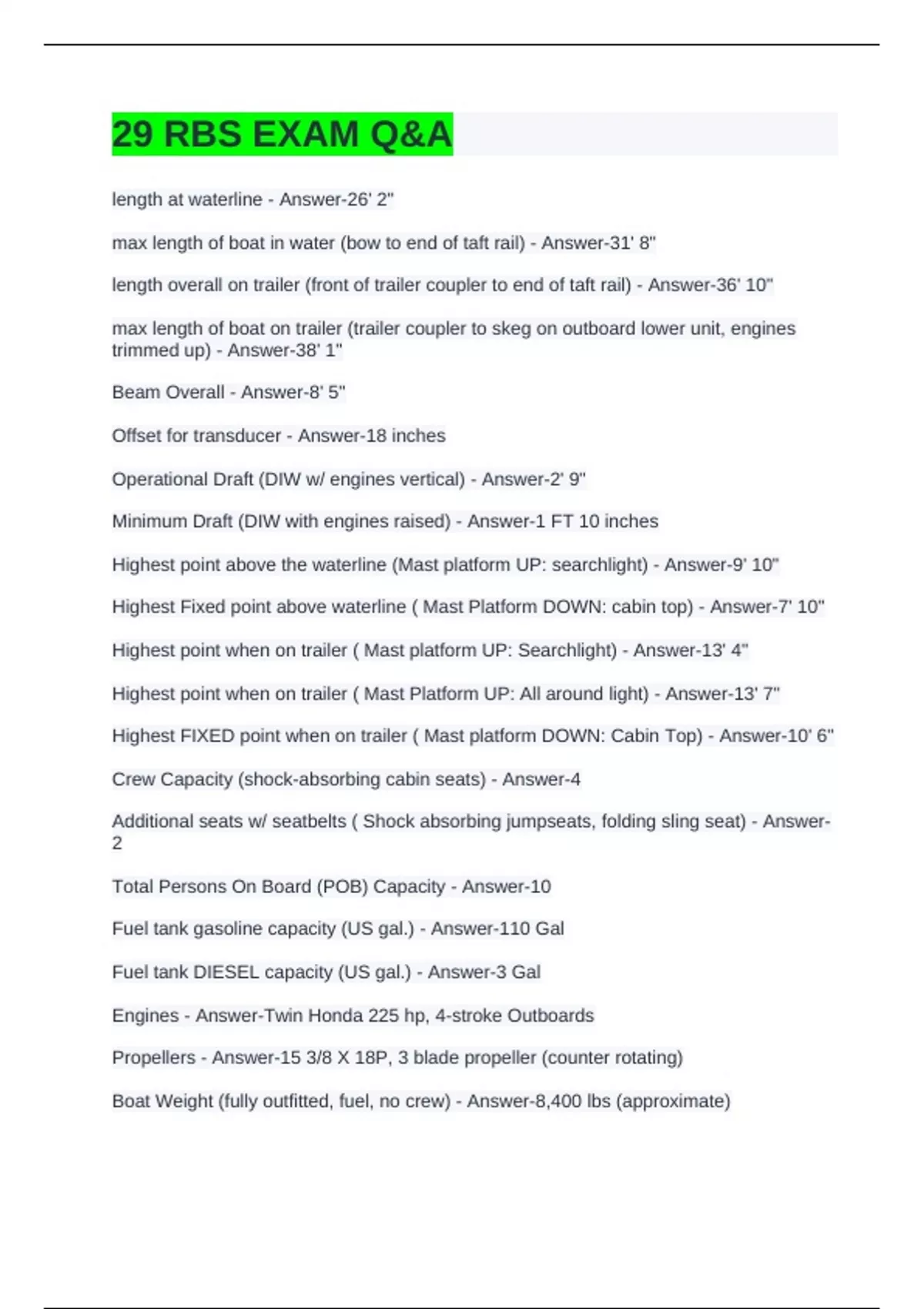

29 RBS EXAM Q&A
length at waterline - Answer-26' 2"
max length of boat in water (bow to end of taft rail) - Answer-31' 8"
length overall on trailer (front of trailer coupler to end of taft rail) - Answer-36' 10"
max length of boat on trailer (trailer coupler to skeg on outboard lower unit, engines
trimmed up) - Answer-38' 1"
Beam Overall - Answer-8' 5"
Offset for transducer - Answer-18 inches
Operational Draft (DIW w/ engines vertical) - Answer-2' 9"
Minimum Draft (DIW with engines raised) - Answer-1 FT 10 inches
Highest point above the waterline (Mast platform UP: searchlight) - Answer-9' 10"
Highest Fixed point above waterline ( Mast Platform DOWN: cabin top) - Answer-7' 10"
Highest point when on trailer ( Mast platform UP: Searchlight) - Answer-13' 4"
Highest point when on trailer ( Mast Platform UP: All around light) - Answer-13' 7"
Highest FIXED point when on trailer ( Mast platform DOWN: Cabin Top) - Answer-10' 6"
Crew Capacity (shock-absorbing cabin seats) - Answer-4
Additional seats w/ seatbelts ( Shock absorbing jumpseats, folding sling seat) - Answer-
2
Total Persons On Board (POB) Capacity - Answer-10
Fuel tank gasoline capacity (US gal.) - Answer-110 Gal
Fuel tank DIESEL capacity (US gal.) - Answer-3 Gal
Engines - Answer-Twin Honda 225 hp, 4-stroke Outboards
Propellers - Answer-15 3/8 X 18P, 3 blade propeller (counter rotating)
Boat Weight (fully outfitted, fuel, no crew) - Answer-8,400 lbs (approximate)
, Boat Maximum Weight (fully outfitted, 10 POB) - Answer-11,800 lbs (approximate)
Trailering Weight (fully outfitted, fuel, trailer, no crew) - Answer-9,960 lbs (approximate)
Maximum Speed - Answer-47 kts at 6000 rpm
crusing speed - Answer-25 kts @ 3250 RPMs
Max Range @ Cruising Speed - Answer-200 Nautical Miles
Operating outside Air Temp - Answer-0-135° (dry bulb)
Operating Water Temperature - Answer-28-105°F
Max Operating Winds - Answer-25 kts sustained
Max Operating Seas - Answer-6' (no surf)
Max Towing Capacity - Answer-10 displacement tons
Max Operating Distance from Shore - Answer-10 NM
Operation in Ice - Answer-NONE
Helicopter Capability - Answer-none
Engine Oil Specification - Answer-8 Quarts of 10w 30
Lower Unit Gear Oil - Answer-1.24 Quarts of SAE 90
Hull and Deck Construction Material - Answer-5086 Marine Grade Aluminum
Hull Design - Answer-Deep-V planing rigid monohull with a foam collar enclosed in a
polyurethane sheath
How many frames? - Answer-9, numbered from stern to bow
How many tinted spotter windows? - Answer-10
Aft Deck access hatches provide access to what? - Answer-8" access hatch- Access to
fill and vent fittings
18x24" QAWTH- Access to fuel shut off valves, fuel level sending unit, and tank ID plate
