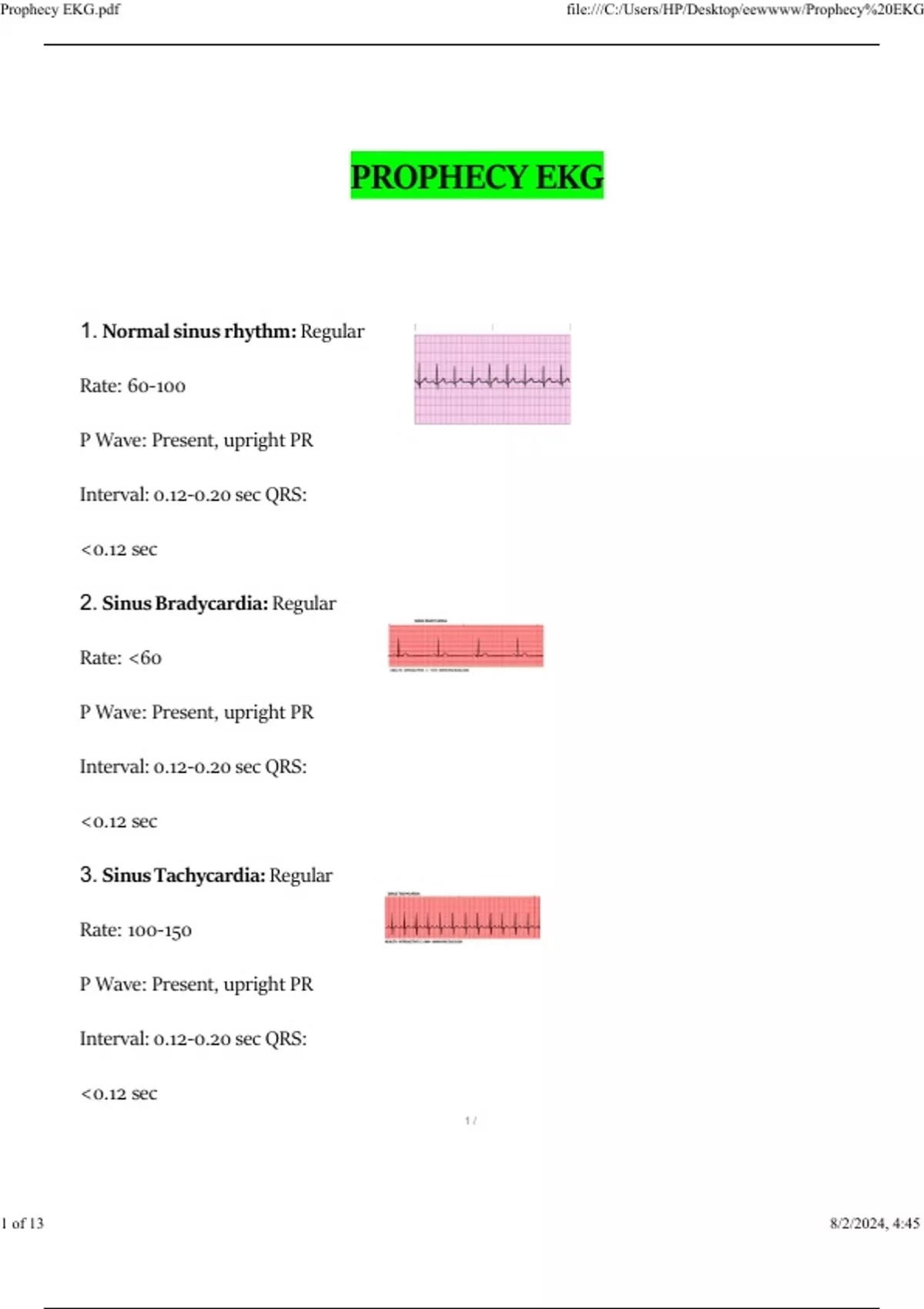

PROPHECY EKG
1. Normal sinus rhythm: Regular
Rate: 60-100
P Wave: Present, upright PR
Interval: 0.12-0.20 sec QRS:
<0.12 sec
2. Sinus Bradycardia: Regular
Rate: <60
P Wave: Present, upright PR
Interval: 0.12-0.20 sec QRS:
<0.12 sec
3. Sinus Tachycardia: Regular
Rate: 100-150
P Wave: Present, upright PR
Interval: 0.12-0.20 sec QRS:
<0.12 sec
1/
1 of 13 8/2/2024, 4:45
,Prophecy EKG.pdf file:///C:/Users/HP/Desktop/eewwww/Prophecy%20EKG
4. Premature Atrial Contraction: IRREGULAR Rate:
depends on underlying rhythm
P wave: Present or hidden in T wave PR
Interval: 0.12-0.20 sec
QRS: <0.12 sec
5. Atrial Fibrillation: IRREGULAR
Atrial rate: UNMEASURABLE
Ventricular rate: variable
P wave: unable to see PR
Interval: N/A QRS: <0.12
sec
6. A fib RVR: IRREGULAR
Ventricular rate: 100-175 P
wave: unable to see PR
Interval: N/A
QRS <0.12 sec
7. Atrial Flutter: Usually REGULAR can be irregular Atrial
rate: 250-350
2/
2 of 13 8/2/2024, 4:45
PROPHECY EKG
1. Normal sinus rhythm: Regular
Rate: 60-100
P Wave: Present, upright PR
Interval: 0.12-0.20 sec QRS:
<0.12 sec
2. Sinus Bradycardia: Regular
Rate: <60
P Wave: Present, upright PR
Interval: 0.12-0.20 sec QRS:
<0.12 sec
3. Sinus Tachycardia: Regular
Rate: 100-150
P Wave: Present, upright PR
Interval: 0.12-0.20 sec QRS:
<0.12 sec
1/
1 of 13 8/2/2024, 4:45
,Prophecy EKG.pdf file:///C:/Users/HP/Desktop/eewwww/Prophecy%20EKG
4. Premature Atrial Contraction: IRREGULAR Rate:
depends on underlying rhythm
P wave: Present or hidden in T wave PR
Interval: 0.12-0.20 sec
QRS: <0.12 sec
5. Atrial Fibrillation: IRREGULAR
Atrial rate: UNMEASURABLE
Ventricular rate: variable
P wave: unable to see PR
Interval: N/A QRS: <0.12
sec
6. A fib RVR: IRREGULAR
Ventricular rate: 100-175 P
wave: unable to see PR
Interval: N/A
QRS <0.12 sec
7. Atrial Flutter: Usually REGULAR can be irregular Atrial
rate: 250-350
