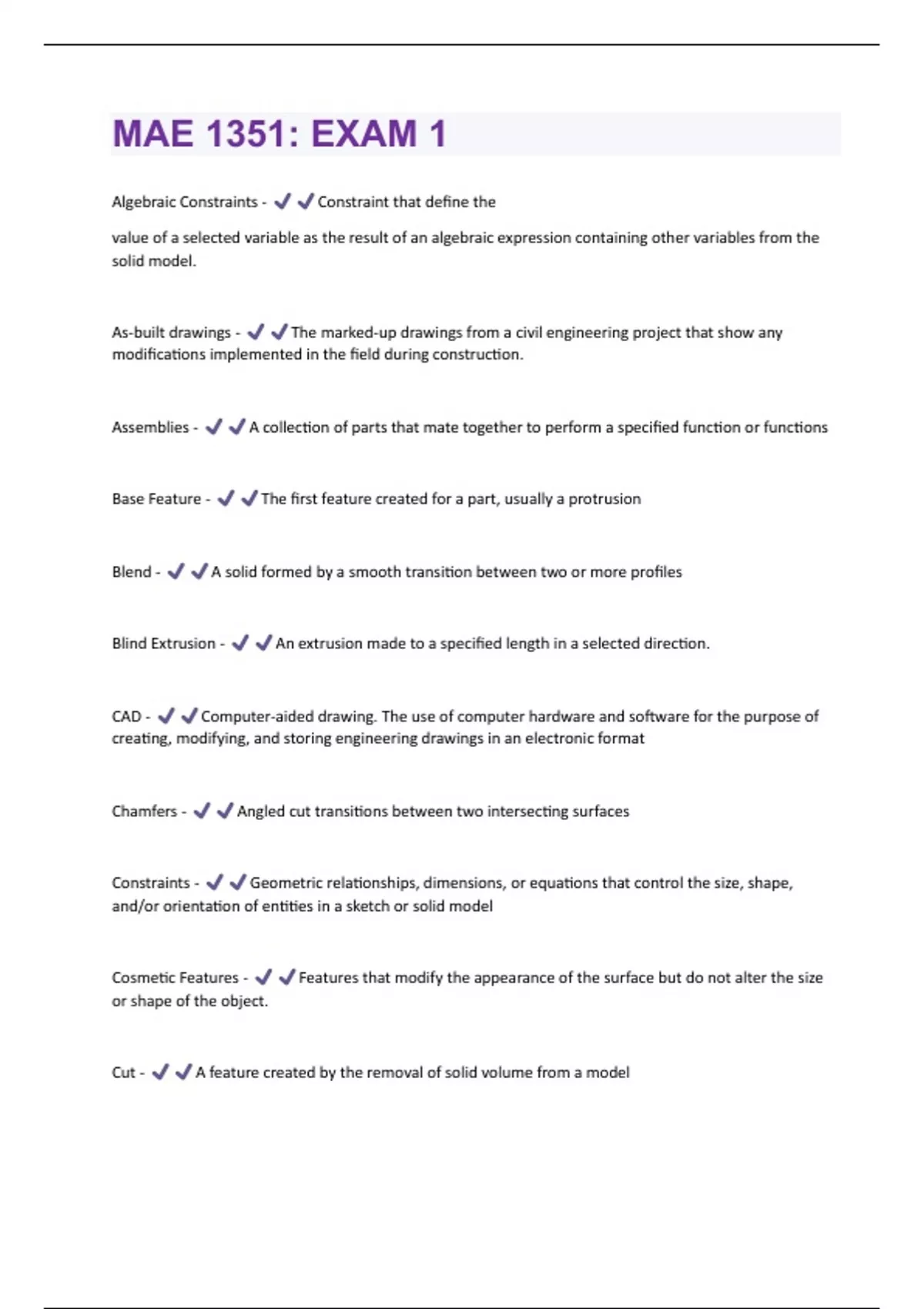

MAE 1351: EXAM 1 Questions With 100% Correct Answers.

Algebraic Constraints - Constraint that define the value of a selected variable as the result of an algebraic expression containing other variables from the solid model. As-built drawings - The marked-up drawings from a civil engineering project that show any modifications implemented in the field during construction. Assemblies - A collection of parts that mate together to perform a specified function or functions Base Feature - The first feature created for a part, usually a protrusion Blend - A solid formed by a smooth transition between two or more profiles Blind Extrusion - An extrusion made to a specified length in a selected direction. CAD - Computer-aided drawing. The use of computer hardware and software for the purpose of creating, modifying, and storing engineering drawings in an electronic format Chamfers - Angled cut transitions between two intersecting surfaces Constraints - Geometric relationships, dimensions, or equations that control the size, shape, and/or orientation of entities in a sketch or solid model Cosmetic Features - Features that modify the appearance of the surface but do not alter the size or shape of the object. Cut - A feature created by the removal of solid volume from a modelDatum Geometries - Geometric entities such as points, axes, and planes that do not actually exist on real parts, but are used to help locate and define other features. Descriptive Geometry - A two-dimensional graphical construction technique used for geometric analysis of three-dimensional objects
