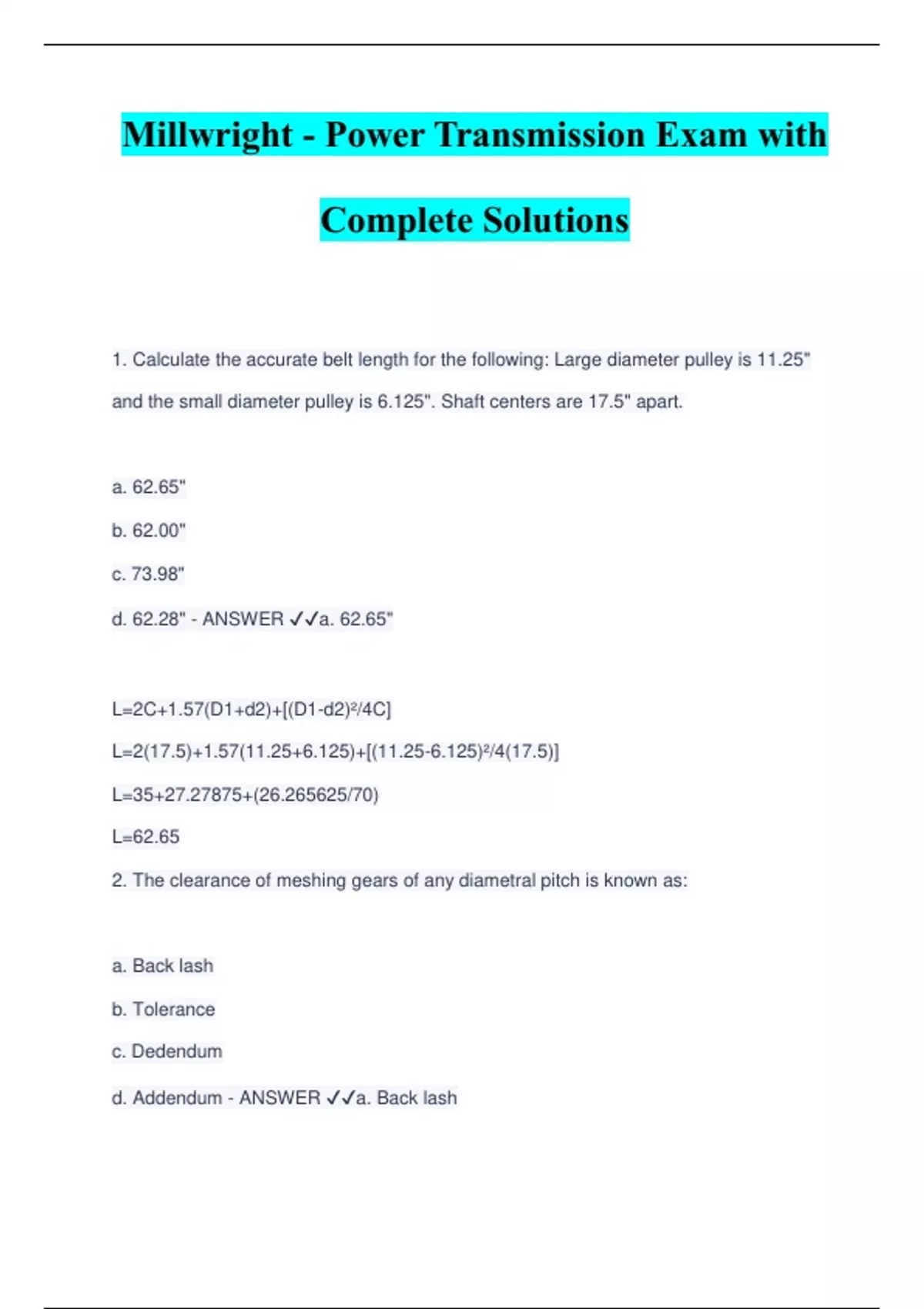

Millwright - Power Transmission Exam with Complete Solutions 1. Calculate the accurate belt length for the following: Large diameter pulley is 11.25" and the small diameter pulley is 6.125". Shaft centers are 17.5" apart. a. 62.65" b. 62.00" c. 73.98" d. 62.28" - ANSWER ️️ a. 62.65" L=2C+1.57(D1+d2)+[(D1-d2)²/4C] L=2(17.5)+1.57(11.25+6.125)+[(11.25-6.125)²/4(17.5)] L=35+27.27875+(26.265625/70) L=62.65 2. The clearance of meshing gears of any diametral pitch is known as: a. Back lash b. Tolerance c. Dedendum d. Addendum - ANSWER ️️ a. Back las
