SEMICONDUCTOR ELECTRONICS: MATERIALS, DEVICES AND SIMPLE CIRCUITS

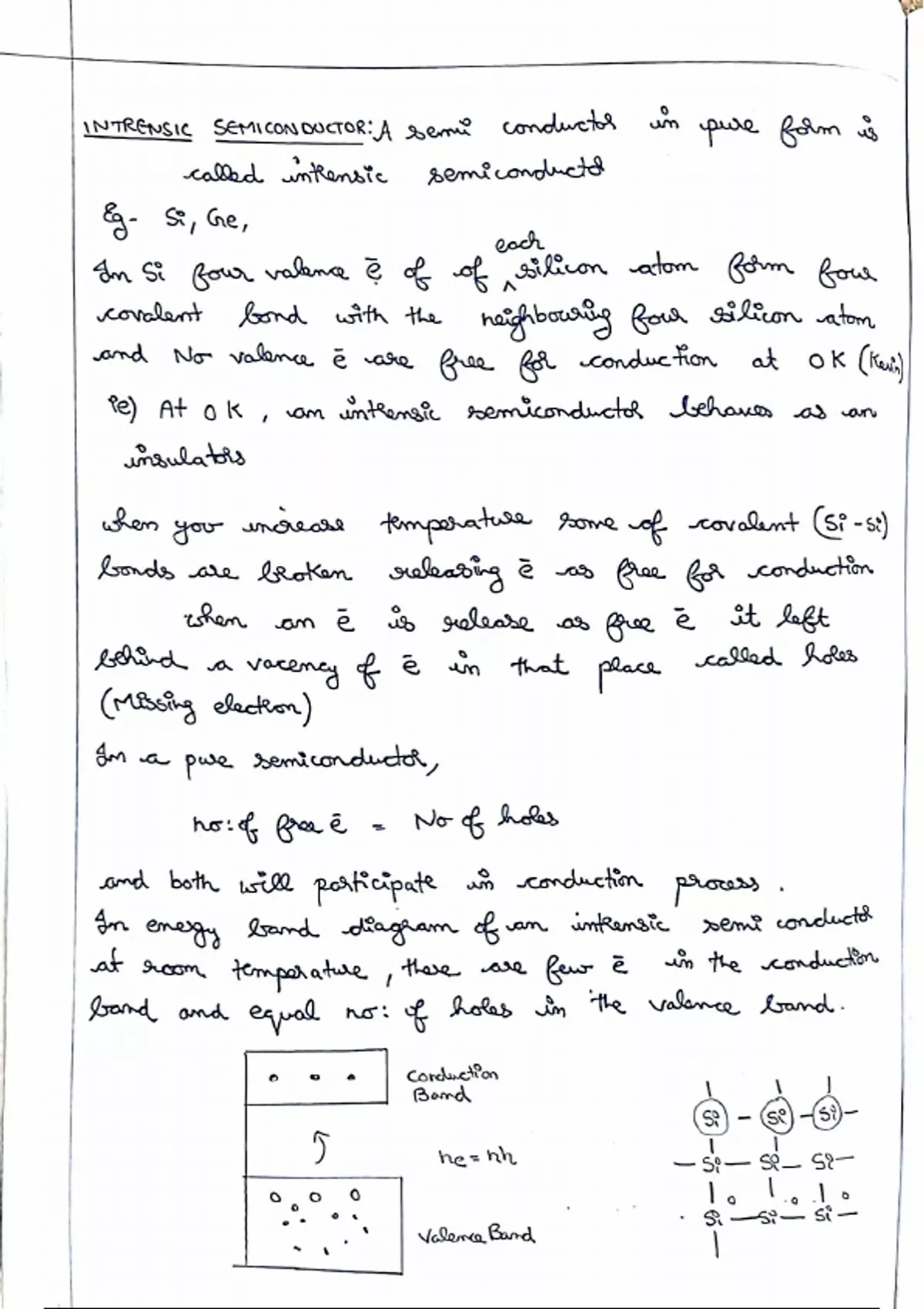

These are the notes used by 100% mark secured student in Kerala State board, A higher secondary board in Kerala, India. Semiconductor electronics is a branch of electronics that deals with the study, design, and utilization of semiconductor materials, devices, and circuits. Semiconductors are materials that have electrical conductivity between that of conductors (such as metals) and insulators (such as non-metals), and they play a crucial role in modern electronic devices. Here's an overview of semiconductor electronics, including materials, devices, and simple circuits: Materials: Semiconductor materials are typically elements from groups IV (e.g., silicon, germanium) or III-V (e.g., gallium arsenide) of the periodic table. They possess a unique property known as the band gap, which is the energy difference between the valence band (where electrons are bound) and the conduction band (where electrons are free to move). This property allows semiconductors to selectively conduct electricity based on external factors like temperature, light, or electric fields. Devices: Semiconductor electronics involve the use of various semiconductor devices that manipulate the flow of electrons to perform specific functions. Some fundamental semiconductor devices include: Diodes: Diodes are two-terminal devices that allow current to flow in only one direction. They are commonly used to rectify AC (alternating current) to DC (direct current) and in various signal processing applications. Transistors: Transistors are three-terminal devices that act as amplifiers or switches. They come in two main types: bipolar junction transistors (BJTs) and field-effect transistors (FETs). They are the building blocks of modern digital electronics and are used in a wide range of applications, including computers, communication devices, and power amplifiers. Integrated Circuits (ICs): ICs are complex semiconductor devices that contain a large number of transistors, diodes, and other components on a single chip. They can perform a variety of functions, from logic operations to signal processing, and are the foundation of modern electronic systems. Simple Circuits: Semiconductor devices are combined to create circuits that perform specific tasks. Here are a few examples of simple semiconductor circuits: Rectifier Circuit: A diode-based circuit that converts AC input into DC output by allowing current to flow in one direction only. Amplifier Circuit: Transistors can be configured to amplify weak signals. Common configurations include common-emitter (for BJTs) and common-source (for FETs) amplifiers. Logic Gates: Logic gates are circuits that perform basic logical operations (AND, OR, NOT) based on binary input signals (0s and 1s). These gates are the building blocks of digital logic circuits. LED Driver Circuit: A circuit that uses transistors to control the current through Light Emitting Diodes (LEDs), allowing them to emit light at different brightness levels. In summary, semiconductor electronics is a field focused on utilizing the properties of semiconductor materials to create various devices and circuits that enable modern technology. It forms the basis of numerous applications in communication, computation, control systems, and more.
