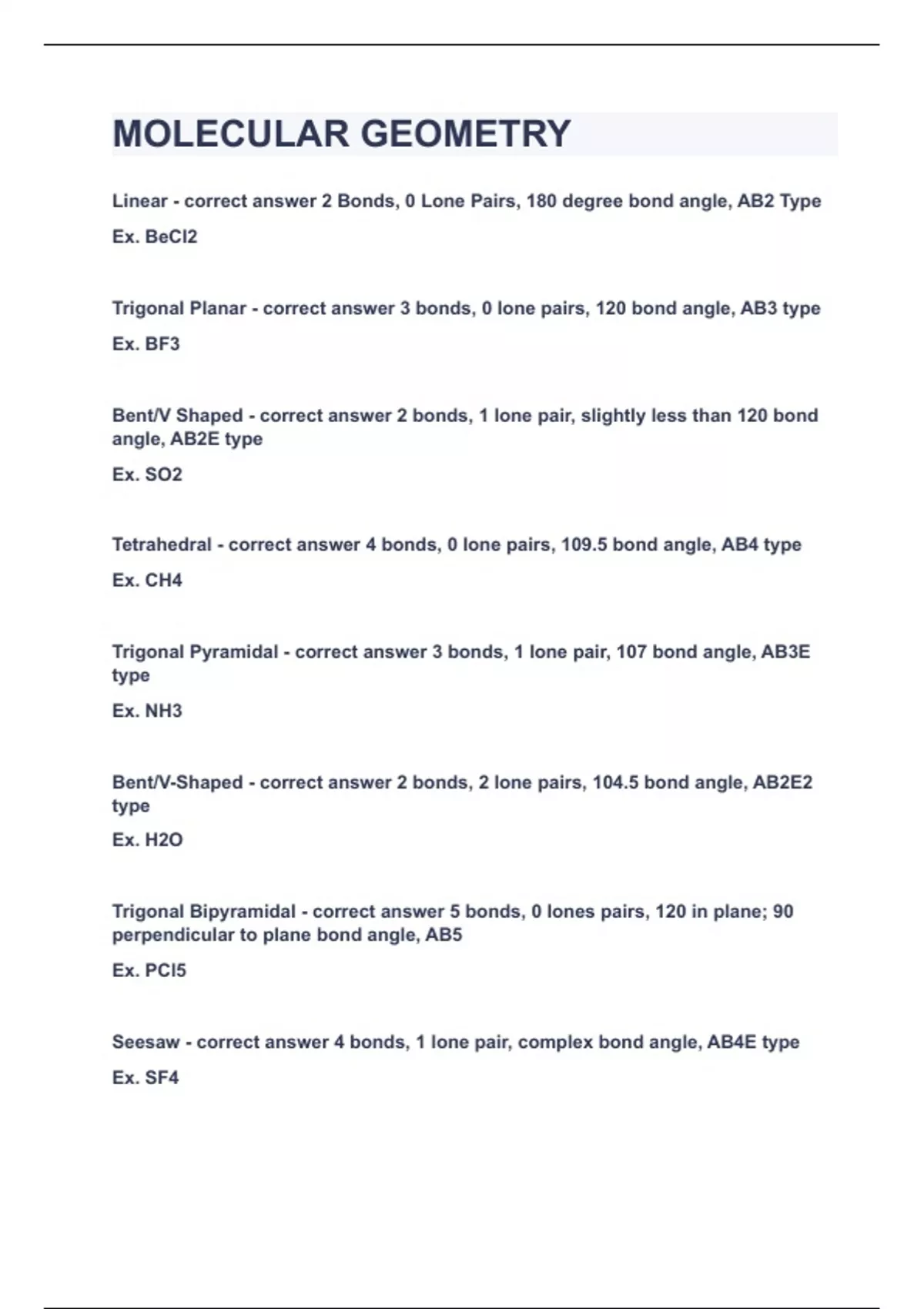

Linear 2 Bonds, 0 Lone Pairs, 180 degree bond angle, AB2 Type Ex. BeCl2 Trigonal Planar 3 bonds, 0 lone pairs, 120 bond angle, AB3 type Ex. BF3 Bent/V Shaped 2 bonds, 1 lone pair, slightly less than 120 bond angle, AB2E type Ex. SO2 Tetrahedral 4 bonds, 0 lone pairs, 109.5 bond angle, AB4 type Ex. CH4 Trigonal Pyramidal 3 bonds, 1 lone pair, 107 bond angle, AB3E type Ex. NH3 Bent/V-Shaped 2 bonds, 2 lone pairs, 104.5 bond angle, AB2E2 type Ex. H2O Trigonal Bipyramidal 5 bonds, 0 lones pairs, 120 in plane; 90 perpendicular to plane bond angle, AB5 Ex. PCl5 Seesaw 4 bonds, 1 lone pair, complex bond angle, AB4E type Ex. SF4 T-shaped 3 bonds, 2 lone pairs, about 90 bond angle, AB3E2 type Ex. ClF3 Linear 2 bonds, 3 lone paires, 180 bond angle, AB2E3 type Ex. XeF2 Octahedral 6 bonds, 0 lone pairs, 90 bond angle, AB6 type Ex. SF6 Square Pyramidal 5 bonds, 1 lone pair, about 90 bond angle, AB5E type Ex. BrF5
