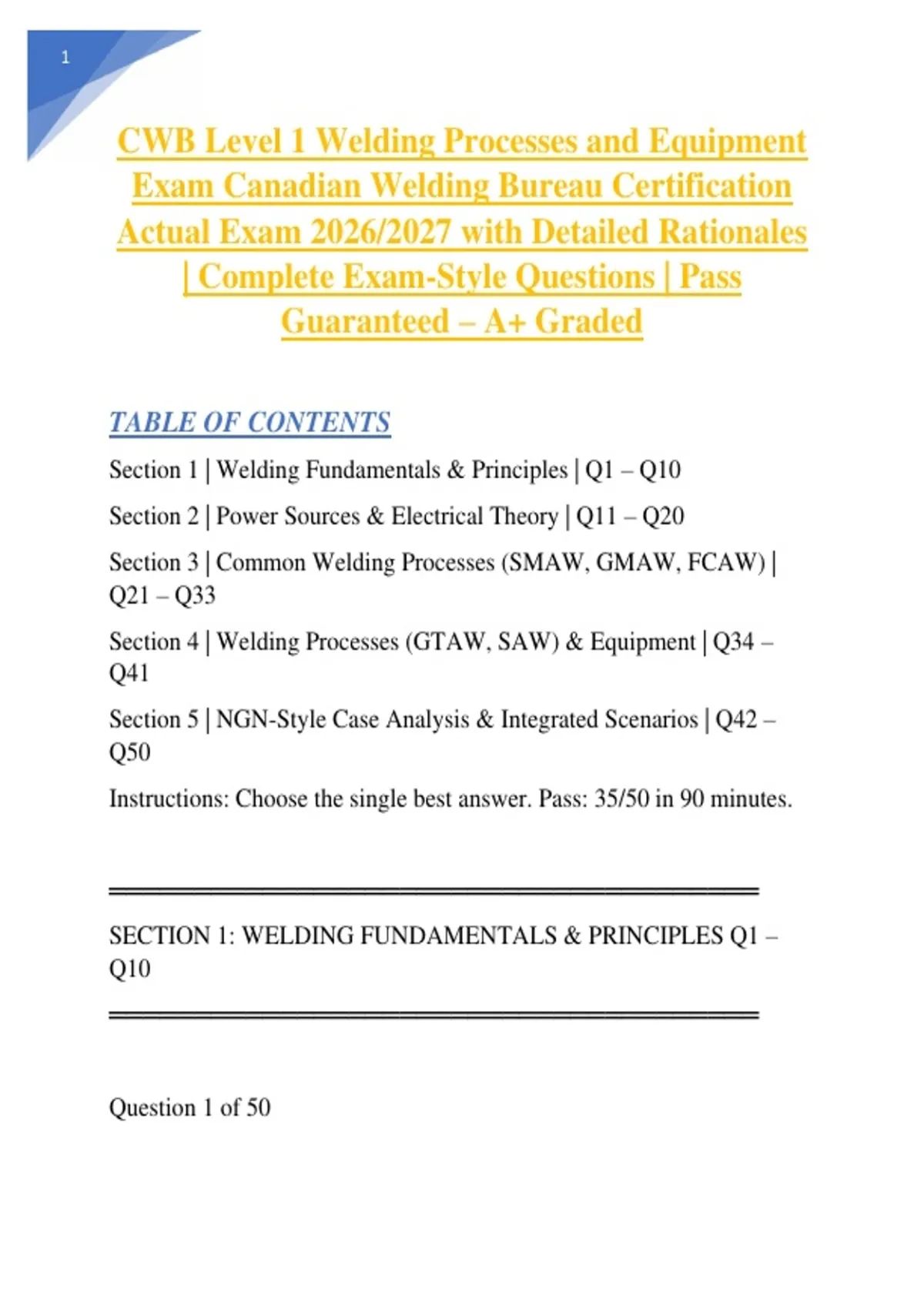

1
CWB Level 1 Welding Processes and Equipment
Exam Canadian Welding Bureau Certification
Actual Exam 2026/2027 with Detailed Rationales
| Complete Exam-Style Questions | Pass
Guaranteed – A+ Graded
TABLE OF CONTENTS
Section 1 | Welding Fundamentals & Principles | Q1 – Q10
Section 2 | Power Sources & Electrical Theory | Q11 – Q20
Section 3 | Common Welding Processes (SMAW, GMAW, FCAW) |
Q21 – Q33
Section 4 | Welding Processes (GTAW, SAW) & Equipment | Q34 –
Q41
Section 5 | NGN-Style Case Analysis & Integrated Scenarios | Q42 –
Q50
Instructions: Choose the single best answer. Pass: 35/50 in 90 minutes.
══════════════════════════════════════
SECTION 1: WELDING FUNDAMENTALS & PRINCIPLES Q1 –
Q10
══════════════════════════════════════
Question 1 of 50
,2
A structural welder is preparing to join two 25 mm thick carbon steel
plates in the flat position using SMAW. The welding procedure
specification calls for a preheat temperature of 150°C and an interpass
temperature maximum of 250°C. During the third pass, the welder
notices the base metal near the weld has cooled to 120°C before starting
the next pass. What is the most appropriate action?
A. Continue welding immediately since the interpass temperature only
applies after multiple passes are complete
B. Increase travel speed to compensate for the lower temperature and
maintain consistent bead appearance
C. Reheat the joint to at least 150°C before depositing the next pass to
prevent hydrogen-induced cracking
D. Switch to a low-hydrogen electrode and reduce amperage by 15% to
accommodate the cooler conditions
Correct Answer: C
Rationale: Preheat and minimum interpass temperatures exist primarily
to slow the cooling rate, allowing hydrogen to diffuse out of the weld
zone and reducing the risk of cold cracking in susceptible steels. Option
A incorrectly assumes interpass control is optional, when in fact
dropping below the minimum preheat essentially negates the procedure's
protective intent. In field practice, many contractors use temperature-
indicating crayons or infrared thermometers to verify compliance before
every pass on critical work.
Question 2 of 50
,3
During a production welding operation on stainless steel piping, a
welder observes that increasing the amperage setting from 180A to
220A results in a wider, more fluid weld pool but also produces
noticeable spatter and undercut along the toes of the weld bead. Which
fundamental principle best explains this observation?
A. Higher amperage increases arc force, which improves penetration but
reduces deposition efficiency due to excessive spatter
B. Increased amperage raises heat input proportionally, which lowers
viscosity of the molten metal and can exceed the power source's duty
cycle rating
C. Amperage controls the rate of electrode consumption and melt-off;
excessive current causes overheating of the electrode tip, leading to
unstable metal transfer
D. Voltage determines arc length while amperage controls penetration
depth; the observed defects indicate voltage should be reduced instead of
amperage
Correct Answer: C
Rationale: Amperage directly governs the current density at the
electrode tip and the resulting melt-off rate; exceeding the optimal range
for a given electrode diameter causes the tip to overheat, producing
erratic droplet transfer that manifests as spatter and undercut. Option A
confuses arc force (which is influenced by both parameters) with the
primary effect of amperage on electrode behavior. When you see these
symptoms in practice, first confirm your wire feed speed or electrode
manipulation isn't compounding the problem before adjusting machine
settings.
, 4
Question 3 of 50
A pressure vessel fabrication shop is welding circumferential seams on a
large-diameter cylindrical vessel using the 5G position (pipe horizontal,
fixed). The lead welder notices that welds made at the 6 o'clock position
consistently show deeper penetration than those at the 12 o'clock
position, even though machine settings remain unchanged throughout
the pass. What welding physics principle accounts for this variation?
A. Gravity pulls the arc column downward, concentrating heat input at
the bottom of the pipe and reducing effective arc length at the top
B. The molten weld pool tends to sag at the 6 o'clock position due to
gravity, allowing the arc to dig deeper into the base metal before
encountering liquid metal resistance
C. Electromagnetic arc forces are stronger at the 6 o'clock position
because the ground clamp is typically located near the bottom of the
vessel
D. Convective heat transfer is more efficient at the 12 o'clock position
because rising hot gases carry heat away from the weld zone faster than
at the bottom
Correct Answer: B
Rationale: In vertical-up or overhead portions of a 5G weld, gravity acts
against the deposited weld metal, causing the pool to sag away from the
arc; this allows the arc to operate closer to the base surface, effectively
increasing penetration compared to the flat-top position where the pool
cushions the arc. Option A incorrectly suggests gravity affects the arc
plasma itself, when in reality the arc column is largely unaffected by
