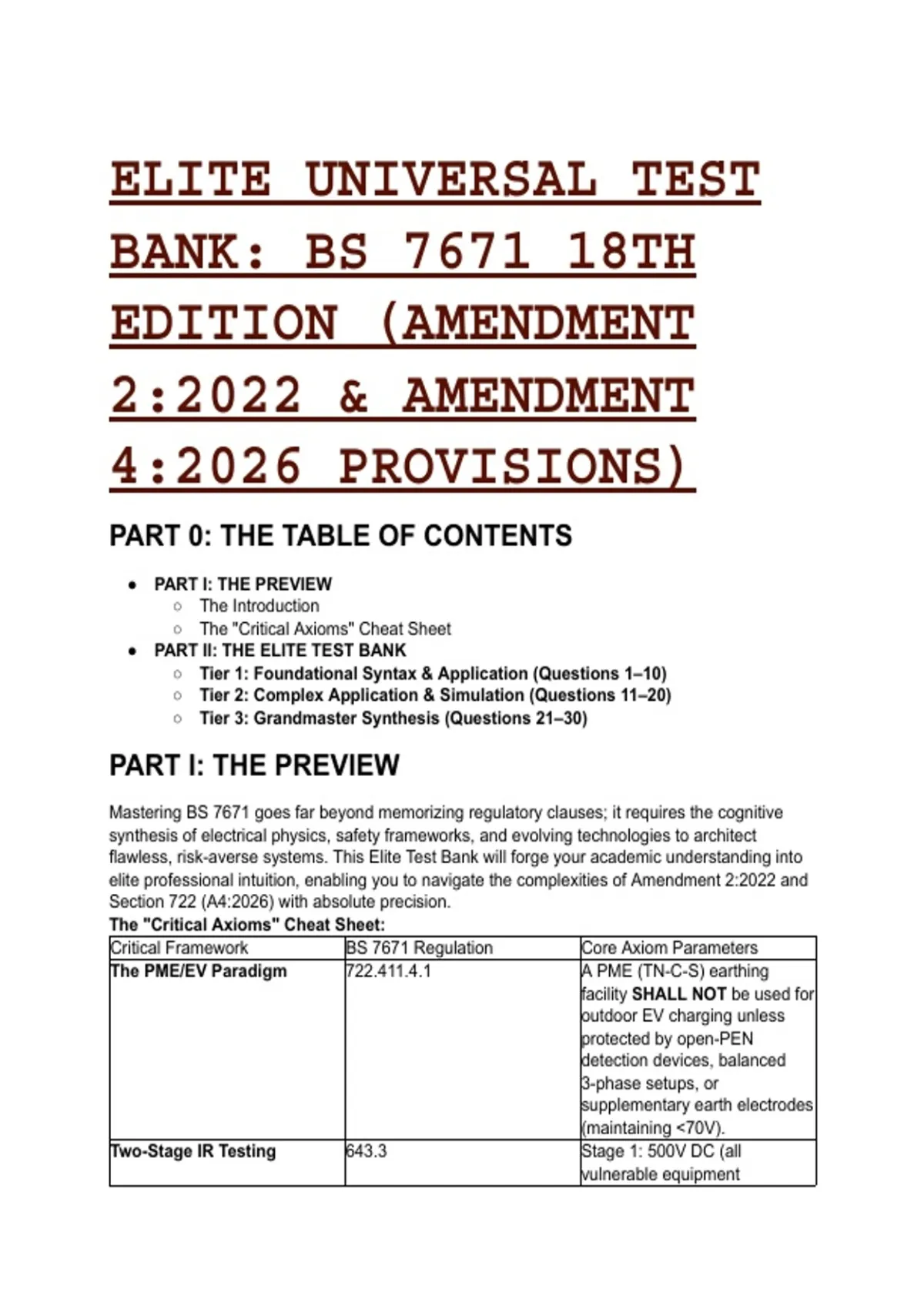

ELITE UNIVERSAL TEST
BANK: BS 7671 18TH
EDITION (AMENDMENT
2:2022 & AMENDMENT
4:2026 PROVISIONS)
PART 0: THE TABLE OF CONTENTS
● PART I: THE PREVIEW
○ The Introduction
○ The "Critical Axioms" Cheat Sheet
● PART II: THE ELITE TEST BANK
○ Tier 1: Foundational Syntax & Application (Questions 1–10)
○ Tier 2: Complex Application & Simulation (Questions 11–20)
○ Tier 3: Grandmaster Synthesis (Questions 21–30)
PART I: THE PREVIEW
Mastering BS 7671 goes far beyond memorizing regulatory clauses; it requires the cognitive
synthesis of electrical physics, safety frameworks, and evolving technologies to architect
flawless, risk-averse systems. This Elite Test Bank will forge your academic understanding into
elite professional intuition, enabling you to navigate the complexities of Amendment 2:2022 and
Section 722 (A4:2026) with absolute precision.
The "Critical Axioms" Cheat Sheet:
Critical Framework BS 7671 Regulation Core Axiom Parameters
The PME/EV Paradigm 722.411.4.1 A PME (TN-C-S) earthing
facility SHALL NOT be used for
outdoor EV charging unless
protected by open-PEN
detection devices, balanced
3-phase setups, or
supplementary earth electrodes
(maintaining <70V).
Two-Stage IR Testing 643.3 Stage 1: 500V DC (all
vulnerable equipment
,Critical Framework BS 7671 Regulation Core Axiom Parameters
disconnected). Stage 2: 250V
DC (live conductors connected
together to Earth, with
equipment connected),
demanding a minimum of 1
MΩ.
The AFDD Mandate 421.1.7 Arc Fault Detection Devices are
MANDATORY for single-phase
AC final circuits supplying
socket-outlets ≤32A in HMOs,
Care Homes, PBSA, and
HRRBs.
Extraneous Threshold 411.3.1.2 A conductive part is only
extraneous if it introduces Earth
potential. Resistance > 7.67 kΩ
(for 230V) dictates it is isolated
and requires no bonding.
Cooker Diversity Appendix A First 10A + 30% of the
remainder of the rated current +
5A (if a socket-outlet is
incorporated in the control unit).
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: You are inspecting a newly constructed Care Home. The installation features multiple
single-phase AC final circuits supplying 13A socket-outlets in the resident bedrooms and
communal lighting circuits. Based on the principles of BS 7671:2018+A2:2022 Chapter 42
(Protection against thermal effects), which action regarding Arc Fault Detection Devices
(AFDDs) is the MOST ACCURATE? A) AFDDs must be installed on all final circuits, including
lighting, to mitigate fire risks in care facilities. B) AFDDs are only recommended for socket-outlet
circuits in a Care Home; a risk assessment may permit their omission. C) AFDDs are mandatory
for the final circuits supplying socket-outlets up to 32A, but can be omitted for the lighting
circuits if unexpected disconnection causes danger. D) AFDDs must be fitted at the origin of the
installation to protect the entire 3-phase distribution network of the Care Home.
● Answer: C (AFDDs are mandatory for the final circuits supplying socket-outlets up to
32A, but can be omitted for the lighting circuits if unexpected disconnection causes
danger.)
● Distractor Analysis:
○ A is incorrect: While AFDDs are mandatory for specific circuits in Care Homes, they
are not strictly mandatory for lighting circuits. Omitting them on lighting circuits is
permissible if unexpected disconnection causes danger.
○ B is incorrect: Prior to Amendment 2, AFDDs were widely recommended. Under
A2:2022, Regulation 421.1.7 makes them mandatory—not just recommended—for
socket-outlets ≤32A in Care Homes, HMOs, student accommodation, and HRRBs.
○ D is incorrect: AFDDs are designed for final circuits, specifically single-phase AC
, circuits up to 32A, not for whole-installation 3-phase origin protection.
The Mentor's Analysis: Regulation 421.1.7 specifically targets the mitigation of series and
parallel arcs in trailing leads and socket connections where damage goes unnoticed. By
applying AFDDs to the final socket circuits of high-risk buildings, you surgically eliminate the
highest probability of electrical fire ignition.
Building Type (A2:2022) AFDD Requirement (Socket-Outlets ≤32A)
Higher Risk Residential (HRRB) Mandatory
Care Homes & HMOs Mandatory
Purpose-Built Student Accommodation Mandatory
Standard Domestic Dwelling Recommended
Professional/Academic Intuition: Never apply AFDDs blindly to critical safety or lighting
circuits where the hazard of sudden darkness outweighs the risk of an arcing fault.
Q2: A contractor is installing an electric vehicle (EV) charging point on a domestic property. The
charger is a 7.4kW Mode 3 unit. Based on the principles of BS 7671 Section 722, which
conclusion regarding Residual Current Device (RCD) selection is the MOST ACCURATE? A) A
Type AC RCD rated at 30mA must be used, provided a separate PEN fault device is installed.
B) A Type A RCD rated at 30mA is acceptable, provided the charging equipment includes a DC
fault detection device (RDC-DD) limiting DC leakage to 6mA. C) A Type B RCD is universally
mandated for all domestic EV charging points to account for smooth DC fault currents. D) A
Type F RCD rated at 100mA must be used to prevent nuisance tripping during high-current
vehicle handshakes.
● Answer: B (A Type A RCD rated at 30mA is acceptable, provided the charging
equipment includes a DC fault detection device (RDC-DD) limiting DC leakage to 6mA.)
● Distractor Analysis:
○ A is incorrect: A Type AC RCD is strictly forbidden for EV charging circuits because
it is blinded by DC fault components.
○ C is incorrect: While a Type B RCD provides the required protection, it is not
universally mandated. A Type A RCD combined with an internal 6mA RDC-DD (to
BS IEC 62955) is entirely compliant and much more common.
○ D is incorrect: Section 722 dictates that the RCD must provide additional protection,
meaning it must have a rated residual operating current not exceeding 30mA, not
100mA.
The Mentor's Analysis: EV charging circuits introduce the severe risk of DC leakage currents
feeding back into the AC installation, which magnetically saturates the iron core of standard
Type AC RCDs, rendering them inoperable. By ensuring Type A (with 6mA DC protection) or
Type B RCDs are specified, you maintain the integrity of the entire fault protection framework.
Professional/Academic Intuition: Direct current leakage is the silent assassin of AC
protective devices. Always isolate or adequately rate EV circuits against DC blinding.
Q3: A completely plastic (polyethylene) incoming water service pipe enters a dwelling and
immediately transitions to internal metallic copper pipework via a brass stopcock. Based on the
principles of BS 7671 Equipotential Bonding (Regulation 411.3.1.2), which action is the MOST
APPROPRIATE? A) Main protective bonding must be applied to the internal copper pipework
within 600mm of the stopcock. B) Main protective bonding is not required on the water
installation pipework because the incoming plastic service cannot introduce an Earth potential.
C) Supplementary bonding must be applied across the brass stopcock to bridge the plastic and
copper components. D) A 10mm² functional earth must be connected to the plastic pipe using a
specialist conductive clamp.
