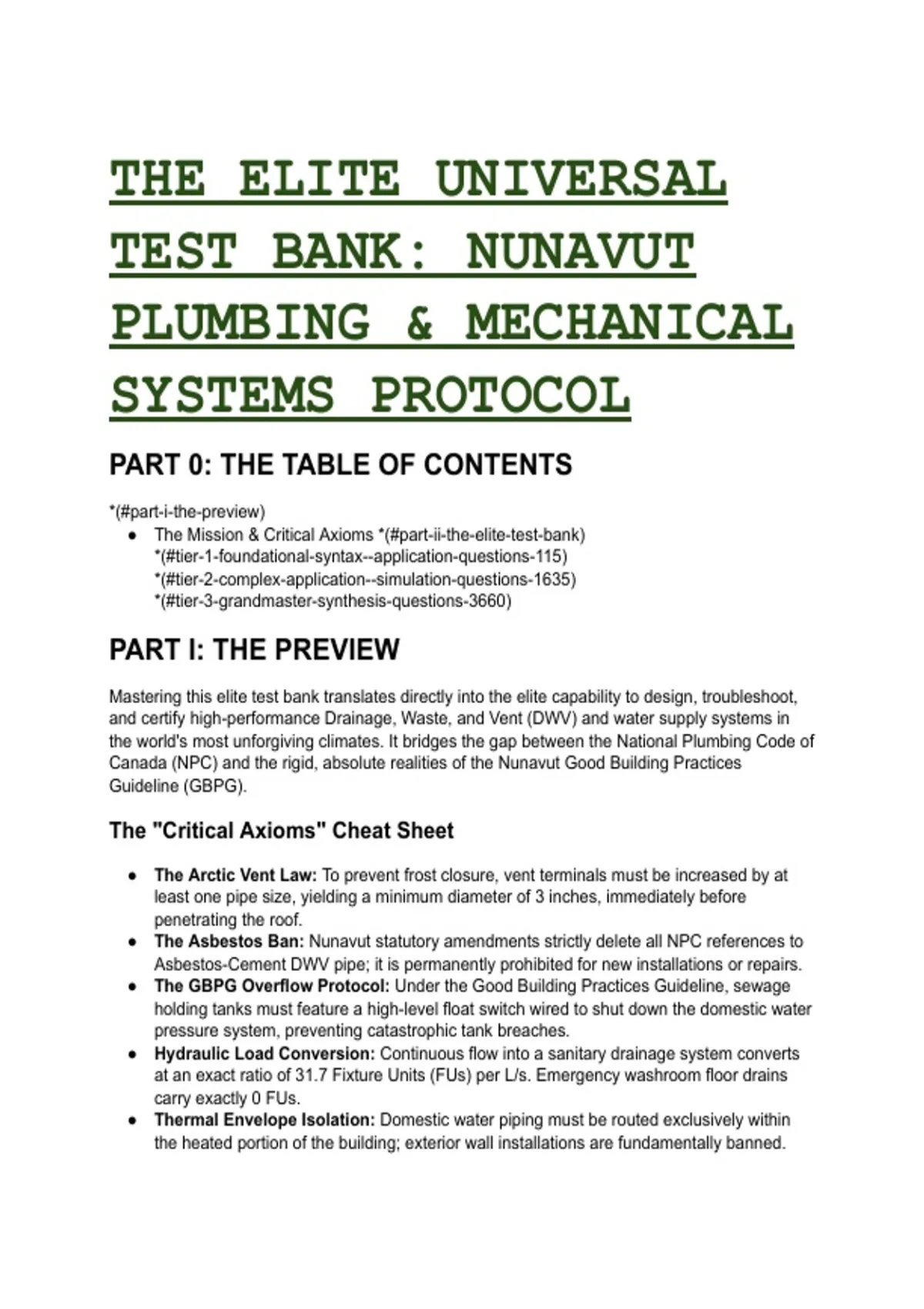

THE ELITE UNIVERSAL
TEST BANK: NUNAVUT
PLUMBING & MECHANICAL
SYSTEMS PROTOCOL
PART 0: THE TABLE OF CONTENTS
*(#part-i-the-preview)
● The Mission & Critical Axioms *(#part-ii-the-elite-test-bank)
*(#tier-1-foundational-syntax--application-questions-115)
*(#tier-2-complex-application--simulation-questions-1635)
*(#tier-3-grandmaster-synthesis-questions-3660)
PART I: THE PREVIEW
Mastering this elite test bank translates directly into the elite capability to design, troubleshoot,
and certify high-performance Drainage, Waste, and Vent (DWV) and water supply systems in
the world's most unforgiving climates. It bridges the gap between the National Plumbing Code of
Canada (NPC) and the rigid, absolute realities of the Nunavut Good Building Practices
Guideline (GBPG).
The "Critical Axioms" Cheat Sheet
● The Arctic Vent Law: To prevent frost closure, vent terminals must be increased by at
least one pipe size, yielding a minimum diameter of 3 inches, immediately before
penetrating the roof.
● The Asbestos Ban: Nunavut statutory amendments strictly delete all NPC references to
Asbestos-Cement DWV pipe; it is permanently prohibited for new installations or repairs.
● The GBPG Overflow Protocol: Under the Good Building Practices Guideline, sewage
holding tanks must feature a high-level float switch wired to shut down the domestic water
pressure system, preventing catastrophic tank breaches.
● Hydraulic Load Conversion: Continuous flow into a sanitary drainage system converts
at an exact ratio of 31.7 Fixture Units (FUs) per L/s. Emergency washroom floor drains
carry exactly 0 FUs.
● Thermal Envelope Isolation: Domestic water piping must be routed exclusively within
the heated portion of the building; exterior wall installations are fundamentally banned.
,Core Fixture Minimum Outlet Size Assigned Hydraulic Load (FUs)
Bathroom Group (Flush Tank) N/A 6 FUs
Bathroom Group (Flush Valve) N/A 8 FUs
Commercial Dishwasher N/A 3 FUs
Autopsy Table 1.50 in. 2 FUs
Bidet N/A 1 FU
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application (Questions 1–15)
Q1: Reviewing a retrofit design for a commercial facility in Iqaluit, you observe existing 4-inch
Asbestos-Cement DWV piping. The contractor intends to repair a cracked section with new
Asbestos-Cement components. Based on Nunavut Building Code Regulations (Schedule 2),
which conclusion is MOST ACCURATE? A) The repair is permitted if the joints are sealed with
cold-weather elastomeric bands. B) The repair is permitted provided the new pipe is encased in
field-poured polyurethane. C) The repair is unequivocally prohibited; Nunavut amendments
specifically strike all NPC allowances for Asbestos-Cement DWV materials. D) The repair is
prohibited because Asbestos-Cement lacks the tensile strength for heat tracing.
● The Answer: C (The repair is unequivocally prohibited; Nunavut amendments specifically
strike all NPC allowances for Asbestos-Cement DWV materials.)
● Distractor Analysis:
○ A is incorrect: No mechanical joining method bypasses a territorial statutory
material ban.
○ B is incorrect: Polyurethane is utilized for utilidor thermal insulation, not hazardous
material mitigation.
○ D is incorrect: The prohibition is statutory and health-based, not thermal.
The Mentor's Analysis: Nunavut’s amendments to the NPC surgically remove all tables
permitting Asbestos-Cement materials. When upgrading legacy arctic infrastructure, the
immediate priority is modern material compliance. By utilizing PVC, ABS, or Cast Iron, you
bypass the common trap of perpetuating banned legacy systems. Professional/Academic
Intuition: Never specify Asbestos-Cement DWV materials in Nunavut; their approval is
legally deleted from the territorial code.
Q2: When sizing sanitary drainage piping for a public washroom, you encounter an emergency
floor drain. According to the NPC, what is the correct Fixture Unit (FU) hydraulic load assigned
to this specific fixture? A) 0 FUs. B) 2 FUs. C) 3 FUs. D) 1.5 FUs.
● The Answer: A (0 FUs.)
● Distractor Analysis:
○ B is incorrect: This is the standard hydraulic load for a non-emergency 2-inch floor
drain.
○ C is incorrect: This is the standard hydraulic load for a non-emergency 3-inch floor
drain.
○ D is incorrect: This is the load assigned to a standard bathtub.
The Mentor's Analysis: Emergency floor drains in washrooms are strictly for overflow
protection and do not receive regular discharge. When calculating hydraulic loads, the
immediate priority is avoiding system oversizing. By utilizing the 0 FU rating, you bypass the
common trap of unnecessarily increasing branch and stack diameters. Professional/Academic
Intuition: An emergency floor drain adds zero hydraulic load to the DWV system.
, Q3: Under the Good Building Practices Guideline (GBPG) for Nunavut, which mechanism is
MANDATORY to prevent a sewage holding tank from overflowing inside a facility? A) An
overflow pipe routed directly to the exterior foundation. B) A high-level float switch that
automatically shuts off the domestic water pressure system. C) A secondary containment berm
sized for 110% of the tank volume. D) A continuous audible alarm that alerts the municipal utility.
● The Answer: B (A high-level float switch that automatically shuts off the domestic water
pressure system.)
● Distractor Analysis:
○ A is incorrect: Discharging raw sewage to the exterior arctic environment is a
catastrophic environmental violation.
○ C is incorrect: Berms are standard for fuel storage, not interior sewage tanks.
○ D is incorrect: Alarms alone do not stop the mechanical flow of water into the tank.
The Mentor's Analysis: In truck-serviced communities, tank levels fluctuate daily. When
designing holding tanks, the immediate priority is preventing interior biological contamination. By
utilizing an interlocked float switch, you bypass the common trap of relying on human
intervention to stop water usage. Professional/Academic Intuition: Kill the supply to stop
the waste; wire sewage high-level alarms directly to the domestic water pumps.
Q4: To mitigate frost closure of vent pipes in extreme arctic conditions, the NPC dictates specific
requirements for vent terminals penetrating the roof. Which action is MOST ACCURATE? A)
The pipe diameter must be reduced to increase air velocity. B) The vent must be capped with a
mechanical air admittance valve on the roof. C) The pipe diameter must be increased by at least
one size, yielding a minimum of 3 inches, immediately before penetration. D) The vent must be
wrapped in high-voltage heat trace exposed to the elements.
● The Answer: C (The pipe diameter must be increased by at least one size, yielding a
minimum of 3 inches, immediately before penetration.)
● Distractor Analysis:
○ A is incorrect: Reducing diameter accelerates ice bridging and closure.
○ B is incorrect: Air Admittance Valves (AAVs) are explicitly prohibited outdoors where
exposed to freezing temperatures.
○ D is incorrect: Heat trace on open roof vents is inefficient and prone to mechanical
damage; sizing is the primary code defense.
The Mentor's Analysis: Warm, moist sewer gas condenses and freezes rapidly at the roofline.
When terminating vents in sub-zero climates, the immediate priority is preventing ice blockages.
By utilizing upsized vent terminals, you bypass the common trap of localized frost closure
destroying trap seals. Professional/Academic Intuition: In sub-zero design climates, the
minimum vent terminal size through a roof is 3 inches.
Q5: A process pump discharges continuously into a sanitary drainage system at a rate of 1.5
L/s. To correctly size the receiving branch, what is the equivalent hydraulic load in Fixture Units
(FUs)? A) 1.5 FUs. B) 15 FUs. C) 47.55 FUs. D) 900 FUs.
● The Answer: C (47.55 FUs.)
● Distractor Analysis:
○ A is incorrect: This assumes a 1:1 conversion ratio, which is false.
○ B is incorrect: This represents an arbitrary decimal shift.
○ D is incorrect: 900 is the multiplier for storm drainage conversions, not sanitary
drainage.
The Mentor's Analysis: Sanitary and storm systems handle fluid dynamics differently. When
converting continuous sanitary flow, the immediate priority is applying the correct code
multiplier. By utilizing the 31.7 multiplier (1.5 x 31.7 = 47.55), you bypass the common trap of
