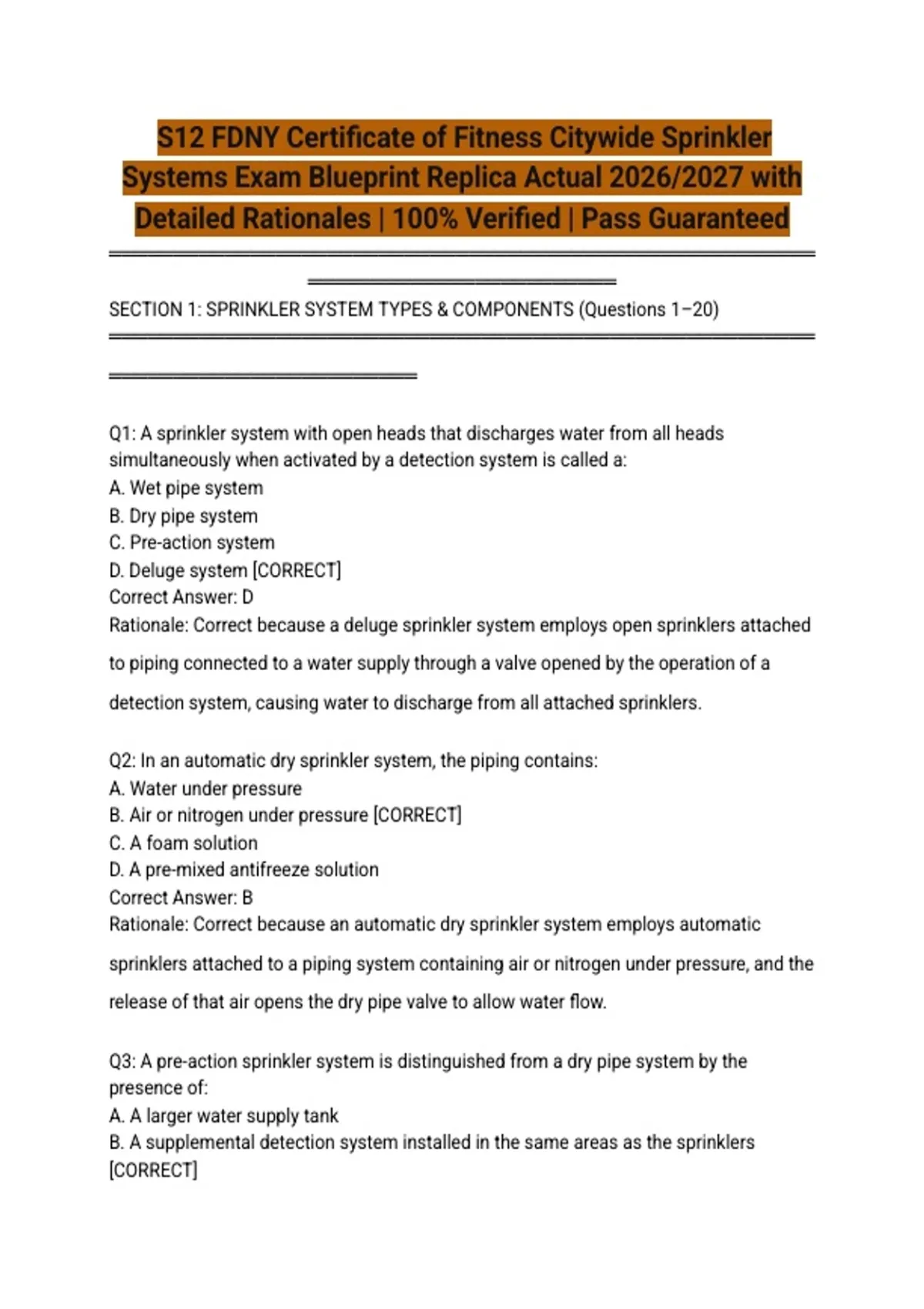

S12 FDNY Certificate of Fitness Citywide Sprinkler
Systems Exam Blueprint Replica Actual 2026/2027 with
Detailed Rationales | 100% Verified | Pass Guaranteed
═══════════════════════════════════════════════════════
════════════════════════
SECTION 1: SPRINKLER SYSTEM TYPES & COMPONENTS (Questions 1–20)
═══════════════════════════════════════════════════════
════════════════════════
Q1: A sprinkler system with open heads that discharges water from all heads
simultaneously when activated by a detection system is called a:
A. Wet pipe system
B. Dry pipe system
C. Pre-action system
D. Deluge system [CORRECT]
Correct Answer: D
Rationale: Correct because a deluge sprinkler system employs open sprinklers attached
to piping connected to a water supply through a valve opened by the operation of a
detection system, causing water to discharge from all attached sprinklers.
Q2: In an automatic dry sprinkler system, the piping contains:
A. Water under pressure
B. Air or nitrogen under pressure [CORRECT]
C. A foam solution
D. A pre-mixed antifreeze solution
Correct Answer: B
Rationale: Correct because an automatic dry sprinkler system employs automatic
sprinklers attached to a piping system containing air or nitrogen under pressure, and the
release of that air opens the dry pipe valve to allow water flow.
Q3: A pre-action sprinkler system is distinguished from a dry pipe system by the
presence of:
A. A larger water supply tank
B. A supplemental detection system installed in the same areas as the sprinklers
[CORRECT]
,C. Open sprinkler heads
D. A manual pull station only
Correct Answer: B
Rationale: Correct because a pre-action sprinkler system contains air that may or may
not be under pressure and includes a supplemental detection system installed in the
same areas as the sprinklers, which must activate before water enters the piping.
Q4: Which type of sprinkler system has piping filled with water at all times and is the
most common system installed?
A. Dry pipe system
B. Wet pipe system [CORRECT]
C. Deluge system
D. Pre-action system
Correct Answer: B
Rationale: Correct because an automatic wet sprinkler system has its piping filled with
water at all times and is the most commonly installed sprinkler system type.
Q5: A non-automatic dry sprinkler system is typically found in:
A. Residential occupancies
B. Areas subject to freezing where manual operation is required [CORRECT]
C. High-hazard chemical storage
D. Computer server rooms
Correct Answer: B
Rationale: Correct because non-automatic dry sprinkler systems are installed in areas
subject to freezing where water is not present in the piping until manually released.
Q6: A garbage compactor sprinkler system is a specialized system designed to protect:
A. Kitchen exhaust hoods
B. Garbage chutes and compactor rooms [CORRECT]
C. Recycling storage areas
D. Loading dock dumpsters
Correct Answer: B
Rationale: Correct because a garbage compactor sprinkler system is specifically
designed to protect garbage chutes and compactor rooms from fire hazards.
Q7: The Response Time Index (RTI) of a standard response sprinkler head is:
, A. 50 or less
B. 80 [CORRECT]
C. 100
D. 120
Correct Answer: B
Rationale: Correct because a standard response sprinkler head has a Response Time
Index (RTI) of 80, while a quick response head has an RTI of 50 or less.
Q8: A quick response sprinkler head has a Response Time Index (RTI) of:
A. 80 or less
B. 65 or less
C. 50 or less [CORRECT]
D. 35 or less
Correct Answer: C
Rationale: Correct because a quick response sprinkler head is defined as having a
fusible link with a Response Time Index (RTI) of 50 or less, making it more thermally
sensitive than standard response heads.
Q9: Which sprinkler head type directs 40% to 60% of the water initially in a downward
direction and can be installed in either the upright or pendent position?
A. Spray sprinkler
B. Old-style/Conventional sprinkler [CORRECT]
C. Sidewall sprinkler
D. ESFR sprinkler
Correct Answer: B
Rationale: Correct because an old-style or conventional sprinkler directs 40% to 60% of
the water initially in a downward direction and is designed to be installed with the
deflector in either the upright or pendent position.
Q10: A pendent sprinkler is designed so that the water stream is directed:
A. Upward against the deflector
B. Downward against the deflector [CORRECT]
C. Horizontally away from the wall
D. In a circular pattern around the head
Correct Answer: B
