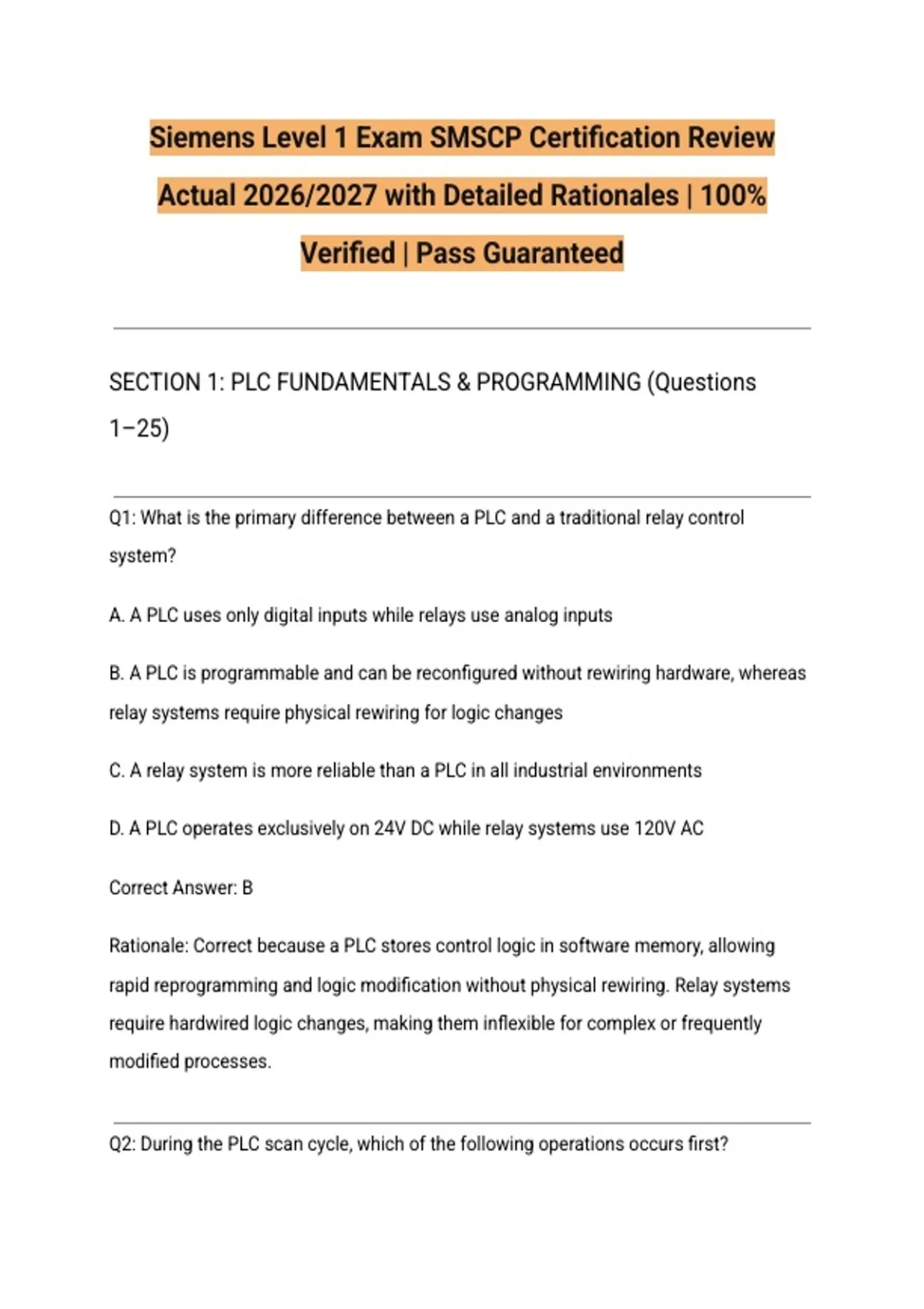

Siemens Level 1 Exam SMSCP Certification Review
Actual 2026/2027 with Detailed Rationales | 100%
Verified | Pass Guaranteed



SECTION 1: PLC FUNDAMENTALS & PROGRAMMING (Questions
1–25)


Q1: What is the primary difference between a PLC and a traditional relay control
system?

A. A PLC uses only digital inputs while relays use analog inputs

B. A PLC is programmable and can be reconfigured without rewiring hardware, whereas
relay systems require physical rewiring for logic changes

C. A relay system is more reliable than a PLC in all industrial environments

D. A PLC operates exclusively on 24V DC while relay systems use 120V AC

Correct Answer: B

Rationale: Correct because a PLC stores control logic in software memory, allowing
rapid reprogramming and logic modification without physical rewiring. Relay systems
require hardwired logic changes, making them inflexible for complex or frequently
modified processes.



Q2: During the PLC scan cycle, which of the following operations occurs first?

,A. Program execution

B. Output update

C. Input scan (read inputs)

D. Communication servicing

Correct Answer: C

Rationale: Correct because the standard PLC scan cycle follows the sequence: Read
Inputs → Execute Program → Update Outputs → Housekeeping/Communications. The
input scan always occurs first to capture the current state of all field devices.



Q3: In a PLC memory organization, which memory area stores the user program (ladder
logic instructions)?

A. Process Image Input (PII)

B. Process Image Output (PIQ)

C. Load Memory

D. Work Memory (RAM)

Correct Answer: C

Rationale: Correct because Load Memory (typically Flash/EEPROM) permanently stores
the complete user program including code, data blocks, and configuration. Work
Memory holds the active runtime copy, while PII and PIQ are process image tables for
I/O states.



Q4: What is the purpose of seal-in (latching) logic in a ladder diagram?

,A. To prevent the PLC from entering STOP mode

B. To maintain an output energized after the initiating input is released

C. To automatically reset a timer after it reaches its preset value

D. To convert analog signals to digital values

Correct Answer: B

Rationale: Correct because seal-in logic uses a normally open contact of the output coil
in parallel with the start input, creating a self-maintaining circuit. This allows the output
to remain ON after the momentary start signal is removed.



Q5: In Siemens TIA Portal ladder logic, which instruction is used to assign a value to an
output coil?

A. —| |— (Normally Open Contact)

B. —( )— (Assignment/Output Coil)

C. —|/|— (Normally Closed Contact)

D. —(R)— (Reset Coil)

Correct Answer: B

Rationale: Correct because the —( )— instruction is the standard assignment coil in
Siemens ladder logic. It writes the result of the preceding logic to the specified output
address when the rung evaluates TRUE.



Q6: What is the function of an internal memory bit (marker) in a Siemens S7 PLC?

, A. It directly controls a physical output module

B. It serves as a temporary storage location for intermediate logic states

C. It stores the PLC firmware version

D. It is used exclusively for analog signal processing

Correct Answer: B

Rationale: Correct because internal memory bits (M bits) are software-only flags used to
store intermediate logic states, enable conditions, or status indicators. They have no
direct physical I/O connection and are essential for complex sequential logic.



Q7: In a ladder logic network, what happens if the power flow (logic) reaches the output
coil?

A. The coil is de-energized

B. The coil is energized and the associated bit is set to 1

C. The PLC enters diagnostic mode

D. The network is automatically disabled

Correct Answer: B

Rationale: Correct because when the preceding logic conditions in a ladder rung
evaluate TRUE (power flow reaches the coil), the assignment coil —( )— energizes and
writes a logic 1 to the associated memory or output address.



Q8: Which of the following best describes the "Process Image" in a Siemens PLC?
