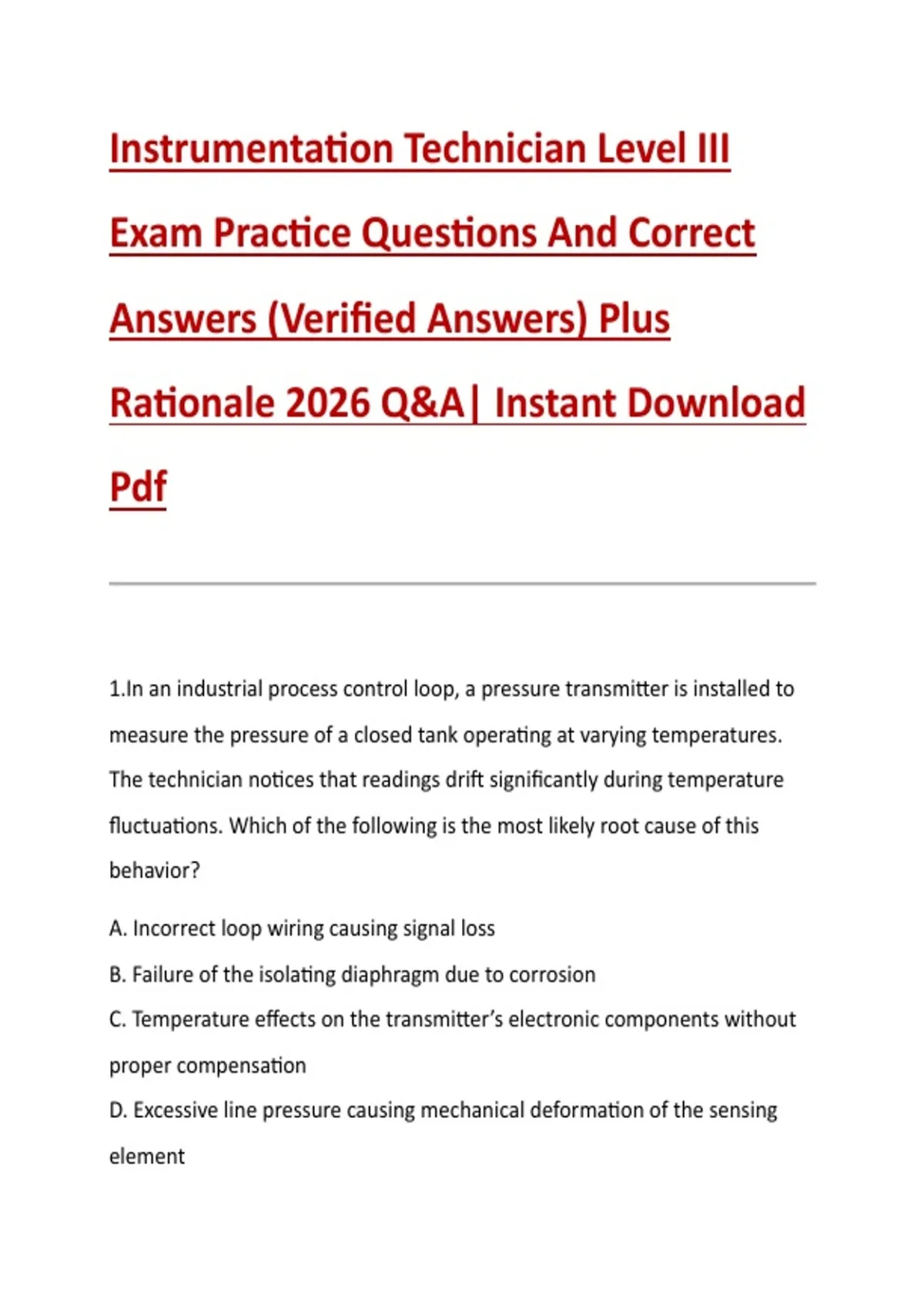

Instrumentation Technician Level III
Exam Practice Questions And Correct
Answers (Verified Answers) Plus
Rationale 2026 Q&A| Instant Download
Pdf
1.In an industrial process control loop, a pressure transmitter is installed to
measure the pressure of a closed tank operating at varying temperatures.
The technician notices that readings drift significantly during temperature
fluctuations. Which of the following is the most likely root cause of this
behavior?
A. Incorrect loop wiring causing signal loss
B. Failure of the isolating diaphragm due to corrosion
C. Temperature effects on the transmitter’s electronic components without
proper compensation
D. Excessive line pressure causing mechanical deformation of the sensing
element
,C
The most likely cause is temperature influence on the transmitter’s internal
electronics or sensing mechanism when proper temperature compensation
is not applied, leading to drift during environmental changes.
2. A differential pressure flow transmitter is used to measure flow
through an orifice plate. If the impulse lines become partially clogged
with debris, what is the expected effect on the system output?
A. Output becomes unstable with high-frequency oscillations
B. Flow reading becomes falsely elevated or sluggish depending on blockage
severity
C. No change in measurement due to self-cleaning impulse lines
D. Output immediately drops to zero regardless of actual flow
B
Partial blockage in impulse lines distorts the pressure differential reaching
the transmitter, resulting in inaccurate flow readings that may be erratic or
biased depending on the restriction.
3. A temperature measurement system uses a thermocouple connected
to a transmitter with cold junction compensation. If the compensation
circuit fails, what is the expected impact on the readings?
A. Readings become more accurate due to simplified calculation
B. Output remains correct but response time increases
C. System will show significant temperature error depending on ambient
,conditions
D. Thermocouple will stop producing any millivolt signal
C
Failure of cold junction compensation introduces error because
thermocouples rely on reference junction correction to produce accurate
temperature measurements.
4. A control valve is observed to stick intermittently during operation
despite receiving correct pneumatic signals. What is the most probable
mechanical cause?
A. Excessive supply voltage to the solenoid coil
B. Friction due to lack of lubrication or actuator wear
C. Incorrect PID tuning parameters
D. Electrical noise in the control signal
B
Mechanical sticking in valves is commonly caused by wear, lack of
lubrication, or buildup inside the valve body, affecting smooth movement
of the plug or stem.
5. In a closed-loop control system, increasing the proportional gain
excessively is most likely to result in:
A. Slower system response with no overshoot
B. Reduced sensitivity to disturbances
C. System instability and oscillations
, D. Complete elimination of steady-state error without risk
C
Excessively high proportional gain causes the system to overreact to errors,
leading to oscillations and potential instability.
6. A level transmitter using hydrostatic pressure is installed in an open
tank. If the vent line becomes blocked, what is the most likely
measurement error?
A. Level will read lower than actual
B. Level will read higher than actual
C. Level will remain unaffected
D. Level will fluctuate randomly regardless of actual level
B
A blocked vent traps pressure above the liquid, adding false backpressure
that causes the transmitter to overestimate level.
7. During calibration of a 4–20 mA transmitter, the technician finds the
output at 50% input is 18 mA. What is the most likely issue?
A. Incorrect zero adjustment
B. Incorrect span calibration
C. Open circuit in the loop
D. Reverse polarity wiring
B
Exam Practice Questions And Correct
Answers (Verified Answers) Plus
Rationale 2026 Q&A| Instant Download
1.In an industrial process control loop, a pressure transmitter is installed to
measure the pressure of a closed tank operating at varying temperatures.
The technician notices that readings drift significantly during temperature
fluctuations. Which of the following is the most likely root cause of this
behavior?
A. Incorrect loop wiring causing signal loss
B. Failure of the isolating diaphragm due to corrosion
C. Temperature effects on the transmitter’s electronic components without
proper compensation
D. Excessive line pressure causing mechanical deformation of the sensing
element
,C
The most likely cause is temperature influence on the transmitter’s internal
electronics or sensing mechanism when proper temperature compensation
is not applied, leading to drift during environmental changes.
2. A differential pressure flow transmitter is used to measure flow
through an orifice plate. If the impulse lines become partially clogged
with debris, what is the expected effect on the system output?
A. Output becomes unstable with high-frequency oscillations
B. Flow reading becomes falsely elevated or sluggish depending on blockage
severity
C. No change in measurement due to self-cleaning impulse lines
D. Output immediately drops to zero regardless of actual flow
B
Partial blockage in impulse lines distorts the pressure differential reaching
the transmitter, resulting in inaccurate flow readings that may be erratic or
biased depending on the restriction.
3. A temperature measurement system uses a thermocouple connected
to a transmitter with cold junction compensation. If the compensation
circuit fails, what is the expected impact on the readings?
A. Readings become more accurate due to simplified calculation
B. Output remains correct but response time increases
C. System will show significant temperature error depending on ambient
,conditions
D. Thermocouple will stop producing any millivolt signal
C
Failure of cold junction compensation introduces error because
thermocouples rely on reference junction correction to produce accurate
temperature measurements.
4. A control valve is observed to stick intermittently during operation
despite receiving correct pneumatic signals. What is the most probable
mechanical cause?
A. Excessive supply voltage to the solenoid coil
B. Friction due to lack of lubrication or actuator wear
C. Incorrect PID tuning parameters
D. Electrical noise in the control signal
B
Mechanical sticking in valves is commonly caused by wear, lack of
lubrication, or buildup inside the valve body, affecting smooth movement
of the plug or stem.
5. In a closed-loop control system, increasing the proportional gain
excessively is most likely to result in:
A. Slower system response with no overshoot
B. Reduced sensitivity to disturbances
C. System instability and oscillations
, D. Complete elimination of steady-state error without risk
C
Excessively high proportional gain causes the system to overreact to errors,
leading to oscillations and potential instability.
6. A level transmitter using hydrostatic pressure is installed in an open
tank. If the vent line becomes blocked, what is the most likely
measurement error?
A. Level will read lower than actual
B. Level will read higher than actual
C. Level will remain unaffected
D. Level will fluctuate randomly regardless of actual level
B
A blocked vent traps pressure above the liquid, adding false backpressure
that causes the transmitter to overestimate level.
7. During calibration of a 4–20 mA transmitter, the technician finds the
output at 50% input is 18 mA. What is the most likely issue?
A. Incorrect zero adjustment
B. Incorrect span calibration
C. Open circuit in the loop
D. Reverse polarity wiring
B
