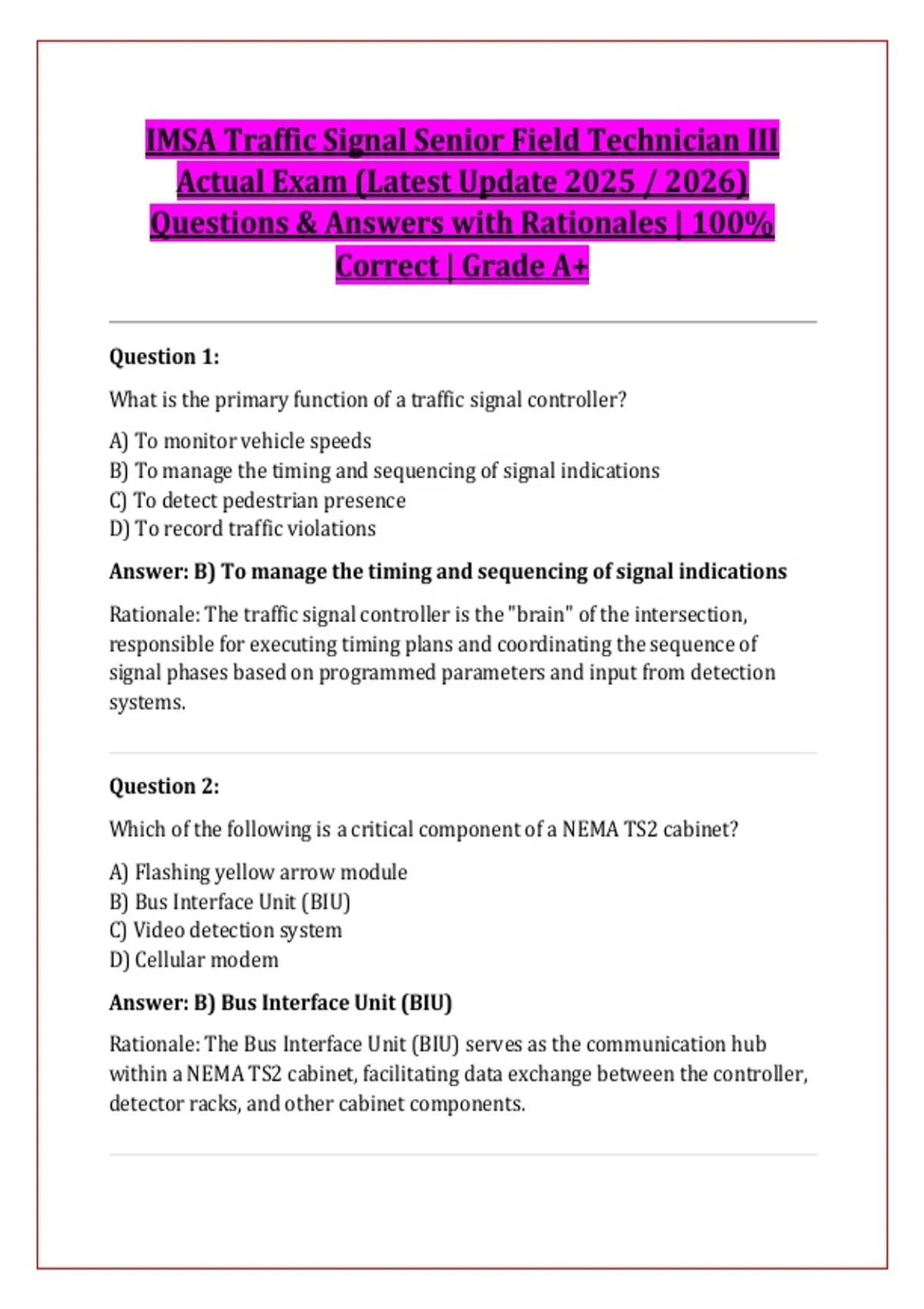

IMSA Traffic Signal Senior Field Technician III
Actual Exam (Latest Update )
Questions & Answers with Rationales | 100%
Correct | Grade A+
Question 1:
What is the primary function of a traffic signal controller?
A) To monitor vehicle speeds
B) To manage the timing and sequencing of signal indications
C) To detect pedestrian presence
D) To record traffic violations
Answer: B) To manage the timing and sequencing of signal indications
Rationale: The traffic signal controller is the "brain" of the intersection,
responsible for executing timing plans and coordinating the sequence of
signal phases based on programmed parameters and input from detection
systems.
Question 2:
Which of the following is a critical component of a NEMA TS2 cabinet?
A) Flashing yellow arrow module
B) Bus Interface Unit (BIU)
C) Video detection system
D) Cellular modem
Answer: B) Bus Interface Unit (BIU)
Rationale: The Bus Interface Unit (BIU) serves as the communication hub
within a NEMA TS2 cabinet, facilitating data exchange between the controller,
detector racks, and other cabinet components.
,Question 3:
What is the purpose of a conflict monitor in a traffic signal cabinet?
A) To detect vehicle presence at intersections
B) To monitor pedestrian push button status
C) To prevent conflicting signal indications from appearing simultaneously
D) To adjust signal timing based on traffic volume
Answer: C) To prevent conflicting signal indications from appearing
simultaneously
Rationale: Conflict monitors provide a critical safety function by continuously
checking for conflicting signal combinations and placing the intersection into
a flashing mode if conflicts are detected.
Question 4:
Which test instrument is specifically designed to test inductive loop detector
functionality?
A) Digital multimeter
B) Oscilloscope
C) Loop tester
D) Megohmmeter
Answer: C) Loop tester
Rationale: A loop tester is specifically designed for testing inductive loop
detectors, measuring inductance, resistance, and verifying proper operation
without damaging sensitive detector components.
Question 5:
What is the standard communication protocol used in most Advanced Traffic
Management Systems (ATMS)?
A) SMTP
B) FTP
,C) TCP/IP
D) SNMP
Answer: C) TCP/IP
Rationale: TCP/IP is the foundational protocol suite for modern ATMS,
enabling reliable data communication between traffic management centers,
field controllers, and system components.
Question 6:
In a NEMA TS1 cabinet, what is the typical voltage rating for the AC input
power?
A) 24 VDC
B) 120 VAC
C) 240 VAC
D) 480 VAC
Answer: B) 120 VAC
Rationale: NEMA TS1 cabinets typically operate on 120 VAC input power,
which is standard for traffic signal equipment in North America.
Question 7:
What is the most common cause of intermittent traffic signal controller
resets?
A) Loose wiring connections
B) Power supply fluctuations
C) Software configuration errors
D) Detector loop failures
Answer: B) Power supply fluctuations
Rationale: Fluctuations, surges, or brownouts in the power supply can cause
controller microprocessors to reset, resulting in intermittent signal operation
issues.
, Question 8:
What does the acronym "MMU" stand for in traffic signal systems?
A) Malfunction Management Unit
B) Main Monitoring Unit
C) Multi-Module Unit
D) Master Management Unit
Answer: A) Malfunction Management Unit
Rationale: The Malfunction Management Unit monitors the traffic signal
controller for malfunctions and automatically places the intersection into
flash mode or an all-red state if faults are detected.
Question 9:
Which of the following is a primary consideration when installing a loop
detector?
A) The color of the loop wire
B) The depth and shape of the saw cut
C) The brand of the detector amplifier
D) The type of asphalt used
Answer: B) The depth and shape of the saw cut
Rationale: Proper saw cut depth (typically 1.5-2 inches) and shape (typically
diamond or rectangular) are critical for loop detector performance and
longevity.
Question 10:
What is the purpose of preemption in traffic signal systems?
A) To give priority to emergency vehicles
B) To extend green times for pedestrian crossings
