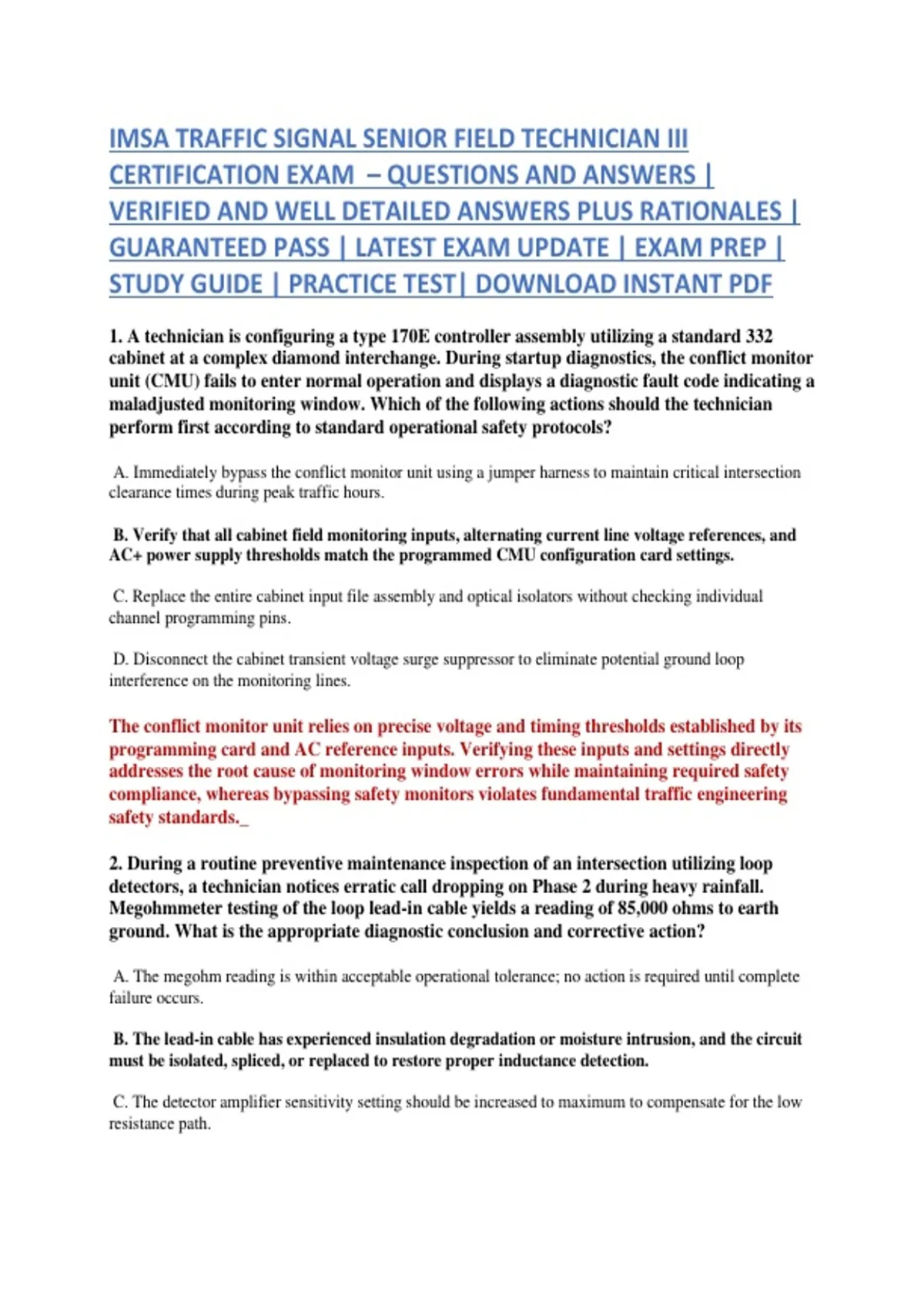

1. A technician is configuring a type 170E controller assembly utilizing a standard 332
cabinet at a complex diamond interchange. During startup diagnostics, the conflict monitor
unit (CMU) fails to enter normal operation and displays a diagnostic fault code indicating a
maladjusted monitoring window. Which of the following actions should the technician
perform first according to standard operational safety protocols?
A. Immediately bypass the conflict monitor unit using a jumper harness to maintain critical intersection
clearance times during peak traffic hours.
B. Verify that all cabinet field monitoring inputs, alternating current line voltage references, and
AC+ power supply thresholds match the programmed CMU configuration card settings.
C. Replace the entire cabinet input file assembly and optical isolators without checking individual
channel programming pins.
D. Disconnect the cabinet transient voltage surge suppressor to eliminate potential ground loop
interference on the monitoring lines.
The conflict monitor unit relies on precise voltage and timing thresholds established by its
programming card and AC reference inputs. Verifying these inputs and settings directly
addresses the root cause of monitoring window errors while maintaining required safety
compliance, whereas bypassing safety monitors violates fundamental traffic engineering
safety standards._
2. During a routine preventive maintenance inspection of an intersection utilizing loop
detectors, a technician notices erratic call dropping on Phase 2 during heavy rainfall.
Megohmmeter testing of the loop lead-in cable yields a reading of 85,000 ohms to earth
ground. What is the appropriate diagnostic conclusion and corrective action?
A. The megohm reading is within acceptable operational tolerance; no action is required until complete
failure occurs.
B. The lead-in cable has experienced insulation degradation or moisture intrusion, and the circuit
must be isolated, spliced, or replaced to restore proper inductance detection.
C. The detector amplifier sensitivity setting should be increased to maximum to compensate for the low
resistance path.
, D. The detector amplifier loop channel should be swapped with an adjacent phase to shift the grounding
fault to a less critical movement.
An insulation resistance reading below 100 megohms (in this case 85k ohms) indicates a
breakdown in wire insulation or moisture intrusion within the loop seal or lead-in cable,
which shunts signal currents and causes erratic vehicle detection. Increasing sensitivity or
swapping channels fails to correct the underlying physical failure._
3. An arterial corridor operating under a coordinated traffic signal system is experiencing
excessive platoon dispersion and high stops during off-peak periods due to overly rigid
cycle lengths. The agency decides to implement time-of-day plan scheduling adjustments.
Which parameter is most critical to recalculate to maintain optimal bandwidth and
progression efficiency?
A. Pedestrian clearance intervals for minor side street movements.
B. Split distribution percentages based on updated turning movement counts and offset timing
relationships between adjacent intersections.
C. Conflict monitor minimum yellow change interval durations.
D. Cabinet battery backup inverter load transfer thresholds.
Coordinated signal systems rely on precise splits and offsets to move vehicle platoons
through successive intersections smoothly. Adjusting splits to reflect current turning
volumes and recalculating offsets ensures minimal stops along the corridor, whereas
pedestrian clearances and monitor settings do not directly impact progression bandwidth._
4. A senior field technician is troubleshooting a loop detector system where the detector
amplifier channel continuously exhibits a "fast pulse" or lock-up condition. The technician
disconnects the lead-in cable from the amplifier terminal strip, and the fault immediately
clears. What does this specific diagnostic result indicate?
A. The detector amplifier unit has an internal power supply filtering failure.
B. The fault lies within the field installation, specifically a short circuit, ground fault, or damaged
wire loop in the pavement.
C. The cabinet ground bus bar is improperly bonded to earth ground.
D. The alternating current mains supply voltage is sagging below acceptable operational limits.
Disconnecting the field wiring from the amplifier isolates the internal electronics from the
external circuit. If the fault clears upon disconnection, the malfunction resides in the field
loop or lead-in cable rather than the amplifier itself._
5. When evaluating an intersection for compliance with the Manual on Uniform Traffic
Control Devices (MUTCD) regarding yellow change and red clearance intervals, a
, technician must ensure that Standard engineering formulas for calculating yellow change
intervals specifically incorporate driver perception-reaction time (typically 1.0 second),
approach speed, and comfortable deceleration rates to ensure safe stopping distance before
entering the intersection._
the yellow change interval is based on which of the following combined engineering
parameters?
A. Traffic volume counts, heavy vehicle percentage, and pedestrian walking speed.
B. Approach speed (such as 85th percentile speed or posted speed limit), perception-reaction time,
and deceleration rate on a level grade.
C. Intersection width, number of approach lanes, and cabinet controller firmware version.
D. Right-turn-on-red prohibition schedules and peak hour factor values.
6. A technician measures the loop inductance of a newly saw-cut inductive loop installation
and finds the total inductance is 45 microhenries (uH). The connected detector amplifier
specifies an acceptable operating inductance range of 100 uH to 700 uH. What is the
correct corrective measure to bring the circuit into operational specification?
A. Increase the lead-in cable length or add a series loop-tuning interface device to increase total
circuit inductance.
B. Decrease the detector amplifier operating frequency channel to the lowest setting.
C. Remove turns from the saw-cut loop in the pavement until inductance drops below 30 uH.
D. Install a higher capacity conflict monitor unit with adjustable loop threshold settings.
When loop inductance falls below the minimum manufacturer requirement of the detector
amplifier, the circuit cannot reliably tune or detect vehicles. Adding turns of wire in the
saw-cut or using additional lead-in cable increases total inductance into the acceptable
operating range._
7. During a lightning storm, a traffic signal cabinet suffers a power surge, resulting in the
failure of the flasher unit and the solid-state load switches. Upon inspection, the technician
discovers that the cabinet surge protection device (SPD) indicator lights are unlit. What is
the proper sequence of corrective action?
A. Replace the load switches and flasher unit immediately without replacing the surge protection device,
as SPDs are self-resetting.
B. Isolate incoming power, replace the damaged solid-state load switches and flasher unit, and
replace the sacrificial surge protection device module, ensuring proper low-impedance earth
ground bonding.
CERTIFICATION EXAM – QUESTIONS AND ANSWERS |
VERIFIED AND WELL DETAILED ANSWERS PLUS RATIONALES |
GUARANTEED PASS | LATEST EXAM UPDATE | EXAM PREP |
STUDY GUIDE | PRACTICE TEST| DOWNLOAD INSTANT PDF
1. A technician is configuring a type 170E controller assembly utilizing a standard 332
cabinet at a complex diamond interchange. During startup diagnostics, the conflict monitor
unit (CMU) fails to enter normal operation and displays a diagnostic fault code indicating a
maladjusted monitoring window. Which of the following actions should the technician
perform first according to standard operational safety protocols?
A. Immediately bypass the conflict monitor unit using a jumper harness to maintain critical intersection
clearance times during peak traffic hours.
B. Verify that all cabinet field monitoring inputs, alternating current line voltage references, and
AC+ power supply thresholds match the programmed CMU configuration card settings.
C. Replace the entire cabinet input file assembly and optical isolators without checking individual
channel programming pins.
D. Disconnect the cabinet transient voltage surge suppressor to eliminate potential ground loop
interference on the monitoring lines.
The conflict monitor unit relies on precise voltage and timing thresholds established by its
programming card and AC reference inputs. Verifying these inputs and settings directly
addresses the root cause of monitoring window errors while maintaining required safety
compliance, whereas bypassing safety monitors violates fundamental traffic engineering
safety standards._
2. During a routine preventive maintenance inspection of an intersection utilizing loop
detectors, a technician notices erratic call dropping on Phase 2 during heavy rainfall.
Megohmmeter testing of the loop lead-in cable yields a reading of 85,000 ohms to earth
ground. What is the appropriate diagnostic conclusion and corrective action?
A. The megohm reading is within acceptable operational tolerance; no action is required until complete
failure occurs.
B. The lead-in cable has experienced insulation degradation or moisture intrusion, and the circuit
must be isolated, spliced, or replaced to restore proper inductance detection.
C. The detector amplifier sensitivity setting should be increased to maximum to compensate for the low
resistance path.
, D. The detector amplifier loop channel should be swapped with an adjacent phase to shift the grounding
fault to a less critical movement.
An insulation resistance reading below 100 megohms (in this case 85k ohms) indicates a
breakdown in wire insulation or moisture intrusion within the loop seal or lead-in cable,
which shunts signal currents and causes erratic vehicle detection. Increasing sensitivity or
swapping channels fails to correct the underlying physical failure._
3. An arterial corridor operating under a coordinated traffic signal system is experiencing
excessive platoon dispersion and high stops during off-peak periods due to overly rigid
cycle lengths. The agency decides to implement time-of-day plan scheduling adjustments.
Which parameter is most critical to recalculate to maintain optimal bandwidth and
progression efficiency?
A. Pedestrian clearance intervals for minor side street movements.
B. Split distribution percentages based on updated turning movement counts and offset timing
relationships between adjacent intersections.
C. Conflict monitor minimum yellow change interval durations.
D. Cabinet battery backup inverter load transfer thresholds.
Coordinated signal systems rely on precise splits and offsets to move vehicle platoons
through successive intersections smoothly. Adjusting splits to reflect current turning
volumes and recalculating offsets ensures minimal stops along the corridor, whereas
pedestrian clearances and monitor settings do not directly impact progression bandwidth._
4. A senior field technician is troubleshooting a loop detector system where the detector
amplifier channel continuously exhibits a "fast pulse" or lock-up condition. The technician
disconnects the lead-in cable from the amplifier terminal strip, and the fault immediately
clears. What does this specific diagnostic result indicate?
A. The detector amplifier unit has an internal power supply filtering failure.
B. The fault lies within the field installation, specifically a short circuit, ground fault, or damaged
wire loop in the pavement.
C. The cabinet ground bus bar is improperly bonded to earth ground.
D. The alternating current mains supply voltage is sagging below acceptable operational limits.
Disconnecting the field wiring from the amplifier isolates the internal electronics from the
external circuit. If the fault clears upon disconnection, the malfunction resides in the field
loop or lead-in cable rather than the amplifier itself._
5. When evaluating an intersection for compliance with the Manual on Uniform Traffic
Control Devices (MUTCD) regarding yellow change and red clearance intervals, a
, technician must ensure that Standard engineering formulas for calculating yellow change
intervals specifically incorporate driver perception-reaction time (typically 1.0 second),
approach speed, and comfortable deceleration rates to ensure safe stopping distance before
entering the intersection._
the yellow change interval is based on which of the following combined engineering
parameters?
A. Traffic volume counts, heavy vehicle percentage, and pedestrian walking speed.
B. Approach speed (such as 85th percentile speed or posted speed limit), perception-reaction time,
and deceleration rate on a level grade.
C. Intersection width, number of approach lanes, and cabinet controller firmware version.
D. Right-turn-on-red prohibition schedules and peak hour factor values.
6. A technician measures the loop inductance of a newly saw-cut inductive loop installation
and finds the total inductance is 45 microhenries (uH). The connected detector amplifier
specifies an acceptable operating inductance range of 100 uH to 700 uH. What is the
correct corrective measure to bring the circuit into operational specification?
A. Increase the lead-in cable length or add a series loop-tuning interface device to increase total
circuit inductance.
B. Decrease the detector amplifier operating frequency channel to the lowest setting.
C. Remove turns from the saw-cut loop in the pavement until inductance drops below 30 uH.
D. Install a higher capacity conflict monitor unit with adjustable loop threshold settings.
When loop inductance falls below the minimum manufacturer requirement of the detector
amplifier, the circuit cannot reliably tune or detect vehicles. Adding turns of wire in the
saw-cut or using additional lead-in cable increases total inductance into the acceptable
operating range._
7. During a lightning storm, a traffic signal cabinet suffers a power surge, resulting in the
failure of the flasher unit and the solid-state load switches. Upon inspection, the technician
discovers that the cabinet surge protection device (SPD) indicator lights are unlit. What is
the proper sequence of corrective action?
A. Replace the load switches and flasher unit immediately without replacing the surge protection device,
as SPDs are self-resetting.
B. Isolate incoming power, replace the damaged solid-state load switches and flasher unit, and
replace the sacrificial surge protection device module, ensuring proper low-impedance earth
ground bonding.
