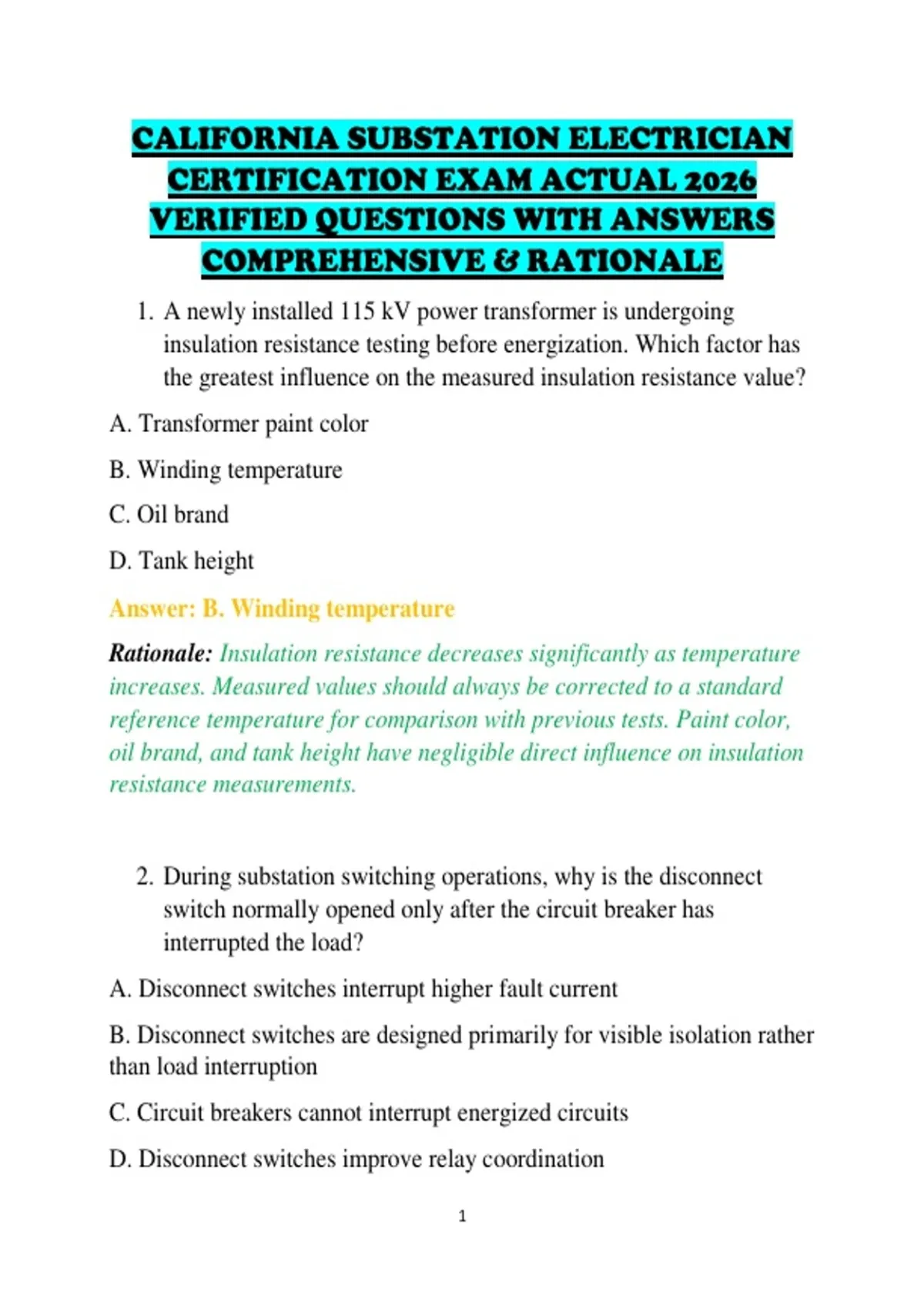

CALIFORNIA SUBSTATION ELECTRICIAN
CERTIFICATION EXAM ACTUAL 2026
VERIFIED QUESTIONS WITH ANSWERS
COMPREHENSIVE & RATIONALE
1. A newly installed 115 kV power transformer is undergoing
insulation resistance testing before energization. Which factor has
the greatest influence on the measured insulation resistance value?
A. Transformer paint color
B. Winding temperature
C. Oil brand
D. Tank height
Answer: B. Winding temperature
Rationale: Insulation resistance decreases significantly as temperature
increases. Measured values should always be corrected to a standard
reference temperature for comparison with previous tests. Paint color,
oil brand, and tank height have negligible direct influence on insulation
resistance measurements.
2. During substation switching operations, why is the disconnect
switch normally opened only after the circuit breaker has
interrupted the load?
A. Disconnect switches interrupt higher fault current
B. Disconnect switches are designed primarily for visible isolation rather
than load interruption
C. Circuit breakers cannot interrupt energized circuits
D. Disconnect switches improve relay coordination
1
,Answer: B. Disconnect switches are designed primarily for visible
isolation rather than load interruption
Rationale: Disconnect switches generally lack arc-extinguishing
capability and are intended to provide visible isolation after current has
been interrupted by the circuit breaker.
3. Which gas is primarily responsible for arc extinction in an SF6
circuit breaker?
A. Nitrogen
B. Oxygen
C. Sulfur hexafluoride
D. Carbon dioxide
Answer: C. Sulfur hexafluoride
Rationale: SF6 possesses exceptional dielectric strength and thermal
conductivity, allowing rapid deionization of the arc path and efficient
interruption of high fault currents.
4. A current transformer rated 1200:5 supplies protective relays. If
the primary current is 960 A, the relay receives approximately:
A. 2 A
B. 4 A
C. 5 A
D. 6 A
Answer: B. 4 A
2
,Rationale: CT ratio = 1200/5 = 240:1. Secondary current equals 960 ÷
240 = 4 A.
5. Why should a current transformer secondary never be opened
while the primary is energized?
A. The CT will trip immediately
B. Dangerous high voltage can develop across the secondary
C. Oil pressure increases
D. Frequency changes
Answer: B. Dangerous high voltage can develop across the
secondary
Rationale: An open CT secondary allows magnetic flux to increase
dramatically, inducing hazardous voltages capable of damaging
equipment and injuring personnel.
6. The principal purpose of station grounding grids is to:
A. Improve lighting
B. Reduce step and touch potential
C. Increase transformer efficiency
D. Lower transmission losses
Answer: B. Reduce step and touch potential
Rationale: Ground grids equalize earth potential gradients, reducing
dangerous voltages experienced by workers during fault conditions.
3
, 7. Which relay primarily protects transformers against internal
winding faults?
A. Overfrequency relay
B. Differential relay
C. Reverse power relay
D. Distance relay
Answer: B. Differential relay
Rationale: Differential relays compare currents entering and leaving
transformer windings. Any significant difference indicates an internal
fault.
8. Which insulation class generally provides the highest continuous
operating temperature?
A. Class A
B. Class B
C. Class F
D. Class H
Answer: D. Class H
Rationale: Class H insulation is typically rated for continuous operation
up to approximately 180°C.
9. Why are surge arresters installed near transformers?
A. Increase voltage
B. Limit transient overvoltages
C. Reduce frequency
4
