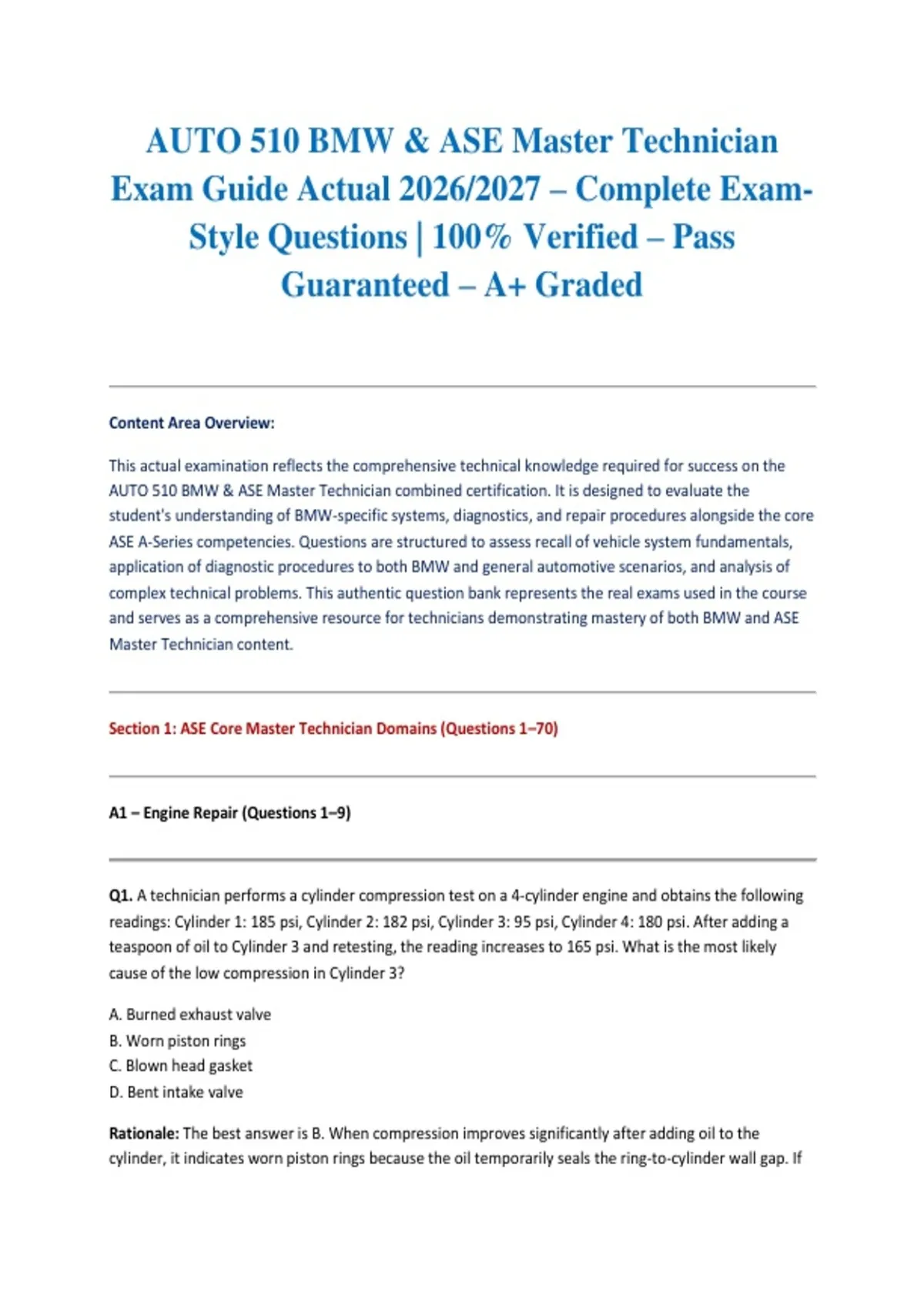

AUTO 510 BMW & ASE Master Technician
Exam Guide Actual 2026/2027 – Complete Exam-
Style Questions | 100% Verified – Pass
Guaranteed – A+ Graded
Content Area Overview:
This actual examination reflects the comprehensive technical knowledge required for success on the
AUTO 510 BMW & ASE Master Technician combined certification. It is designed to evaluate the
student's understanding of BMW-specific systems, diagnostics, and repair procedures alongside the core
ASE A-Series competencies. Questions are structured to assess recall of vehicle system fundamentals,
application of diagnostic procedures to both BMW and general automotive scenarios, and analysis of
complex technical problems. This authentic question bank represents the real exams used in the course
and serves as a comprehensive resource for technicians demonstrating mastery of both BMW and ASE
Master Technician content.
Section 1: ASE Core Master Technician Domains (Questions 1–70)
A1 – Engine Repair (Questions 1–9)
Q1. A technician performs a cylinder compression test on a 4-cylinder engine and obtains the following
readings: Cylinder 1: 185 psi, Cylinder 2: 182 psi, Cylinder 3: 95 psi, Cylinder 4: 180 psi. After adding a
teaspoon of oil to Cylinder 3 and retesting, the reading increases to 165 psi. What is the most likely
cause of the low compression in Cylinder 3?
A. Burned exhaust valve
B. Worn piston rings
C. Blown head gasket
D. Bent intake valve
Rationale: The best answer is B. When compression improves significantly after adding oil to the
cylinder, it indicates worn piston rings because the oil temporarily seals the ring-to-cylinder wall gap. If
,the compression had stayed low after adding oil, it would point to a valve problem (intake or exhaust). A
blown head gasket typically causes adjacent cylinders to have equally low compression or coolant
contamination in the oil.
Correct Answer: B
Q2. A BMW N20 engine exhibits excessive oil consumption and blue smoke from the exhaust at startup.
The technician suspects valve stem seal failure. Which diagnostic procedure best confirms this
condition?
A. Perform a wet compression test
B. Perform a cylinder leak-down test with the piston at TDC on the compression stroke and observe for
bubbles in the radiator
C. Remove the spark plugs and inspect for oil fouling, then perform a running compression test
D. Perform a cylinder leak-down test and listen for air escaping through the oil fill cap
Rationale: The best answer is D. When valve stem seals leak, pressurized air from a leak-down test will
escape past the worn seals into the valve cover and out the oil fill cap or PCV system. Blue smoke at
startup specifically indicates oil draining past worn valve stem seals into the combustion chamber while
the engine is shut off. A wet compression test won't help here, and radiator bubbles indicate a head
gasket issue.
Correct Answer: D
Q3. A direct injection (GDI) engine develops carbon buildup on the intake valves. The technician should
understand that this occurs because:
A. GDI engines spray fuel directly into the intake port, washing the valves clean
B. GDI engines spray fuel directly into the combustion chamber, so there is no fuel washing over the
intake valves to keep them clean
C. GDI engines use lower quality fuel
D. GDI engines have weaker valve springs
Rationale: The best answer is B. In port fuel injection systems, fuel sprays over the intake valves, which
naturally cleans off oil vapors and carbon deposits. In GDI engines, fuel sprays directly into the cylinder,
so the intake valves receive no fuel wash. Oil vapors from the PCV system and EGR gases deposit on the
valves, causing carbon buildup over time. This is why walnut shell blasting or chemical induction
cleaning is necessary on GDI engines.
Correct Answer: B
,Q4. A technician is diagnosing a variable valve timing (VVT) system fault on a BMW N55 engine. The DTC
indicates an intake camshaft position over-advanced condition. Which component should be checked
first?
A. The exhaust VVT solenoid
B. The intake VVT solenoid and oil control valve for proper operation and oil flow
C. The crankshaft position sensor
D. The oxygen sensors
Rationale: The best answer is B. An over-advanced intake camshaft position indicates the VVT system is
commanding or allowing too much advance. The intake VVT solenoid (also called the oil control valve)
regulates oil pressure to the phaser, and if it's stuck open, contaminated, or receiving incorrect PWM
signals, it can cause over-advance. The solenoid should be tested for proper resistance, activation, and
oil flow before replacing the phaser itself.
Correct Answer: B
Q5. A cylinder head is being inspected for warpage. The maximum allowable warpage specification is
0.002 inches. The technician measures 0.004 inches across the deck surface. What is the correct repair
procedure?
A. The head can be reused without any machining
B. The head must be resurfaced or replaced to restore proper sealing surface
C. Apply additional gasket sealant and reinstall
D. Torque the head bolts to a higher specification
Rationale: The best answer is B. Cylinder head warpage beyond specification will prevent proper head
gasket sealing, leading to compression loss, coolant leaks, and potential head gasket failure. Resurfacing
the deck surface on a milling machine restores the flatness needed for the MLS (multi-layer steel) head
gasket to seal properly. Simply adding sealant or over-torquing will not compensate for an uneven
surface and can cause further damage.
Correct Answer: B
Q6. During an engine teardown, the technician notices scoring on the cylinder walls with vertical
scratches. The most likely cause is:
A. Normal wear from piston ring contact
B. Foreign object ingestion or lubrication failure causing piston skirt contact with the cylinder wall
C. Rich fuel mixture
D. Proper break-in procedure
, Rationale: The best answer is B. Vertical scoring or scratching on cylinder walls indicates abnormal
contact between the piston skirt and the cylinder bore, typically caused by foreign object ingestion
(dust, debris, broken ring pieces) or lubrication failure that removes the oil film protecting the surfaces.
Normal ring wear creates a smooth crosshatch pattern, not deep vertical scratches. Rich mixtures cause
carbon buildup, not wall scoring.
Correct Answer: B
Q7. A technician is replacing a timing chain on a BMW N20 engine. Which special tool is required to
properly lock the camshafts during this procedure?
A. A standard open-end wrench
B. BMW-specific camshaft locking fixtures that align with the machined flats on the camshafts
C. A torque wrench only
D. A pry bar to hold the chain tension
Rationale: The best answer is B. BMW engines require manufacturer-specific camshaft locking fixtures
that engage precisely machined flats on the camshafts to maintain correct timing during chain service.
Using improper tools can allow the camshafts to rotate, resulting in valve-to-piston contact and
catastrophic engine damage on interference engines. The N20 is an interference design, making proper
camshaft locking absolutely critical.
Correct Answer: B
Q8. An engine has low oil pressure at idle but normal pressure at higher RPM. The most likely cause is:
A. A faulty oil pressure sender
B. Excessive bearing clearances or a worn oil pump pressure relief valve
C. The wrong viscosity oil
D. A clogged oil filter
Rationale: The best answer is B. Low oil pressure at idle with normal pressure at higher RPM typically
indicates excessive bearing clearances (rod, main, or cam bearings) that allow too much oil flow at low
pressure, or a worn oil pump relief valve that bleeds off pressure. At higher RPM, the pump generates
more volume, overcoming the leakage. A clogged filter would reduce pressure at all RPMs, and wrong
viscosity oil usually affects both hot and cold pressure differently.
Correct Answer: B
