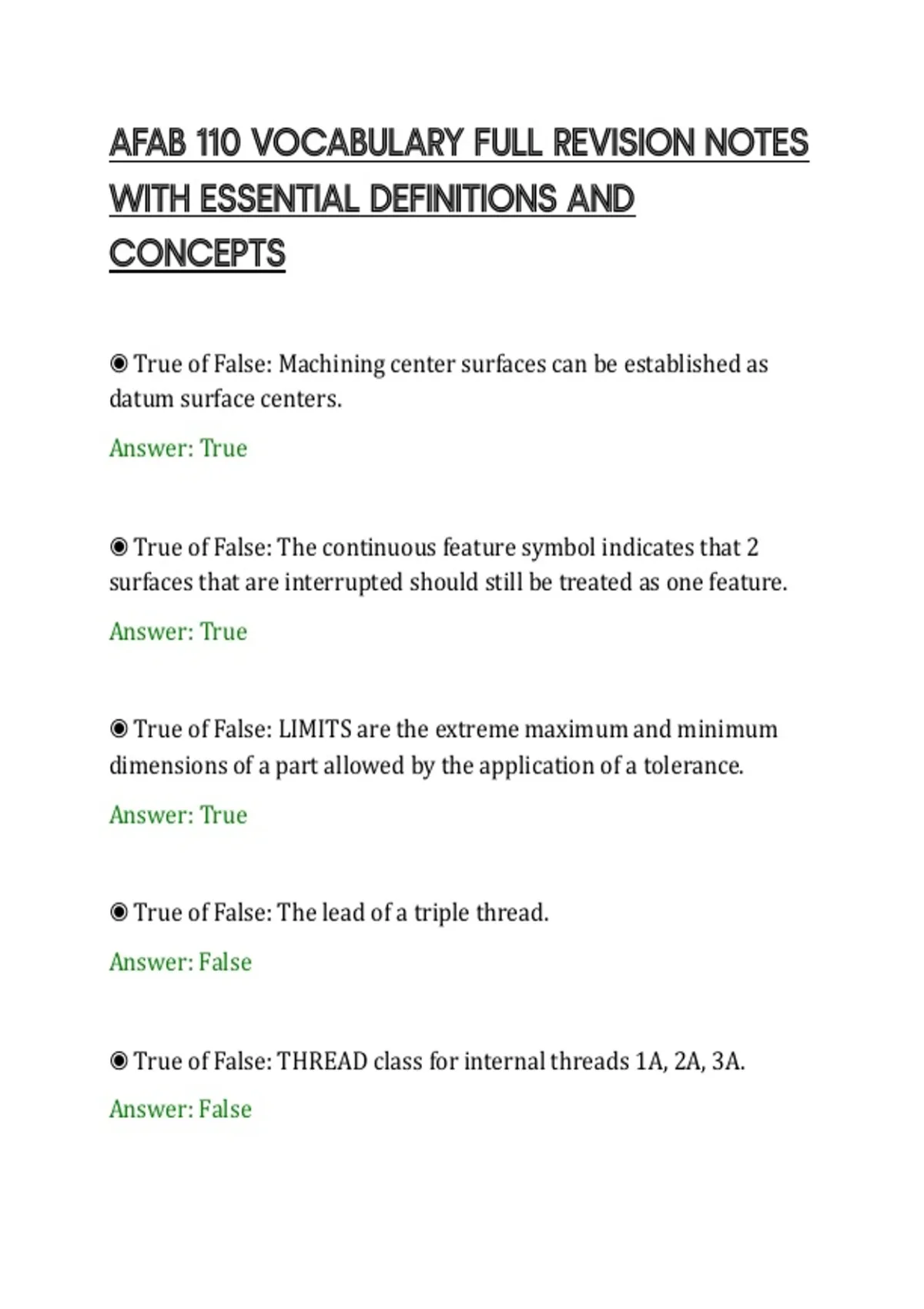

AFAB 110 VOCABULARY FULL REVISION NOTES WITH ESSENTIAL DEFINITIONS AND CONCEPTS

AFAB 110 VOCABULARY FULL REVISION NOTES
WITH ESSENTIAL DEFINITIONS AND
CONCEPTS

◉ True of False: Machining center surfaces can be established as
datum surface centers.
Answer: True


◉ True of False: The continuous feature symbol indicates that 2
surfaces that are interrupted should still be treated as one feature.
Answer: True


◉ True of False: LIMITS are the extreme maximum and minimum
dimensions of a part allowed by the application of a tolerance.
Answer: True


◉ True of False: The lead of a triple thread.
Answer: False


◉ True of False: THREAD class for internal threads 1A, 2A, 3A.
Answer: False

, ◉ True of False: Metric threads appear identical to inch threads on a
print.
Answer: True


◉ True of False: ANY view projected from the front view would
show depth.
Answer: True


◉ True of False: In the past many cad output devices capable of
printing something about vectors.
Answer: False


◉ True of False: Unless lowercase lettering is specifically required
lettering must always be uppercase.
Answer: True


◉ True of False: Engineering drawing created by hand use a font
called gothic double stroke lettering.
Answer: False


◉ True of False: Standards for sheet sizes title blocks and associated
lists are all covered in one ASME standard.
Answer: False
