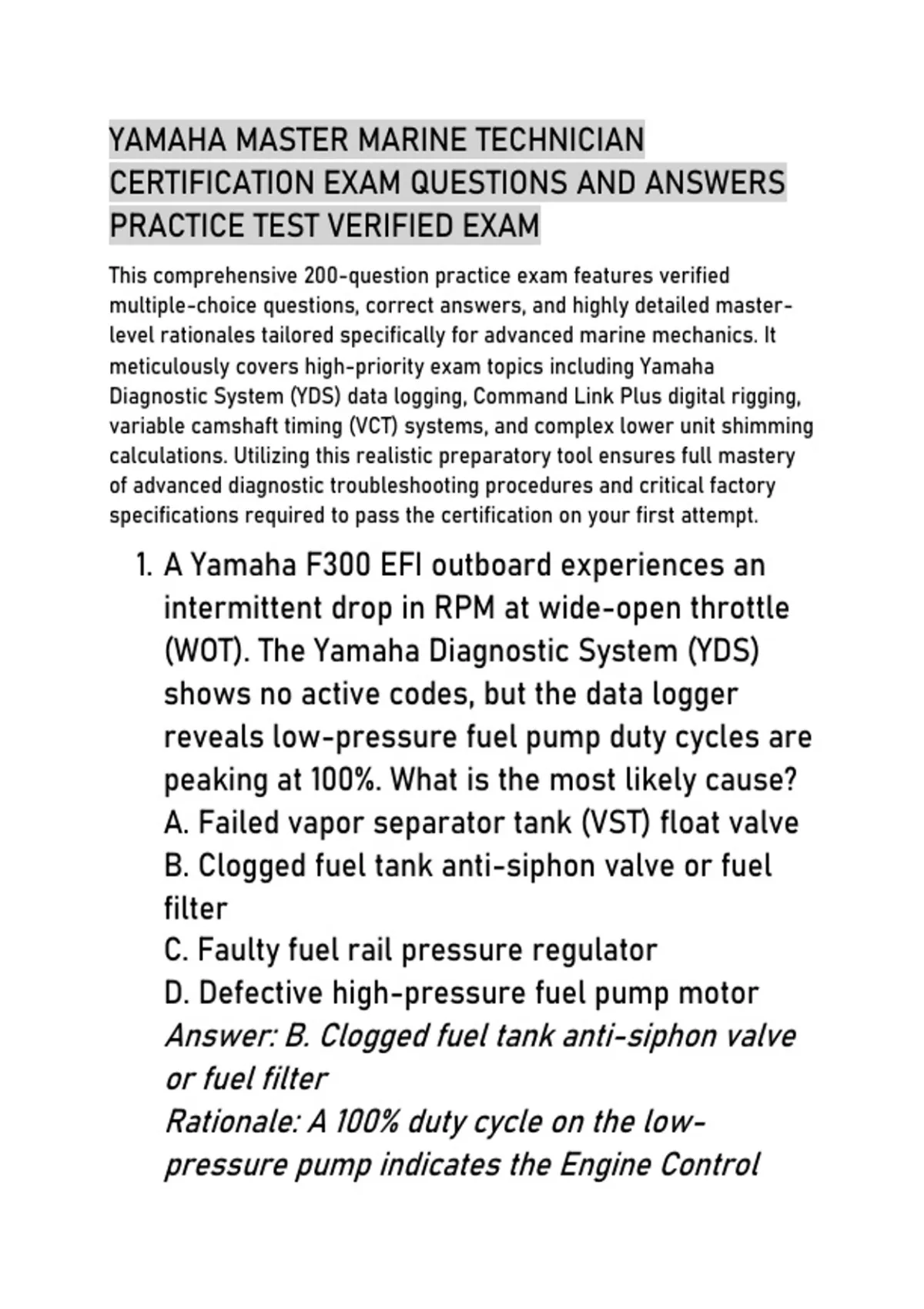

YAMAHA MASTER MARINE TECHNICIAN
CERTIFICATION EXAM QUESTIONS AND ANSWERS
PRACTICE TEST VERIFIED EXAM
This comprehensive 200-question practice exam features verified
multiple-choice questions, correct answers, and highly detailed master-
level rationales tailored specifically for advanced marine mechanics. It
meticulously covers high-priority exam topics including Yamaha
Diagnostic System (YDS) data logging, Command Link Plus digital rigging,
variable camshaft timing (VCT) systems, and complex lower unit shimming
calculations. Utilizing this realistic preparatory tool ensures full mastery
of advanced diagnostic troubleshooting procedures and critical factory
specifications required to pass the certification on your first attempt.
1. A Yamaha F300 EFI outboard experiences an
intermittent drop in RPM at wide-open throttle
(WOT). The Yamaha Diagnostic System (YDS)
shows no active codes, but the data logger
reveals low-pressure fuel pump duty cycles are
peaking at 100%. What is the most likely cause?
A. Failed vapor separator tank (VST) float valve
B. Clogged fuel tank anti-siphon valve or fuel
filter
C. Faulty fuel rail pressure regulator
D. Defective high-pressure fuel pump motor
Answer: B. Clogged fuel tank anti-siphon valve
or fuel filter
Rationale: A 100% duty cycle on the low-
pressure pump indicates the Engine Control
, Module (ECM) is maximizing pump effort to
compensate for a fuel supply restriction
upstream of the VST.
2. When measuring the shim thickness for a
Yamaha lower unit forward gear, which
specialized tool configuration provides the most
accurate depth measurement?
A. Standard digital calipers from the housing
edge
B. A dial indicator mounted on a universal
magnetic base
C. A Yamaha specialized shimming gauge with a
digital depth micrometer
D. A plastigage strip compressed between the
housing halves
Answer: C. A Yamaha specialized shimming
gauge with a digital depth micrometer
Rationale: Master-level shimming requires
precise mechanical gauges specified by Yamaha
to isolate backlash and pinion height accurately
within thousandths of an inch.
3. A technician encounters a "Comm Error" on a
Command Link Plus (CLP) display screen. The
bus voltage at the multi-hub reads 8.2 Volts DC.
, What does this voltage reading indicate?
A. Normal operating voltage for the CLP data
bus
B. A short-to-ground in the main accessory
battery circuit
C. Excessive resistance or a missing
terminating resistor in the network
D. A complete failure of the internal Engine
Control Module voltage regulator
Answer: C. Excessive resistance or a missing
terminating resistor in the network
Rationale: Command Link and CLP networks
operate on a 12V DC system base; a drop to 8.2V
points directly to excessive resistance or a
missing/damaged 60-ohm terminating resistor
sagging the bus voltage.
4. During a cylinder leak-down test on a Yamaha
F150, a 25% leakage rate is detected on cylinder
number 3. Air is clearly heard escaping from
the oil filler neck. What is the diagnosis?
A. Worn exhaust valve guides
B. Blown cylinder head gasket
C. Damaged intake valve seat
D. Worn or stuck piston rings
, Answer: D. Worn or stuck piston rings
Rationale: Air escaping into the oil filler neck
confirms that compression pressure is
bypassing the piston assemblies into the
crankcase, pointing to rings.
5. What is the correct sequence for adjusting the
mechanical throttle valves on a multi-throttle
body Yamaha 4-stroke outboard?
A. Adjust the idle stop screw first, then
synchronize the linkage screws using a vacuum
gauge setup
B. Adjust the bypass air valves completely
closed, then back off the main linkage
C. Sync the linkage screws to a master cylinder
cylinder, then verify zero voltage on the TPS
D. Adjust the throttle position sensor first, then
adjust the mechanical sync
Answer: A. Adjust the idle stop screw first, then
synchronize the linkage screws using a vacuum
gauge setup
Rationale: Mechanical synchronization must
always establish the base master idle stop
position prior to balancing individual butterfly
